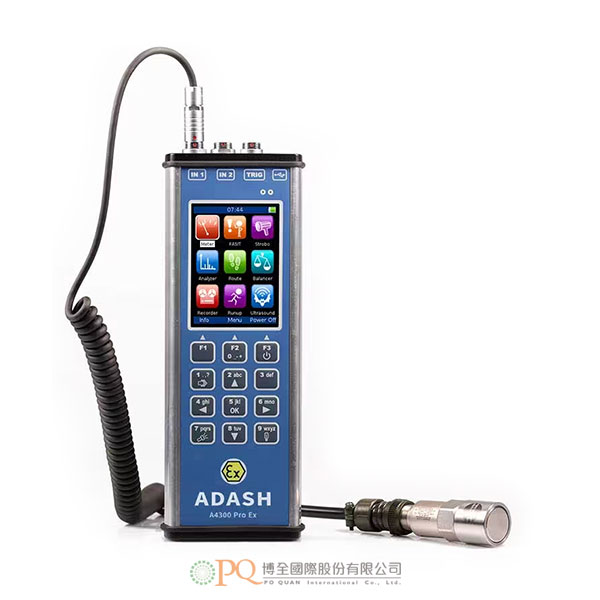

A4300 VA3 Pro Ex 三通道振動分析儀

A4300 VA3 Pro Ex 是Adash用於振動診斷和平衡試驗( 動平衡 )的可攜式設備系列中的最新產品。

有2個信號輸入和1個轉速計/觸發器輸入。輸入 2 提供與三軸感測器的連接，因此所有 三個通道可以同時測量。Adash開發的專家系統可以自動檢測機器故障，如不平衡、鬆動、未對準和軸承故障。同時 ，配備一個非接觸式 紅外線溫度感測器（用於立即測量軸承溫度）和一個 LED 閃頻儀/手電筒。

A4300 VA3 Pro Ex是為單手操作而設計的。該裝置的重量僅為760克，電池的工作時間超過6小時，適合於長距離的路徑測量。A4300 VA3 Pro Ex 可根據您的要求通過選擇選購功能進行配置：如分析器、路徑、平衡器( 動平衡 )、記錄器、啟動分析或超音波。未來，選購功能也可以另外購買，並下載到儀器上，而不需要送回工廠。
訪問Adash官網，查看更多可靠性設備。


選購功能

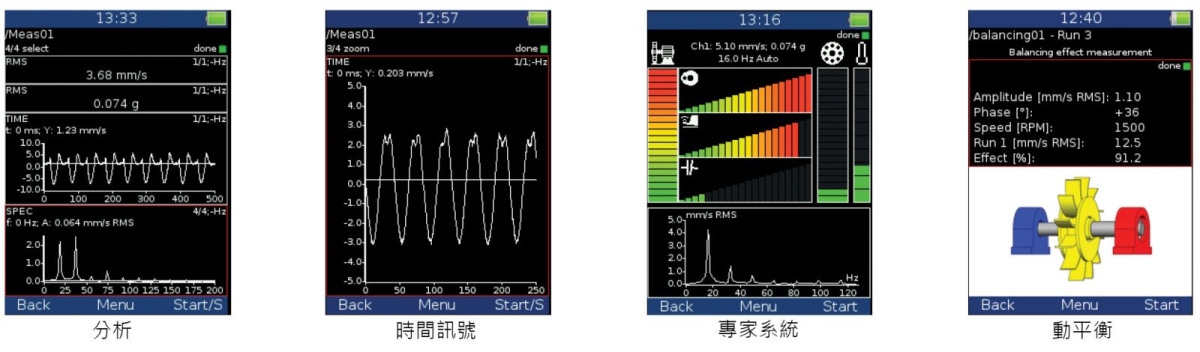

測量功能

The A4300 VA3 Pro Ex is the newest addition to our range of portable devices for vibration diagnostics and machine balancing.

There are 2 signal inputs and 1 tacho/trigger input. Input 2 offers connectivity to a triaxial sensor, therefore all 3 channels can be measured simultaneously. The expert system developed by Adash can automatically detect machine faults such as unbalance, looseness, misalignment and bearing faults.There is a non-contact IR temperature sensor (for immediate bearing temperature measurement) and a LED stroboscope/torch.

The A4300 VA3 Pro Ex is designed for one- handed operation. With a weight of just 760g and a battery life of more than 6 hours of operation, the unit is suitable for long route measurements.The A4300 VA3 Pro Ex instrument can be confi gured according to your requirements by choosing optional modules: analyzer, route, balancer, recorder, run up or ultrasound. Optional modules can be purchased also additionally anddownloaded to the instrument without the need of sending it back to the factory.
Please see more at www.adash.com and come back to us for further assistance with your purchase.


Optional Function

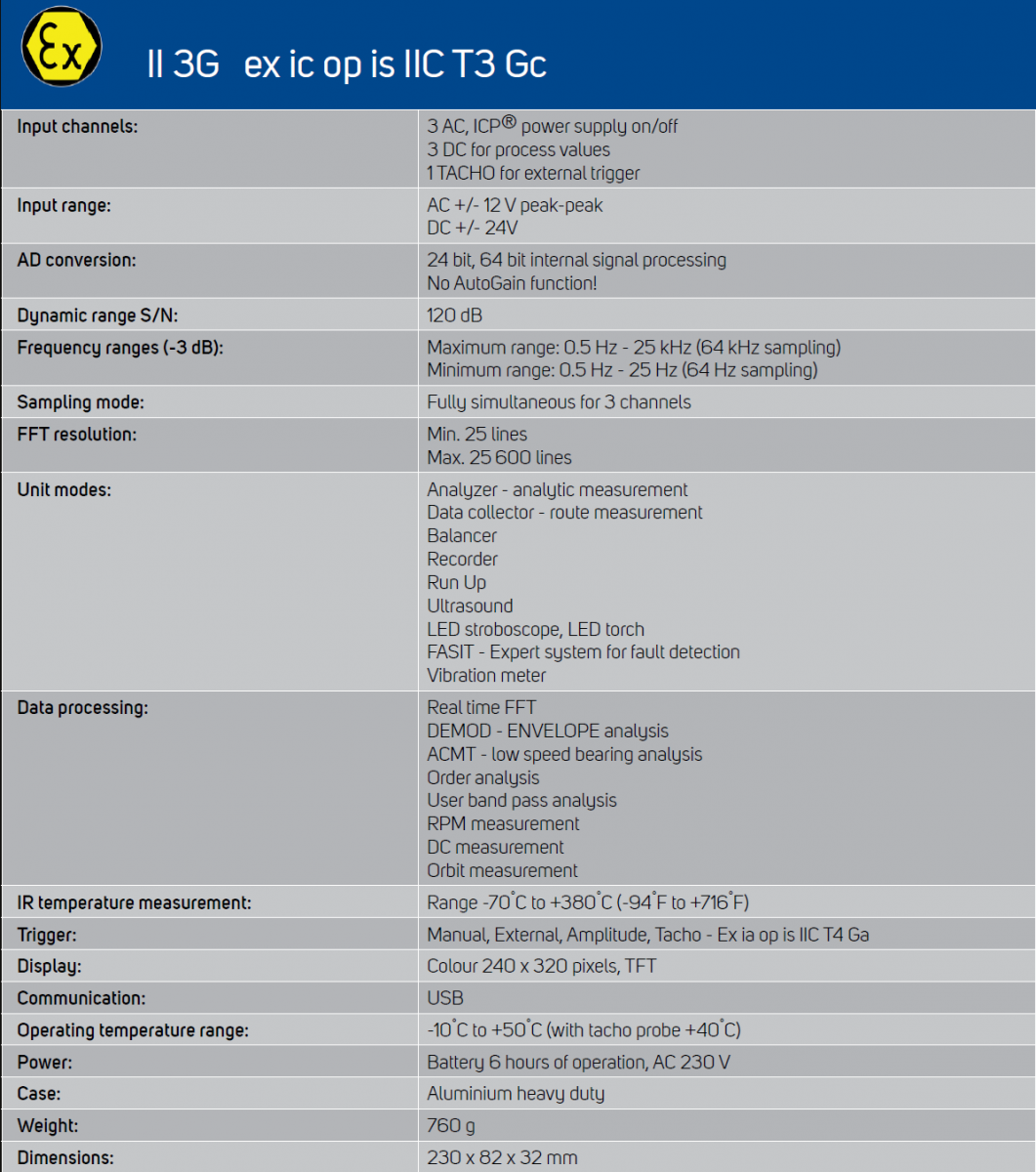

MEASUREMENTS
