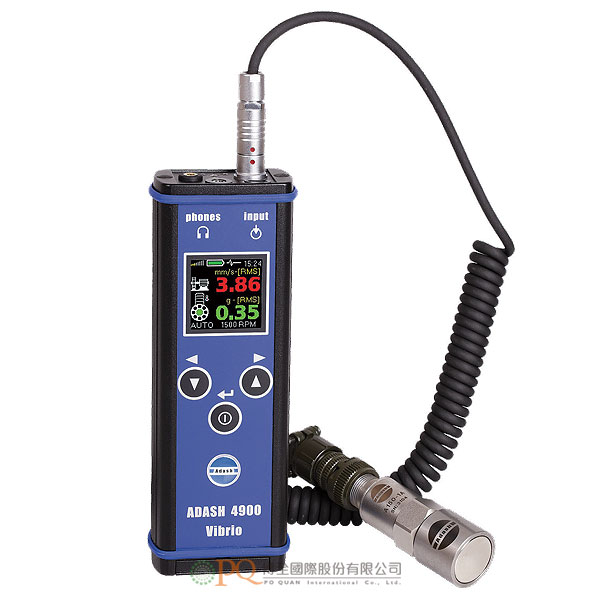

A4900 Vibrio M 振動分析儀

型號:A4900 Vibrio M
  • 介面簡單操作
  • 優質工業設計產品
  • 高品質製作
  • 結實的盤型電纜
  • 擁有強磁力磁座
  • A4900  Vibrio M 振動分析儀可以執行所有基本的振動診斷測量,例如軸承狀況、機械故障識別和潤滑狀況評估。
    A4900 Vibrio M 配備了4MB記憶體,可用於資料存取。並且可以進行離線和路徑測量。 Vibrio M的專業軟體DDS可以從Adash網站免費下載。
    用於自動設備故障檢測的專家系統當然也包括在內。
    訪問Adash官網,查看更多可靠性設備。


    單操作

    • 三鍵操作
    • 所有功能預定義
    • 故障檢測專家系統
    • 彩色圖形顯示


    頂部面板

    •  加速度感測器輸入
    • 非接觸式紅外測溫感測器›  LED頻閃儀
    • 聽筒輸出Micro USB介面用於資料傳輸


    業設計

    • 重型鋁制外殼
    • 2AA可充電或AA鹼性電池
    • 8小時連續運行




  • 輸入

    1 x ICP® 加速度感測器

    輸入範圍

    標準100 mV/g感測器時為60g峰值
    (10 mV/g 感測器時為600g峰值,靈敏度可編輯)

    測量

    速度有效值:10 - 1 000 Hz [mm/s, ips]
    速度峰值:10 - 1 000 Hz [mm/s, ips]
    加速度有效值:500 - 16 000 Hz [g]
    加速度峰值:500 - 16 000 Hz [g]
    速度時域波形:1 - 1 000 Hz [mm/s, ips], 2048點 *
    速度頻譜:1 - 1 000 Hz [mm/s, ips], 800線
    加速度時域波形:1 - 16 000 Hz [g], 2048點*
    加速度頻譜:1 - 16 000 Hz [g], 800線*
    加速度包絡有效值:500 - 16 000 Hz [g]加速度包絡峰值:500 - 16 000 Hz [g]*
    加速度包絡時域波形:500 - 16 000 Hz [g], 2048點
    加速度包絡頻譜:500 - 16 000 Hz [g], 800線, 範圍400 Hz*
    位移有效值:2 - 100 Hz [µm, mil]
    位移峰值:2 - 100 Hz [µm, mil]
    位移峰峰值:2 - 100 Hz [µm, mil]
    非接觸式溫度測量:0 - 380°C (32 - 716°F)

    他功能

    LED 頻閃儀 (0.17-300 Hz, 10 - 18 000 RPM) LED 手電筒
    振動聽診器

    記憶體

    LED 頻閃儀 (0.17-300 Hz, 10 - 18 000 RPM) LED 手電筒
    振動聽診器

    料存取

    非路徑資料
    路徑資料,需結合DDS 軟體(免費下載)

    介面

    USB 2.0相容

    軟體

    免費版DDS軟體

    顯示

    彩色圖形OLED顯示 128x128 圖元,1.5“ (38 mm)

    輸出

    1 x AC信號 8 Ω / 0,5 W ,用於連接耳機(傾聽信號)

    電源

    2 x AA 1.5V電池(鹼性,NiMH,鋰 - 8小時連續運行)

    溫度

    工作溫度:-5°C到55°C

    尺寸

    150 x 60 x 35 mm

    重量

    330 g含電池(不包括電纜、感測器和磁座)
    540 g含電池(包括電纜、感測器和磁座)

    附件

    振動感測器、盤型電纜、磁座、3.5 mm jack接頭的耳機、USB電纜、測量頂針、包裝箱、含操作手冊的優盤

    *包含在DDS軟體內

  • The A4900 - Vibrio M instrument allows you to perform all basic vibro-diagnostics measurements such as bearing condition, identification of mechanical faults and lubrication assessment.
    The A4900 - Vibrio M is equipped with 4MB of memory for data storage. Data memory allows you to perform off-route and route measurements. The professional software DDS for Vibrio M can be downloaded from the Adash website free of charge.
    Our expert system for automatic machine fault detection is included.
    Please see more at www.adash.com and come back to us for further assistance with your purchase.

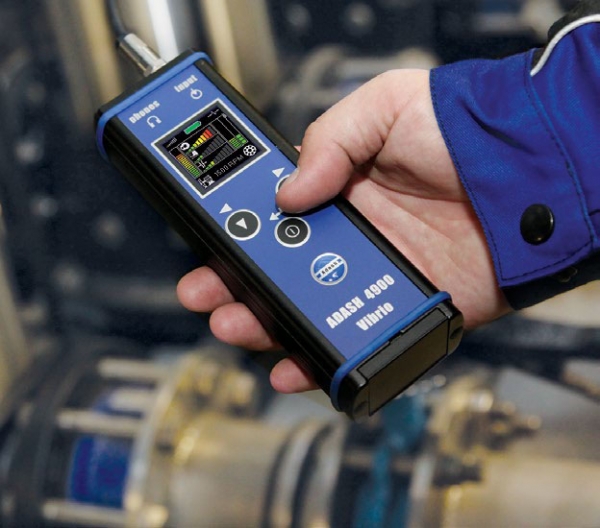

    SIMPLE TO USE

    • Three button operation
    • All functions are predefined › Expert functions for fault detection
    • Colour graphic display

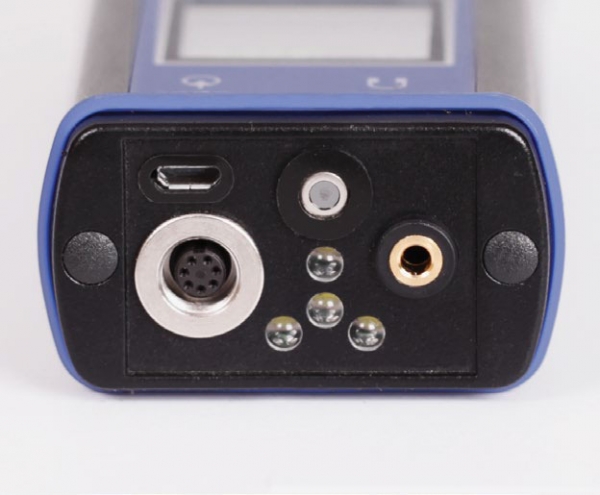

    TOP PANEL

    • ACC ICP® - sensor input › IR non-contact temperature sensor
    • LED stroboscope
    • Stethoscope output
    • Micro USB for data transfer


    INDUSTRIAL DESIGN

    • Heavy-Duty aluminium case
    • 2AA rechargeable or AA alkaline batteries
    • 8 hours of operation




  • Input

    1 x ICP® powered accelerometer

    Input range

    60 g PEAK with standard 100 mV/g sensor
    (e.g. 600 g PEAK for 10 mV/g sensor, the sensitivity is editable in the unit)

    Measurements

    Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
    Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
    Acceleration RMS: 500 - 16 000 Hz [g]
    Acceleration Peak: 500 - 16 000 Hz [g]
    Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples *
    Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
    Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
    Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
    Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
    Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]* Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
    Displacement RMS: 2 - 100 Hz [µm, mil]
    Displacement 0-Peak: 2 - 100 Hz [µm, mil]
    Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
    Temperature non-contact measurement: 0 - 380°C (32 - 716°F)

    Other functions

    LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM) LED torch
    Vibration stethoscope

    Memory

    4 MB for data
    900 measurements of 800 line spectra or 2048 sample time signals may be stored

    Data storing

    Off-Route
    Route with DDS software for Vibrio M (free download)

    Interface

    USB 2.0 compatible

    Software

    Free version of DDS software (limited database size)

    Display

    Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)

    Output

    1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)

    Power

    2 x AA 1.5V batteries (alkaline, NiMH, Lithium - 8 hours of operation)

    Temperature

    Operating: -5°C to 55°C

    Dimensions

    150 x 60 x 35 mm

    Weight

    330 g including batteries (without cable, sensor and  magnet) 540 g including batteries, cable, sensor and magnet

    Accessories

    vibration sensor, coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash disc with the manual

    *available in DDS software for Vibrio
