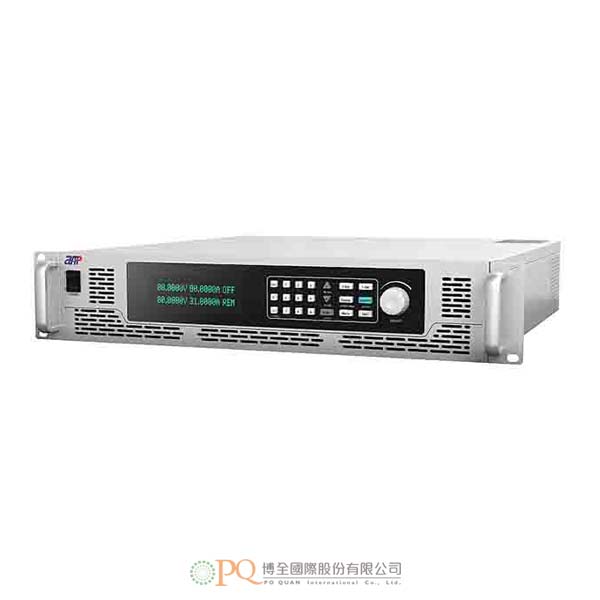

單通道高精度可程式直流電源供應器(2U型)

APM 200VDC series (2U Type) Programmable DC Power Supply 型號:SPS200VDC 1000W|SP200VDC 2000W|SP200VDC 3000W|SP200VDC 4000W
APM 200VDC(2U)系列是開關模式、單通道輸出、高精度的可程式直流電源供應器,提供多款機型選擇。
    • APM 200VDC(2U)系列是開關模式、單通道輸出、高精度的可程式直流電源供應器,提供多款機型選擇。
    • 能提供穩定的直流輸出,內建電壓及電流測量功能,可滿足各種直流電源的應用要求。
    • 應用:
      • 汽車業:適用於汽車電子產品測試,能模擬不同條件下汽車的電壓波形。
      • LED業:適用於LED驅動器及LED產品測試與電源燒機測試。
      • 自動測試領域:可整合在自動測試系統內,以測試電力參數及為待測設備提供電源。
      • 醫療領域:用於醫療設備測試或整合在醫療設備內。
      • 通訊業:用於通訊電源及通訊電子裝置測試。
      • 家電產品:用於家電產品測試。
      • 科研領域:用於科研單位、學院、大學及認證機構的實驗室測試及作為電源。
      • 航空航太領域:用於航空電子產品測試及作為電源。
    • 特點:
      • 精準的電壓與電流測量性能。
      • 編碼式旋鈕及多功能鍵盤。
      • 標準配備RS232/LAN/RS485/USB介面,可選購GPIB介面。
      • 具遠端感測功能,可補償負載導線的電壓降。
      • 獨立的數位電壓錶(DVM)測量功能(選購)。
      • 編輯List波形的功能。
      • 採用可程式儀器標準指令(SCPI)。
      • CE認證。
    • 產品優勢:
      • 高效率:
        • 操作效率達92%,在電路設計中,開關管採用零(0)電壓導體,當電路運行時,降低了設備本身承受的損傷,從而提高整體的效率,同時降低直流電源的溫升速率。相較於市面上其他類似的產品,APM可程式直流電源具有明顯的優勢。
      • 超快的響應速度:
        • APM可程式200VDC電源特有的快速壓降功能,遠遠超越市面上其它類似的產品:

    無載壓升時間

    ≤30ms

    全載壓升時間

    ≤30ms

    無載壓降時間

    ≤500ms

    全載壓降時間

    ≤20ms

    • 數位電壓錶測量功能(選購):
      • APM可程式直流電源內建數位電壓錶獨立測量功能,可測量輸出終端輸出電壓的數值,藉由切換前面板按鈕,可將數值顯示在真空螢光顯示幕(VFD)上。此直流電源也可在實驗室測試中作為外部設備,用於測量電壓數值。
    • 主/從控制:
      • 在主從控制模式中,最多可串聯連接2台及並聯連接10台。
      • 主從控制模式可以實現“一呼百應”的效果。一經設立了主從模式,“SLAVE”即鎖在主介面,並僅僅由“MASTER”控制。當“SLAVE”傳送保護模式信號時,所有的直流電源將關閉及退出主從模式。
    • 簡單的串聯/並聯輸出:
      • 當需要高輸出功率時,可採串聯或並聯模式連接最多10台可程式DC電源供應器,而達到此輸出功率。
    • 串聯模式功能:
      • 200VDC系列支援透過它的RS485介面串聯連接最多31台,而能從一部個人電腦同步控制所有通過RS485連接的DC電源供應器。
  • 機型

    SPS200VDC 1000W、SP200VDC 2000W、SP200VDC 3000W、SP200VDC 4000W

    輸入電壓範圍

    90~265VAC、190~265VAC、190~265VAC、190~265VAC

    輸入頻率範圍

    47~63Hz

    功率因數

    >0.98

    輸入功率

    1300VA(MAX)、2400VA(MAX)、3400VA(MAX)、4500VA(MAX)

    輸出電壓範圍

    0~200V

    輸出電流範圍

    0~24A

    電壓負載調節

    15mV、15mV、15mV、25mV

    電流負載調節

    24mA

    電壓設定精度

    0.1%+15mV

    電流設定精度

    0.1%+24mA

    電壓測量精度

    0.1%+15mV

    電流測量精度

    0.1%+24mA

    電壓漣波

    150mVp-p/30mVrms

    電流漣波

    50mA(滿量程),20mA(典型數值)

    電壓溫度係數

    100ppm/℃

    電流溫度係數

    150ppm/℃

    DVM解析度(選購)

    1mV

    DVM精度(選購)

    0.1%+15mV

    遠端補償

    5V MAX

    負載暫態響應時間

    ≤ 2ms、≤ 3ms、≤ 3ms、≤ 3ms

    指令響應時間

    50ms

    全載效率

    88%、90%、91%、92%

    保護功能

    過壓、過流、過溫、過功率、短路保護

    重量

    13.2kg

    通訊模式

    標準:RS232、RS485、USB、LAN或
    搭配選購:RS232、RS485、USB、LAN、GPIB

    操作環境

    溫度0~40℃,10%~90% RH,無凝露

    • 詳細規格、配件、軟體及選購,歡迎進一步洽詢。
    • 200VDC series product is a switching mode single-channel output high-precision programmable DC power supply. It can meet various demands for the application of DC power supply with stable DC output and built-in voltage & current measurement capability.
    • Areas of Application:
      • Automobile Sector: Used for automobile electronics product testing, and simulation of the voltage waveform of automobile under different conditions.
      • LED Sector: Used for LED driver and LED product testing and burn-in test.
      • Automatic Testing Sector: Can be integrated in automatic testing system to test electricity parameters, and to supply power to the products under testing.
      • Medical Field: Used for medical device testing or it being integrated in medical equipment.
      • Communication Sector: Used for the tests of communication power supply and electronic devices.
      • Household Field: Used for household products test.
      • Scientific Research Sector: Used in scientific research units, colleges & universities, and certification institutions for laboratory testing and power supply.
      • Aerospace Sector: Used for aviation electronic products testing and power supply.
    • Product Features:
      • With accurate voltage and current measurement capability.
      • Coded knobs, multifunctional keyboard.
      • Standard RS232/LAN/RS485/USB interface, GPIB is optional.
      • Remote sensing to compensate for voltage drop in load leads.
      • DVM independent measurement functions.
      • Function of editing List waveform.
      • Use SCPI commands.
      • CE certified.
    • Product Advantages:
    • High efficiency
      • APM programmable 200VDC source has an operating efficiency of up to 92%. In the circuit design, switch tube is using zero (0) voltage conductor and when the circuit is running, the damage inflicted on the device itself is reduced, and subsequently increase the overall efficiency while lowering the rate of temperature rise of the DC source. Compare with other similar types of product in markets, APM Technologies' programmable DC source has an obvious advantage.
    • Ultrafast Respond Time
      • The unique fast drop function makes the response of APM programmable 200VDC source much better than that of any other similar products available on the market.

    No load voltage rise time

    ≤30ms

    Full load voltage rise time

    ≤30ms

    No load voltage drop time

    ≤500ms

    Full load voltage drop time

    ≤20ms

    • DVM measurement function
      • APM programmable DC source's built-in DVM independent measurement function can measure the value of output voltage at the output terminal, and display the value at VFD screen by switchover the front-panel buttons. The DC source can also be used as external equipment in laboratory testing to measure the voltage values.
    • Master/Slave Control
      • In the master-slave control mode, up to 2 units in series and 10 units in parallel.
      • Master-slave control mode can realize the effect as “a hundred responses to a (single) call”. Once the master-slave mode is settled, “SLAVE” will be locked in the main interface and exclusively controlled by “MASTER”. When there is a “SLAVE” signaling of protection mode, all the DC sources will turn off and exit master-slave mode.
    • Simple series/parallel output
      • When users require high output power, APM programmable 200 VDC source can achieve the output power by using up to 10 programmable DC sources in a series or parallel mode.
    • Series Mode Functions
      • APM programmable 200 VDC source via its RS485 interface can be operated in a series mode by using up to 31 units of the device, thus makes it possible to simultaneously control all the DC sources connected on RS485 from PC.
  • Mode

    SPS200VDC1000W, SP200VDC2000W, SP200VDC3000W, SP200VDC4000W

    Input Voltage Range

    90-265VAC, 190-265VAC, 190-265VAC, 190-265VAC

    Input Frequency Range

    47-63Hz

    Power Factor

    >0.98

    Input Power

    1300VA(MAX), 2400VA(MAX), 3400VA(MAX), 4500VA(MAX)

    Output Voltage Range

    0-200V

    Output Current Range

    0-24A

    Voltage Load Regulation

    15mV, 15mV, 15mV, 25mV

    Current Load Regulation

    24mA

    Voltage Setting Accuracy

    0.1%+15mV

    Current Setting Accuracy

    0.1%+24mA

    Voltage Measurement Accuracy

    0.1%+15mV

    Current Measurement Accuracy

    0.1%+24mA

    Voltage Ripple

    150mVp-p/30mVrms

    Current Ripple

    50mA (Full Range), 20mA (TYP value)

    Voltage Temperature Coefficient

    100ppm/℃

    Current Temperature Coefficient

    150ppm/℃

    DVM Resolution(optional)

    1mV

    DVM Accuracy(optional)

    0.1%+15mV

    Remote Compensation

    5V MAX

    Load Transient Response Time

    ≤ 2ms, ≤ 3ms, ≤ 3ms, ≤ 3ms,

    Command Response Time

    50ms

    Efficiency(Full Load)

    88%, 90%, 91%, 92%

    Protection Function

    OVP, OCP, OTP, OPP, SCP

    Weight

    13.2kg

    Communication Modes

    Standard:RS232/RS485/USB/LAN,

    Option:RS232/RS485/USB/LAN/GPIB

    Operating Environment

    Temperature 0~40℃,Relative Humidity 10%~90%(no condensation)

    • Please feel free to contact for detailed specifications, accessories, software and options.
