溫度/電量/壓力/振動 測量校正 > 電量測量/校正

動力工程設備的三相功率校正器和測試儀

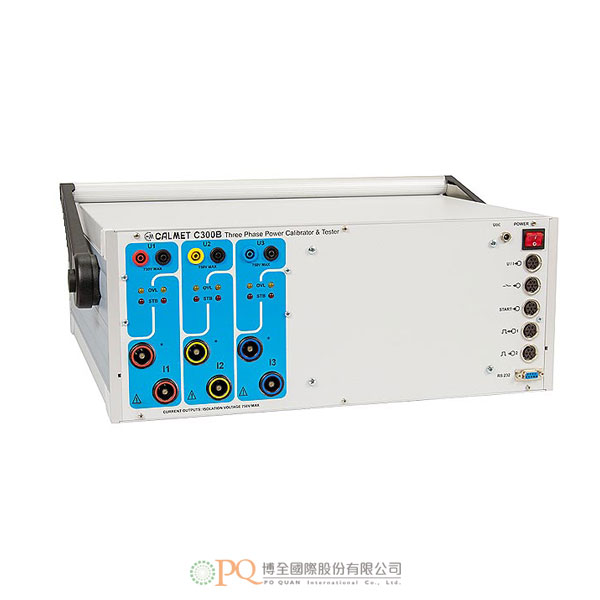

Automatic tester class 0.02 or 0.05 for instrument transformers 型號:C300B

Three phase, class 0.02 and 0.05 power quality calibrator up to 120A (360A) and 560VAC with programmable power quality parameters. It makes possible to make automatic test of electricity meters, measurement transducers, current transformers and protection relays

    • 3-phase voltage source up to 560V
    • 3-phase current source up to 120A and 1-phase up to 360A
    • Single pair of current sockets for each current outputs
    • Accuracy class 0.02% or 0.05% to calibrate digital instruments
    • Single product in a single case without auxiliary amplifiers
    • High burden of outputs to drive older analogue instruments
    • Manual mode and automatic test procedures
  • Weight

    28kg

    Width x height x depth

    (480x200x451)mm

    Width x height x depth (with feet and handle)

    (480x200x490)mm

    Power supply

    90V…264V / 47...63Hz / 900VA
