LED光電掃描頭

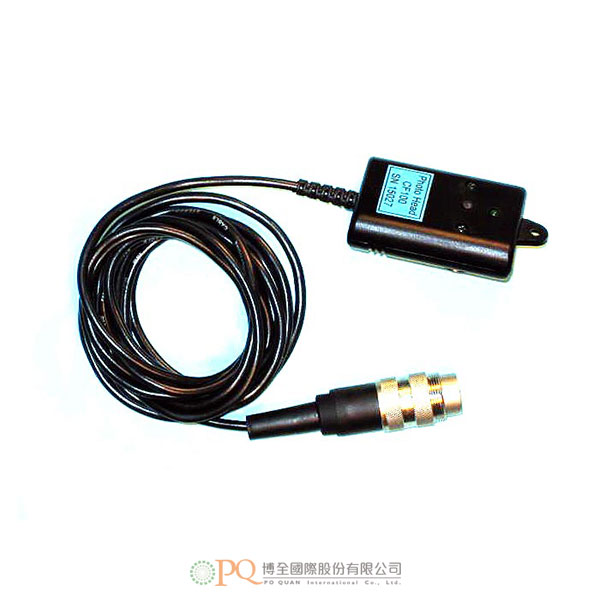

Head for meters with LED flashing 型號:CF100

Miniature photo head with vacuum cup clamping for counting LED flashing of tested meter. It contains also button for inductive meters testing by method "start/stop". We recommend a new replacement - CF106 - Universal scanning head

    • LED green, ... , red and infrared
    • Mounting to meter by vacuum cup
    • Small dimensions and weight
    • Requires no adjustment
    • Additional Manual Start / Stop push button
  • PARAMETERS OF THE CF100 SCANNING HEAD

    Power Supply Vcc

    10...30V

    Supply current

    typ. 20mA@12V and max 35mA

    Output

    voltage ULO=0...0,5V ; UHI=5...(Vcc-4)V
    ROUT=1,5k

    Sensitivity distance

    0...40mm

    Connector type

    plug C091A T3475-001 Amphenol
