CT1000AC -電子輔助夾

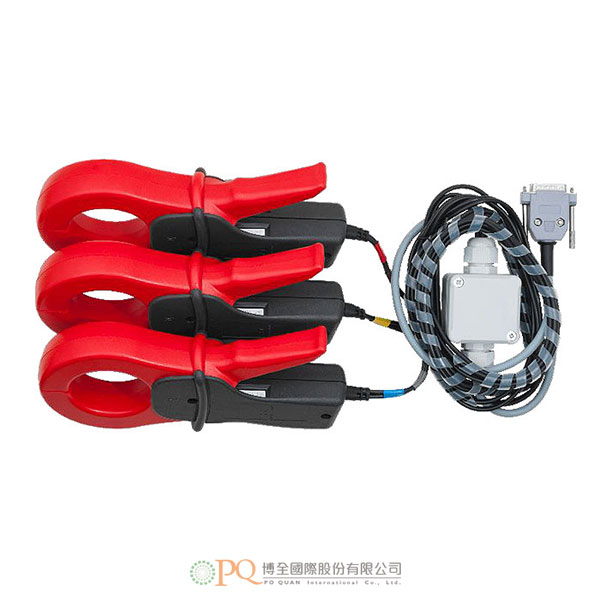

Electronic compensated clamps 1200A 型號：CT1000AC
Miniature, electronic compensated clamps for measuring current up to 1200A
-
- Wide range of current measurement: 0.3A to 1200A
- 52 mm maximum conductor size
- Easy to assembly in hard access places
- Exchangeability of clamps between devices with keeping accuracy
- Works with Calmet TE30 and TS33 testers and analysers
-
Parameter
Value
Range of current
0.3A – 1200A AC
Output voltage
1mV / 1A
Minimum load impedance
≥1MΩ
Accuracy
0.2% m.v. in range 10 to 1200A 0.2% r.v. in range 0.3 to 10A
Frequency range
30Hz to 10kHz
Maximum voltage of cable / bar to earth
600V AC RMS
Length of connecting cable
2.10m
Temperature range operation / storage
0ºC to +50ºC/-10ºC to 60ºC
Dimensions of single clamp
216 x 111 x 45 mm
Weight
approx. 1.8kg
Safety
600V RMS, Cat. III,
Pollution degree 2Safety standards
EN 61010-1, -2, -031
