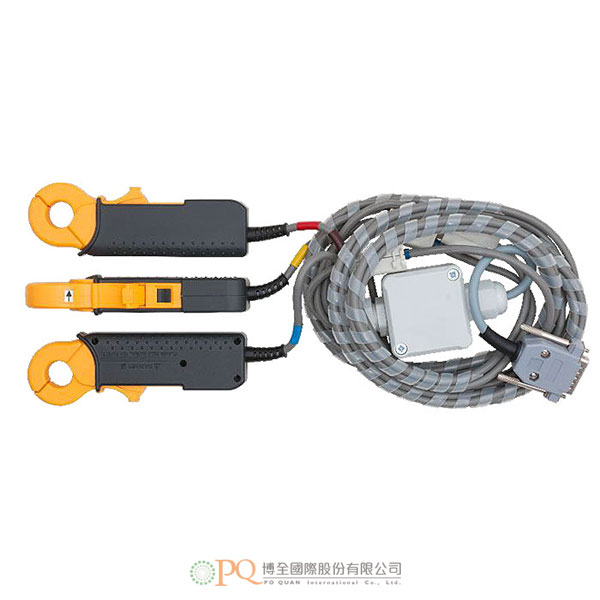

CT100AC -電子輔助夾
Electronic compensated clamps 120A 型號：CT100AC
Miniature, electronic compensated clamps for measuring current up to 120A
-
- Wide range of current measurement: 10mA to 120A
- 15 mm maximum conductor size
- Simultaneously current measurement in 3 phases
- Exchangeability of clamps between devices with keeping accuracy
- Works with TE30 and TS33 testers and analysers
-
Parameter
Value
Range of current
10mA – 120A AC
Output current
1mA / 1A
Maximum load impedance
≤30Ω
Accuracy
0.2% m.v. in range 0.1 to 120A 0.2% r.v. in range 0.01 to 0.1A
Frequency range
40Hz to 1kHz
Maximum voltage of cable / bar to earth
300V AC RMS
Length of connecting cable
2.10m
Temperature range operation / storage
0ºC to +50ºC/-10ºC to 60ºC
Dimensions of single clamp
46 x 135 x21 mm
Weight of single clamp
approx. 0.2kg
Safety
300V RMS, Cat. III,
Pollution degree 2Safety standards
EN 61010-1, -2, -031
