TS33測試系統軟體

Software for TS33 Test System 型號:Calsoft 10

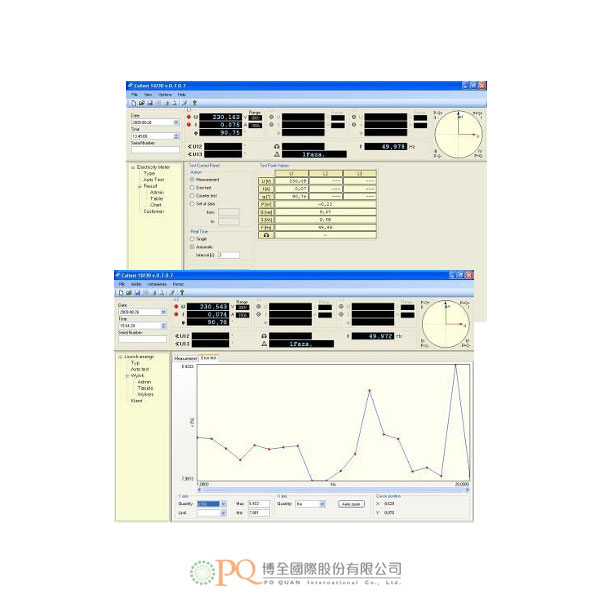

PC software for configuration of TS33 Test System, automatic testing of power industry equipment, reading, archiving, visualization and analysing of measurement results
    • Easy verification of meters under precise load conditions, using integrated current and voltage source
    • Automatic operation with predefined load points without the need of an external PC
    • Modern SD flash memory card up to 32GB for storage of customer data and measurement results
    • Display of vector diagram, phase sequence, wave form oscilloscope, harmonics spectrum bar and trend charts for analysis of the mains conditions
    • User-friendly system for data input and operation of combined source and reference meter
    • The system may be used either as a stand-alone reference standard meter class 0.04 or 0.1, or together with the integrated power source, or as a stand-alone three-phase power calibrator class 0.1
    • Data readout and test system control via USB, Ethernet and Bluetooth
  • General parameters

    Weight and dimensions (width x height x depth)

    22kg and (550x345x200) mm

    Power supply

    85…265V / 47...63Hz / 400VA

    Safety: Isolation protection and Measurement Category

    IEC 61010-1 and 300V CAT III

    Degree of protection

    IP-30 (housing open) / IP-67 (housing closed)

    Operation / storage temperature

    -10…+50°C / -20…+60°C

    Operation / storage relative humidity

    <90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C
