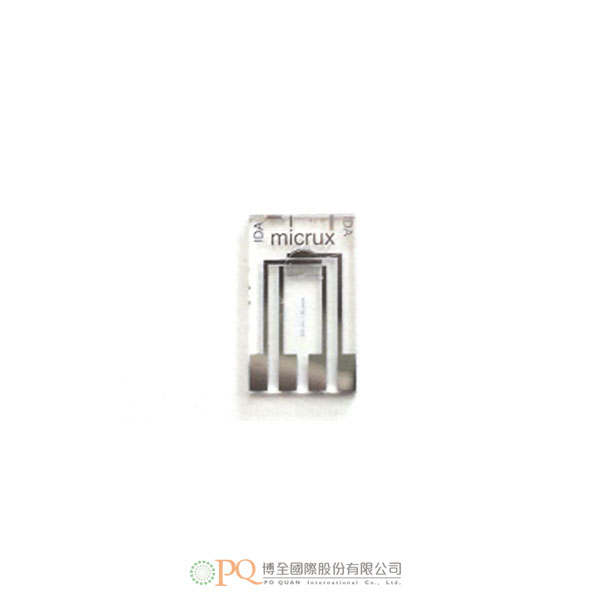

Thin-film Platinum InterDigitated Array Microelectrode (10/10 µm)
Thin-film Platinum InterDigitated Array Microelectrode (10/10 µm) 型號：ED-IDA1-Pt
15 pairs interdigitated platinum electrodes (10/10 µm, electrode/gap) integrating reference and counter electrodes. Useful for gas sensor (oxygen, nitrogen dioxide…), explosives, etc... detection. Compatible with Drop, AIO and Multi8x AIO cell.
-
15 pairs interdigitated platinum electrodes (10/10 µm, electrode/gap) integrating reference and counter electrodes. Useful for gas sensor (oxygen, nitrogen dioxide…), explosives, etc... detection. Compatible with Drop, AIO and Multi8x AIO cell.
-
Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 2 mm Ø
Electrodes material: Ti / Pt
Electrodes thickness: 50/150 nm
Microelectrode width: 10 µm
Microelectrode gap: 10 µm
Number of fingers: 15 pairs
Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
Contents: 50 units/box
