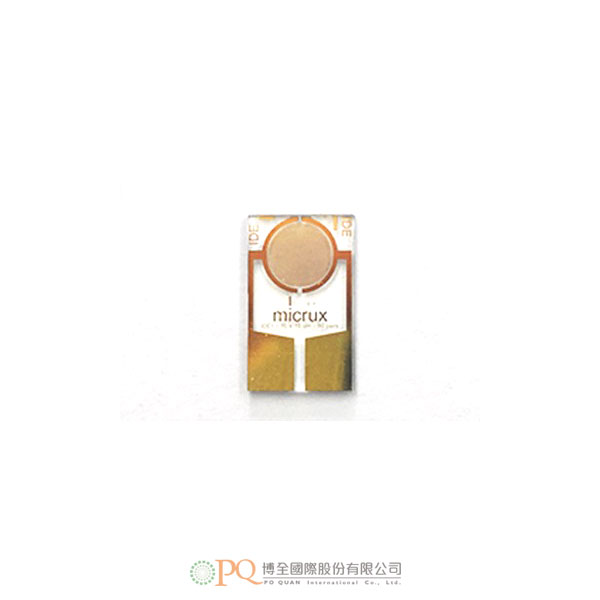

Thin-film Gold InterDigitated Electrode (10/10 µm)
Thin-film Gold InterDigitated Electrode (10/10 µm) 型號：ED-IDE1-Au
90 pairs of interdigitated gold electrodes (10/10 µm, electrode/gap). Useful for optical and electrochemical (impedance) studies, spectroelectrochemistry, etc. Compatible with Drop, AIO and Multi8x AIO cell.
-
90 pairs of interdigitated gold electrodes (10/10 µm, electrode/gap). Useful for optical and electrochemical (impedance) studies, spectroelectrochemistry, etc. Compatible with Drop, AIO and Multi8x AIO cell.
-
Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 2 mm Ø
Electrodes material: Ti / Au
Electrodes thickness: 50/150 nm
Microholes diameter: 10 µm
Microholes number: 90
Microholes pitch: 100 µm
Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
Contents: 50 units/box
