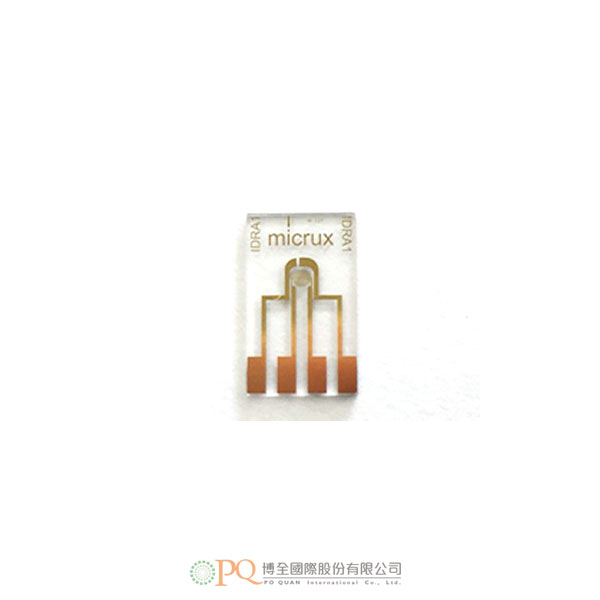

Thin-film Gold InterDigitated Ring Array Microelectrode (10/10 µm)

Thin-film Gold InterDigitated Ring Array Microelectrode (10/10 µm) 型號:ED-IDRA1-Au
12 pairs interdigitated gold electrodes (10/10 µm, electrode/gap) with radial design focused on flow analysis systems. Compatible with Drop, AIO and Multi8x AIO cell.
  • 12 pairs interdigitated gold electrodes (10/10 µm, electrode/gap) with radial design focused on flow analysis systems. Compatible with Drop, AIO and Multi8x AIO cell.
  • Dimensions: 10 x 6 x 0.75 mm
    Substrate: Glass
    Insulating layer: SU8/PI resin
    Electrochemical cell: 2 mm Ø
    Electrodes material: Ti / Au
    Electrodes thickness: 50/150 nm
    Microelectrode width: 10 µm
    Microelectrode gap: 10 µm
    Number of fingers: 12 pairs
    Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
    Contents: 50 units/box
