全新潤滑油脂線上監測系統

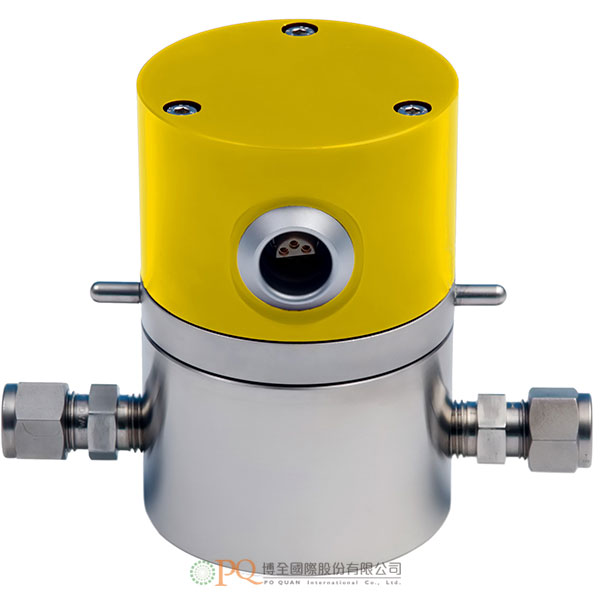

Online Grease Sensor 型號:GreaSens® GS 3000
GreaSens® GS3000是2019年新發售的一種用於油脂狀態的即時線上監測系統。它的出現重新定義了脂類產品的使用方式。
  • 全新潤滑油脂線上監測系統
    用於軸承等關鍵零件故障預防

    GreaSens® GS3000是2019年新發售的一種用於油脂狀態的即時線上監測系統。它的出現重新定義了脂類產品的使用方式。通過檢測電導率及介電常數的細微變化,即時監控設備所用油脂的狀態、潤滑及磨損條件、並預測設備可能發生的早期損壞及故障趨勢,在發生任何損傷之前就對油脂及軸承、齒輪傳動系統的變化進行嚴密且不間斷的監測。專利的溫度補償技術給電導率及介電常數的精確測量提供保障。

    油脂即時監控系統提高了設備運行穩定性、延長了設備壽命並減少了停機時間。業主根據實際需要調整換油週期,實現經濟和生產效率的大幅提高。

    產品特點

    • 增加磨損識別
    • 監控油脂降解過程
    • 適用於各類油脂
    • 全智慧化解決方案
    • 基於網絡可分佈式監控

    應用領域

    • 風力發電
    • 建築機械
    • 滾子軸承磨損檢測
    • 油質劣化監控
    • 油脂狀態解決方案
    • 其他
  • 範圍
    電導率:0.1 至 100,000 pS/m
    (可選,高範圍:0.1 至 2.000.000 pS/m)
    相對介電常數:1 ~ 5

    靈敏度
    電導率: 0.1 pS/m
    相對介電常數:

    溫度和壓力
    最大油壓: 20°C 時為 60 barg(68°F 時為 870 psig )
    油溫:-10°C 至 +70°C
    ( 可選,高溫:-10° 至 + 150°C)
    ( 可選,低溫:-40° 至 + 65°C)
    工作溫度:-20°C 至 +70°C

    材質
    感測器材質 : 不銹鋼 (柱體和載體)、鋁(頂部外殼)
    電纜長度 : 3 m ,屏蔽電纜 (可選,不同電纜長度)

    連接
    ¼” Swagelok® 適用於外徑 6 mm 管子 (可另選不同接頭外徑)

    通訊介面
    透過 RS232/RS232-USB 進行串列通信 (可選:LAN、GSM、
    Profibus、Modbus、CAN、0...10V, 0/4...20mA)

    電源
    115/230 VAC, 50/60 Hz (可選, +24 VDC)

    重量和尺寸

    尺寸(mm)
    感測器 103(高)x 70(直徑)
    通訊單元:210 x 250 x 165
    通訊模組:87 x 110 x 30 87 x 110 x 30

    淨重
    感測器 1.7 kg
    通訊單元:4.45 公斤 4.45 kg
    通訊模組 0.25 k

  • GreaSens ® Gs3000 is a new on-line monitoring system for oil condition, which will be put on sale in 2019. It redefines the use of lipid products. By detecting the subtle changes of conductivity and dielectric constant, the state of grease, lubrication and wear conditions of equipment are monitored in real time, and the possible early damage and fault trend of equipment are predicted. Before any damage occurs, the changes of grease, bearing and gear transmission system are closely and continuously monitored. The patented temperature compensation technology guarantees the accurate measurement of conductivity and dielectric constant.

    The oil real-time monitoring system improves the stability of the equipment, prolongs the service life of the equipment and reduces the downtime. The owner adjusts the oil change cycle according to the actual needs, so as to greatly improve the economy and production efficiency.

    product features

    • Increase wear identification
    • Monitoring the process of oil degradation
    • Suitable for all kinds of oils and fats
    • All intelligent solution
    • Distributed monitoring based on Network

    application field

    • Wind power generation
    • construction machinery
    • Wear detection of roller bearing
    • Oil quality deterioration monitoring
    • Solution of grease state
    • other
  • Ranges
    Conductivity: 0.1 to 100,000 pS/m
    (optional, high range: 0.1 to 2.000.000 pS/m)
    Relative permittivity: 1 to 5

    Sensitivity
    Conductivity: 0.1 pS/m
    Relative permittivity: 1*10-6

    Temperature and pressure
    Max oil pressure: 60 barg at 20oC
    (870 psig at 68oF)
    Oil temperature: -10oC to +70oC
    (optional, high temperature: -10° to + 150°C)
    (optional, low temperature: -40° to + 65°C)
    Operating temperature: -20oC to +70oC

    Material:
    Sensor material: Stainless steel
    (bowl and carrier) and aluminium (head)
    Cable: 3 metre, shielded
    (optional, different cable length)

    Connections:
    ¼” Swagelok® for 6mm o.d. tube
    (optional connectors available)

    Communication Interface:
    Serial communication via RS232/RS232-USB
    (opt.: LAN, GSM, Profibus, Modbus, CAN,
    0..10V, 0/4..20mA)

    Electrical requirements:
    115/230 VAC, 50/60 Hz (optional, +24 VDC)

    Weights and Dimensions

    Dimensions (mm):
    Sensor: 103 (height) x 70 (diameter)
    Communication unit:  210 x 250 x 165
    Communication module: 87 x 110 x 30

    Weights net:
    Sensor: 1.7 kg
    Communication unit: 4.45 kg
    Communication module: 0.25 kg
