750 MHz任意波形產生器

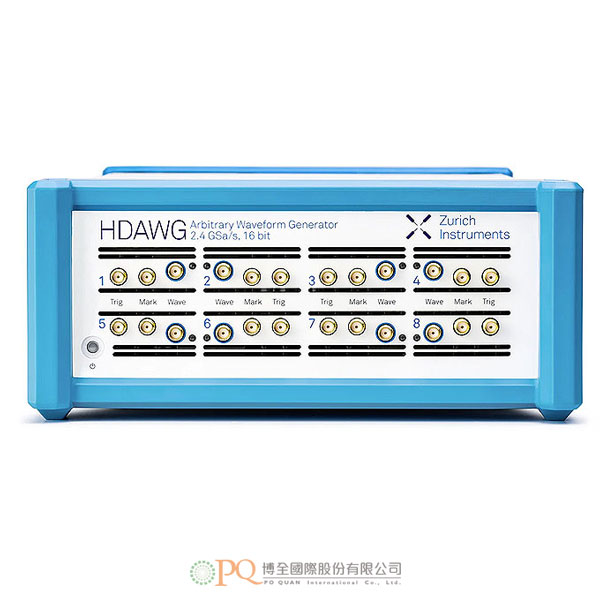

HDAWG-750 MHz Arbitrary Waveform Generator-
The Zurich Instruments HDAWG multi-channel Arbitrary Waveform Generator has the highest channel density available in its class, and is designed for advanced signal generation up to 750 MHz bandwidth. The HDAWG comes with either 4 or 8 DC-coupled, single-ended analog output channels with 16-bit vertical resolution. Output switching is supported between a direct mode with maximized bandwidth and superior noise performance and an amplified mode that boosts the signal amplitude to a maximum of 5 Vpp. Temporal synchronization of up to 18 HDAWGs is supported through the PQSC.
LabOne provides a state-of-the-art programming concept that combines the performance and flexibility of an arbitrary waveform generator with the accessibility of a function generator. The LabOne user interface and a choice of APIs for Python, C, MATLAB®, LabVIEW™ and .NET enable measurement automation and fast integration into an existing control environment.
- 2.4 GSa/s, 16 bits, 750 MHz signal bandwidth
- 5 Vpp maximum amplitude
- Scalable up to 144 output channels
- Highest channel density available
- Less than 50 ns trigger-to-output delay
- Digital modulation at multiple frequencies
- LabOne® AWG Sequencer and Compiler
-
- Quantum computing
- Radar / Lidar
- NMR and EPR spectroscopy
- Semiconductor testing
- MIMO techniques in MRI and telecommunication
- 詳細產品規格請與我們聯繫，謝謝。
