高階數位式測力計

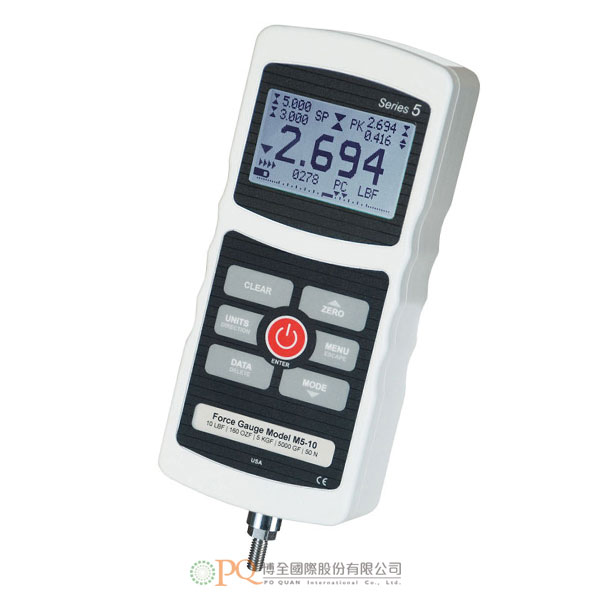

Series-5 Advanced Digital Force Gauge 型號:M5-X|M5-XXXX
  • CHECKLINE Series 5可測量張力及壓縮力 - 推力/拉力,範圍最高到2,000 lbs。
  • CHECKLINE Series 5的設計,適合在品質管制、製造及研發領域進行張力與壓縮力測試。
  • 提供最大荷重力範圍0.12 lb~2000 lb (0.5 N~10,000 N),可滿足醫療設備、製藥、包裝、消費性產品、汽車、航天航空及其它產業的應泛應用。
  • CHECKLINE Series 5的特點是具有業界領先的峰值取樣率7,000Hz,即使是快動作測試,也能產生精準的結果。
  • 精度±0.1% f.s.,解析度1/5000。
    • CHECKLINE Series 5可測量張力及壓縮力 - 推力/拉力,範圍最高到2,000 lbs。
    • CHECKLINE Series 5的設計,適合在品質管制、製造與研發領域,進行張力及壓縮力測試。
    • 提供最大荷重力範圍0.12 lb~2000 lb(0.5 N~10,000 N),可滿足醫療設備、製藥、包裝、消費性產品、汽車、航天航空及其它產業的應泛應用。
    • CHECKLINE Series 5的特點是具有業界領先的峰值取樣率7,000Hz,即使是快動作測試,也能產生精準的結果。
    • 精度±0.1% f.s.,解析度1/5000。
    • 大型背光圖形式LCD顯示幕可顯示大型清晰的字符,而簡單的選單引導,又可快速地使用測力計的許多功能及可設定的參數。
    • 測量資料可透過USB、RS-232及Mitutoyo (Digimatic)或類比輸出,轉移到個人電腦或其它資料蒐集器。
    • 標準配備的板載資料記憶體,可儲存最多1,000個讀值,就如統計計算結果一樣,可以輸出到個人電腦。
    • 內建的設定點指示,適於進行Pass/Fail測試及用於觸發外部裝置,例如警報、電驛或測試站。
    • 測力計具有過載保護到最大荷重的150%;螢幕上顯示的一個類比荷重條圖,是以圖形形式表示施加的力度。
    • CHECKLINE Series 5的平均模式,可滿足對於記錄一段時間的平均力的需求,在諸如剝離測試中很有用,而外部觸發模式,則使開關啟用測試,既簡單又精準。
    • 符合人體工學的鋁外殼設計,可供手持使用或固定在測試架上使用,以滿足更複雜的測試需求。
    • 外殼可顛倒轉向,以便將荷重元的軸向上或向下,同時又使顯示幕及按鈕保持直立。
    • 特點:
      • 標準提供MESUR Lite基本資料擷取軟體。
      • 高速7,000 Hz峰值取樣率。
      • USB、RS-232、Mitutoyo及類比輸出。
      • 平均模式:計算一段時間的平均讀值。
      • 外部觸發模式:用於開關接點測試,或從遠端停止顯示更新。
      • 可程式的設定點,提供pass/fail聲音和視覺指示。
      • 大型背光圖形顯示幕。
      • 1,000點的資料儲存及統計與輸出。
      • 即時類比荷重條圖及設定點標記。
      • 密碼保護,可針對個別按鍵及校正作設定。
      • 始終顯示峰值讀值。
      • 可設定的聲音警報及按鍵聲音。
      • 鋁質結構。
      • 包括10 pt NIST可追溯校正證明。
  • 取樣率

    7,000Hz

    精度

    ±0.1% f.s.

    電源

    AC或可充電電池(NiMH),當電池電量低時,顯示低電池電量指示;當電源降到臨界階段時,測力計自動關機。

    電池續航力

    背光開啟:最多7小時的連續使用。
    背光關閉:最多24小時的連續使用。

    測量單位

    lbF、ozF、gF、kgF、N、kN、mN (依機型而定)。

    輸出

    USB / RS-232:可全部設定到115,200 baud,包括測力計控制語系2,以進行完整的電腦控制。

    Mitutoyo (Digimatic):串列BCD,適用於所有Mitutoyo SPC相容裝置。
    類比:±1V DC,±0.25% f.s.@最大荷重。
    一般用途:3個開漏輸出,1個輸入。
    設定點:3條開漏線路 。

    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • Measures Tension & Compression Force (Push / Pull), Ranges up to 2,000 lbs
    • Series 5 advanced digital force gauges are designed for tension and compression force testing in quality control, manufacturing, and R&D areas.
    • A range of capacities from 0.12 lb to 2000 lb (0.5 N to 10,000 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries.
    • The force gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests.
    • Accuracy is ±0.1% of full scale, and resolution is 1/5000.
    • A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauge's many features and configurable parameters.
    • Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
    • On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC.
    • Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand.
    • The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
    • The Series 5's averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate.
    • An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements.
    • The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.
    • Features:
      • Now including MESUR Lite basic data acquisition software!
      • High-speed 7,000 Hz peak sampling rate
      • USB, RS-232, Mitutoyo, and analog outputs
      • Averaging mode - calculates average readings over time
      • External trigger mode - for switch contact testing or remotely stopping display update
      • Programmable set points with pass/fail audible and visual indicators
      • Large backlit graphic display
      • 1,000-point data memory with statistics and outputs
      • Live load bar graph with set point markers
      • Password protection, configurable for individual keys and calibration
      • Peak readings always displayed
      • Configurable audio alarms and key tones
      • Aluminum construction
      • Includes 10 pt NIST Traceable Calibration Certificate
  • Sampling Rate

    7,000 Hz

    Accuracy

    ±0.1% of Full Scale

    Power

    AC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.

    Battery Life

    Backlight on: up to 7 hours of continuous use
    Backlight off: up to 24 hours of continuous use

    Measurement Units

    lbF,ozF,gF,kgF,N,kN,mN (depending on model)

    Outputs

    USB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
    Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
    Analog: ±1V DC, ±0.25% of full scale at capacity.
    General Purpose: Three open drain outputs, one input.
    Set Points: Three open drain lines.

    • Please feel free to contact for detailed specifications, accessories, software and options.
