三相電能表校驗儀

METES－電表測試系統
METES 系列為高精度電表測試系統，測量精度最高可達 0.05%，並具備寬廣的測量範圍，可用於單相與三相應用的精密量測。METES 系列電表測試系統主要用於感應式電表及電子式電能表在各種運轉條件下的精度測試。此外，在測試過程中，系統擾動因素例如諧波或閃變對電表量測結果的影響，也可以一併納入考量與分析。

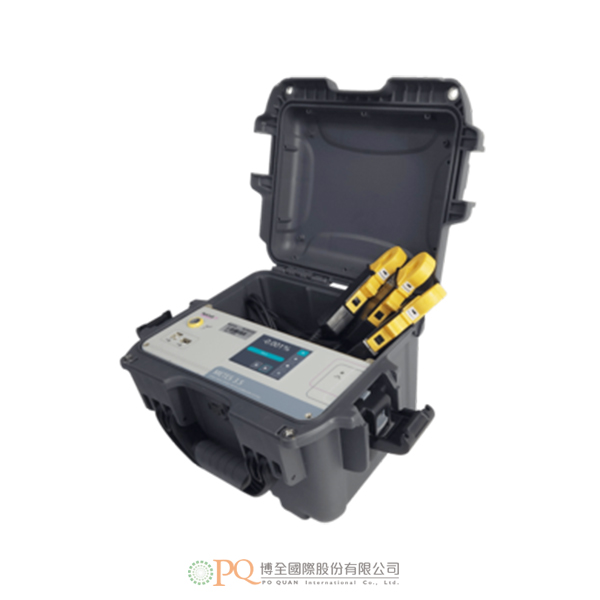

三相電能表校驗儀
可攜式三相電能表校驗儀。本設備主要用於電子式電能表與感應式（Ferraris）電能表的校驗，特別針對發展中國家與已開發國家中日益成長的預付費電能表市場所設計。
電能表校驗
具備完整功能，可進行電能表校正誤差的驗證，並直接以百分比顯示誤差值。
即時量測
本設備可量測並顯示各相與總量的系統電壓、電流、相位角及功率量測（W、var、VA）。
量測模式
設備隨附三個夾式電流感測器，可輕鬆整合至電力系統中。電流夾具具備較一般產品更大的最大導體直徑能力（15 mm），方便現場安裝。
使用者介面
透過觸控螢幕與選單式操作介面，可輕鬆輸入測試參數並顯示測試結果。
記憶體
本設備可將所有讀值與測試結果儲存於內建資料庫中，之後可下載至隨附的電腦軟體供報告列印及資料歸檔。可儲存客戶資料、測試地點及測試結果。
印表機（選配）
本設備可選配藍牙無線印表機，用於現場列印測試結果。印表機為電池供電，內建可充電電池。



量測

• 電壓範圍：3 × 相電壓 85…250 V
• 電流範圍：
•  3 × 1 A rms
•  3 × 10 A rms
•  3 × 100 A rms
• 自動或手動電流檔位選擇
• 電壓準確度：0.1%
• 電流準確度：0.1%
• 功率準確度：0.2%（典型值 0.1%）
• 基本頻率：50 Hz 與 60 Hz

量測選項
可提供 200 A、500 A 及 1000 A 電流量測範圍。
一般規格

• 輔助電源：85…265 V，45…65 Hz（內部自動選擇為被測電壓）
• 操作溫度：0…50 °C
• 顯示器：3.5 吋彩色觸控螢幕
• 外殼：高強度聚碳酸酯
• 防水外殼可容納所有感測器、配線、光學讀取頭等於同一機箱內
• 全防水設計 – IP67
• 尺寸（寬 × 長 × 深）：315 × 255 × 150 mm
• 重量：2.1 kg

METES - Meter testing
Meter test systems with high accuracies of up to 0.05% and a wide measuring range for precise measurements in single- and three-phase applications. The meter test systems of the METES series are used to test the accuracy of Ferraris meters and electronic electricity meters under any operating conditions. The impact of system perturbations such as harmonics or flicker on the meter can be taken into consideration during tests.
Three phase energy meter calibration verifier
Portable, three-phase energy meter calibration verifier. This unit is primarily intended for the verification of electronic and Ferraris energy meters, specifically aimed at the growing pre-payment energy meter industry in developing and first-world countries.
Energy Meter Verification
Full functionality for energy meter verification of calibration errors with direct percentage error read-out.
Instantaneous Measurements
The unit measures and displays the system Voltage, Current, Angle and Power quantities. (W, var & VA) Per phase and total quantities.
Measurement Mode
The unit comes complete with three current clamp- on sensors for easy integration into the power network. The current clamp-on sensors have larger than usual installation maximum conductor diameter capability of 15 mm.
User interface
Easy menu driven interface for the entry of test parameters and display of test results using touch display.
Memory
This unit allows you to save all readings and test results in an on-board database for later downloading to the supplied PC software for report printing and archiving. Customer, Site and test results information is stored.
Printer (Optional)
This unit has an optional Bluetooth wireless printer for onsite printing of the test result. The printer is battery powered using rechargeable on-board batteries


Measurement

• Voltage Range 3 x Phase 85..250V
• Current Range
• 3 x 1Arms
• 3 x 10Arms
• 3 x100Arms
• Current range selection Auto & Manual
• Voltage Accuracy 0.1%
• Current Accuracy 0.1%
• Power Accuracy 0.2% (typical 0,1%)
• Fundamental Frequency 50 and 60Hz

Measurement Options
Current ranges of 200A, 500A and 1000A are available.
General

• Auxiliary supply: 85..265V, 45..65Hz (Internally selected to measured voltage)
• Operating Temperature: 0..50 °C.
• Display: 3.5 inch colour, touch display..
• Housing: Robust poly carbonate
• Waterproofs housing accommodates all sensors, wiring, optical eye, etc in same case!!
• Totally waterproof – IP67
• Dimensions (WxLxD): 315x255x150 mm.
• Weight: 2.1 kg.
