THERMOSTATIC CALIBRATORS

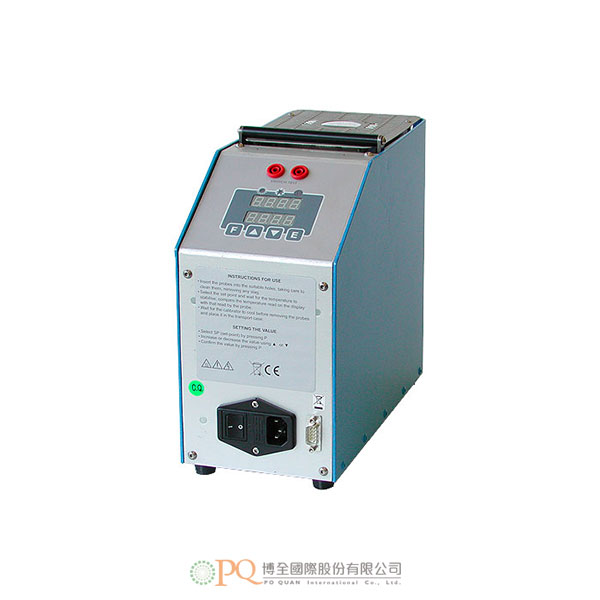

THERMOSTATIC CALIBRATORS 型號：PYROS 375- Temperature range: 30 °C ÷ 375 °C
- Precision: ±0,35 °C
- Hole depth: 150 mm
- Hole diameter: 26 mm
-
Operating range：-24 °C ÷ +650 °C， (-11 °F ÷ 1202 °F)
Applications:
Control and calibration of temperature sensor, in the laboratory and in the field, in conformity with ISO 9000 standards
Control of thermostats.
Automatic computer-controlled calibrations. -
Technical specification PYROS 140 PYROS 375 PYROS 650 Operating range
(t amb. 20 °C / 68 °F)-24 °C ÷ 140 °C
(-11 °F ÷ 284 °F)amb.+10 °C ÷ +375 °C (Amb. +18 °F ÷ 707 °F) amb.+15 °C ÷ +650 °C (Amb. +27 °F ÷ 1202 °F) Mean heating time (stabilization included) From amb. to 120 °C / 248 °F 20 min From 30 °C / 86 °F to 375 °C / 707 °F
20 minFrom 50 °C / 122 °F to 650 °C / 1202 °F
35 minMean cooling time (stabilization included) From amb. to -20 °C / -4 °F 17 min From 375 °C / 707 °F to 100 °C / 212 °F
40 minFrom 650 °C / 1202 °F to 100 °C / 212 °F
60 minAxial uniformity ±0,05 °C at –20 °C
±0.09 °F at –4 °F±0,10 °C at 50 °C
±0.1 °F at 122 °F±0,02 °C at 50 °C
±0.03 °F at 122 °F±0,13 °C at 250 °C
±0.2 °F at 482 °F±0,04 °C at 0 °C
±0.07 °F at 32 °F±0,20 °C at 150 °C
(±0.3 °F at 302 °F)±0,05 °C at 150 °C
(±32.09 °F at 302 °F)±0,15 °C at 450 °C
(±32.27 °F at 842 °F)±0,10 °C at 100 °C
(±32.1 °F at 212 °F)±0,30 °C at 375 °C
(±32.5 °F at 707 °F)±0,15 °C at 375 °C
(±0.27 °F at 707 °F)±0,35 °C at 650 °C
(±0.6 °F at 1202 °F)Radial uniformity (at 40 mm) Not available ±0,10 °C at 50 °C
(±0.1 °F at 122 °F)±0,05 °C at 50 °C
(±0.09 °F at 122 °F)±0,22 °C
(±0.39 °F)±0,15 °C at 150 °C
(±0.27 °F at 302 °F)±0,10 °C at 150 °C
(±0.1 °F at 302 °F)±0,20 °C at 375 °C
(±0.3 °F at 707 °F)±0,15 °C at 375 °C
(±0.27 °F at 707 °F)Hole depth 104 mm (4 in.) 150 mm (5.9 in.) 150 mm (5.9 in.) Hole diameter 2 x 13 mm (0.07 x 0.51 in)
1 x 19 mm (0.03 x 0.74 in)26 mm (1 in.) 26 mm (1 in.) Display accuracy (±1 digit) ±0,25 °C at 100°C
± 0.45 °F at 212 °F±0,25 °C at 150 °C
(±0.45 °F at 302 °F)±0,25 °C at 150 °C
(±0.45 °F at 302 °F)±0,50 °C
(±0.9 °F)±0,35 °C at 375 °C
(±0.6 °F at 707 °F)±0,35 °C at 375 °C
(±0.6 °F at 707 °F)Stability ±0,05 °C - (± 0.09 °F) ±0,15 °C - (±0.27 °F) ±0,10 °C - (±0.1 °F) ±0,30 °C - (±0.5 °F) Display Resolution 0,1 °C - (0.1 °F) 0,1 °C - (0.1 °F) 0,1 °C - (0.1 °F) Units of measure °C / °F °C / °F °C / °F Over temperature cut out No Yes Yes Switch test 12 VAC DC 5 VAC DC 5 VAC DC PC Interface RS 232 RS 232 RS 232 Display LED double line LED double line LED double line IN / OUT RS232 RS232 RS232 Temperature ramps Yes Yes Yes Calibration From 1 to 10 calibration points From 1 to 10 calibration points From 1 to 10 calibration points Calibrator size 130 x 260 x 280 mm
(5.1 x 10 x 11 in.)130 x 260 x 280 mm
(5.1 x 10 x 11 in.)130 x 260 x 280 mm
(5.1 x 10 x 11 in.)Calibrator weight 4,9 kg - (10 lb) 5,4 kg - (11 lb) 6,0 kg - (13 lb) Power supply Voltage supply 100/230 VAC ±10% - 50/60 Hz Automatic switchable voltage supply 115/230 VAC ±10% - 50/60 Hz Automatic switchable voltage supply 115/230 VAC ±10% - 50/60 Hz Electric power 80 W 600 W 600 W Diameter of the sensor used: PYROS140-1H: Pt100 probe Ø 3 mm
PYROS375: Pt100 probe Ø 6 mm / Pt100 probe Ø 3 mm
PYROS140-2H: Pt100 probe Ø 3 mm
PYROS650: TcN probe Ø 4,5 mm
