TE30 測試儀軟體

TE30 型號:Software for TE30 testerv

Large Touchscreen with display and keyboard functions for easy operation enables

  • measure of power network parameters: voltages U1, U2, U3, U12, U23, U31, UN, currents I1, I2, I3, IN,frequency f,
    phase angles j1, j2, j3,
    power factors PF1, PF2, PF3, SPF,
    factors sinj1, sinj2, sinj3, Ssinj, tgj1, tgj2, tgj3, Stgj,
    angles between voltages ÐU12, ÐU23, ÐU31, powers P1, P2, P3, SP, Q1, Q2, Q3, SQ, S1, S2, S3, SS,

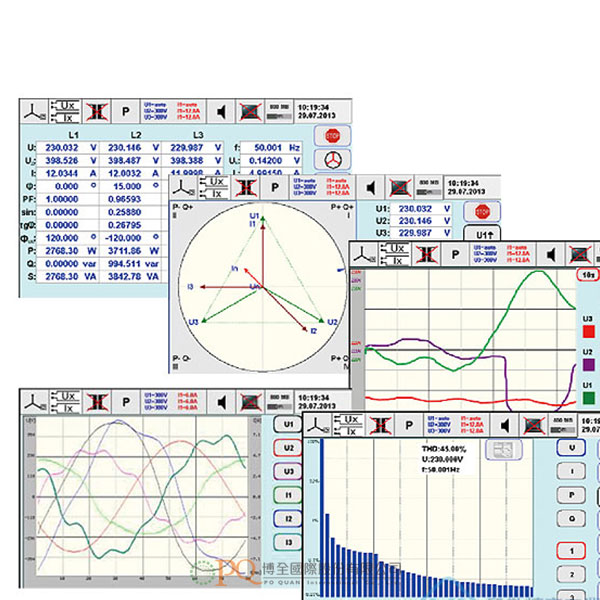

  • visualization of measurement results in form of:table, vectors, trend chart,
    oscilloscope (waveform) or
    bar chart (harmonics of U, I, P, Q).
  • Specifications for a power network analyser

    Parameter

    Range

    Error limits 1)2)3)4)

    class 0.05

    class 0.1

    Voltage (Direct)

    0.05…600V

    ±0.05% 5)

    ±0.1% 5)

    Voltage (VoltLiteWire 40kV)

    0.1…40kV

    ±0.1%±Em

    Current (Direct)

    0.01…12A
    0.001…0.01A

    ±0.05%
    ±0.05%*

    ±0.1%
    ±0.1%*

    Current (Clamps CT10AC)

    0.1…12A
    0.003…0.1A

    ±0.2%
    ±0.2%*

    Current (Clamps CT100AC)

    0.1…120A
    0.01…0.1A

    ±0.2%
    ±0.2%*

    Current (Clamps CT1000AC)

    10…1200A
    0.3…10A

    ±0.2%
    ±0.2%*

    Current (Flexible Clamps FCT3000AC.B)

    0.3…30A/3…300A/30…3000A

    ±0.1%±Em

    Current (AmpLiteWire 2000A)

    1…2000A

    ±0.1%±Em

    Power and energy (Direct)

    0.01…12A / 10…600V
    0.001…0.01A / 10…600V

    ±0.05%
    ±0.05%*

    ±0.1%
    ±0.1%*

    Power and energy (Clamps CT10AC)

    0.1…12A / 10…600V
    0.01…0.1A / 10…600V

    ±0.2%
    ±0.2%*

    Power and energy (Clamps CT100AC)

    0.1…120A / 10…600V
    0.01…0.1A / 10…600V

    ±0.2%
    ±0.2%*

    Power and energy (Clamps CT1000AC)

    10…1200A / 10…600V
    1…10A / 10…600V

    ±0.2%
    ±0.2%*

    Power and energy (Flexible Clamps FCT3000AC.B)

    0.3…30A/3…300A/30…3000A / 10…600V

    ±0.1%±Em

    Power and energy (VoltLiteWire 40kV + AmpLiteWire 2000A)

    1…2000A / 0.5…40kV

    ±0.1%±Em

    Frequency

    40…70Hz

    ±0.01Hz

    Phase shift (Direct)

    -180…+180°

    ±0.02° 5)6)

    ±0.04° 5)6)

    Phase shift (Clamps)

    -180…+180°

    ±0.1°   5)7)

    Power factor cosj and sinj

    0…±1

    ±0.001 5)6)7)

    Temperature coefficient (Direct)

    0.005% per 1°C in range -10…+50°C

    Time stability (Direct)

    Short term [1h] = 0.01%, long term [1 year] = 0.03%

    1) % - related to the measuring value, %* - related to the measuring range final value (is underlined)
    2) error limits include reference uncertainty of standards, stability in 12 months, influence quantities (ambient temperature in
    range +20…+26°C, humidity and power supply voltage in range 50…450V, frequency in range 45…65Hz)
    3) Em – sensor basic error, Em=1%+0.1%*  (Flexible  Clamps  FCT3000AC),  Em=2%+0.2%*  (VoltLiteWire 40kV  and AmpLiteWire 2000A)
    4) power and energy errors related to apparent power
    5) in voltage range 10…600V (Direct)
    6) in current range 0.01…12A (Direct)
    7) in current range: 0.1A…12A (Clamps CT10AC), 0.1A…120A (Clamps CT100AC), 10A…1200A (Clamps CT1000AC)



    General parameters

    Weight and dimensions (width x height x depth)

    2kg (with internal battery) and (270x245x90)mm

    Power supply

    50…450V / 47...63Hz / 15VA or
    replaceable batteries Ni-MH 5xAA 1.2V / 2600mAh / 2h

    Safety: Isolation protection and Measurement Category

    IEC 61010-1 and 300V CAT III

    Degree of protection

    Device is placed in IP67 housing

    Operation / storage temperature

    -10…+50°C / -20…+60°C

    Operation / storage relative humidity

    <90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C
