太陽能光伏相關設備 > 太陽能研究分析

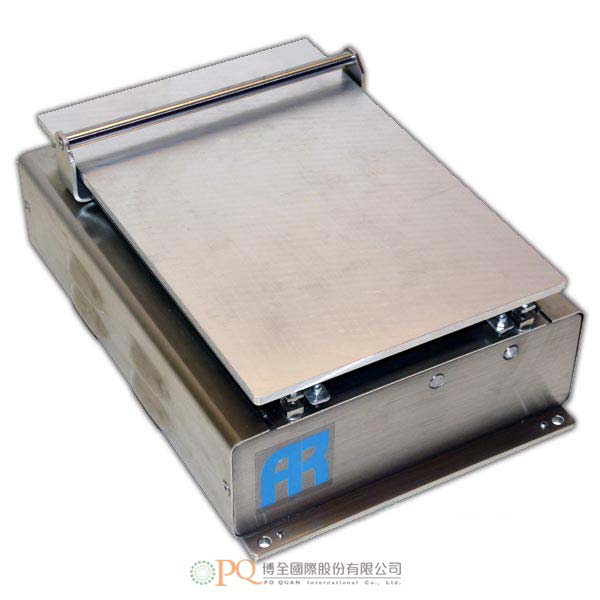

薄膜塗佈機TFC200-400
Thin Film Coater TFC200-400 型號：TFC200-400
Print functional films with nanometer precision
-
- Print functional films with nanometer precision
- Small size (only 200x300x125mm³), large deposition area (150x150mm² for doctor blading and approximately 80x150mm² for slot-die coating)
- Ideal for saving precious lab space with minimized heat dissipation, especially important in glovebox environments
- Free positioning of control units for motion and temperature
- Features:
- 1-100 mm/s
- Up to 120°C hotplate temperature
- Adjustable applicators
-
Art. No. Description TFC200 Film appicator small 200×300 mm² TFC300 Film applicator middle 300×400 mm² TFC400 Film applicator large 400×500 mm² TFCXXXH With hot plate TFCXXXVH With vacuum hot plate and vacuum pump
