三相全自動測試系統

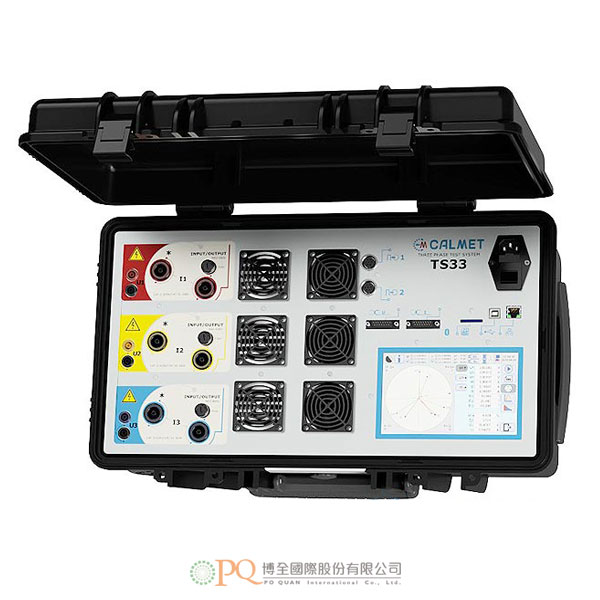

Three-phase Fully Automatic Test System with Reference Standard and Integrated C 型號:TS33

Calmet TS33便攜式測試系統由0.04%精度等級(或 0.1%)的三相參考表和高達 3x120A/600V的整合三相電流和電壓源所組成

    • 在精確負載條件下使用整合電流和電壓源輕鬆驗證儀表
    • 無需外部電腦即可通過預先定義的負載點自動運行
    • 用於儲存客戶數據和測量結果的32GB SD快閃記憶卡
    • 利用顯示向量圖、相序、波形示波器、斜波示波器和趨勢圖來分析電源狀況
    • 方便使用於組合源和參考儀表的數據輸入和操作的系統
    • 該系統可用作0.04或0.1級的獨立參考標準儀表、與整合電源一起使用、或用作0.1級的獨立三相功率校準器
    • 通過USB、以太網和藍牙進行數據讀取和測試系統控制
  • Weight and dimensions (width x height x depth)

    22kg and (550x345x200) mm

    Power supply

    85…265V / 47...63Hz / 400VA

    Safety: Isolation protection and Measurement Category

    IEC 61010-1 and 300V CAT III

    Degree of protection

    IP-30 (housing open) / IP-67 (housing closed)

    Operation / storage temperature

    -10…+50°C / -20…+60°C

    Operation / storage relative humidity

    <90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C

    • Easy verification of meters under precise load conditions, using integrated current and voltage source
    • Automatic operation with predefined load points without the need of an external PC
    • Modern SD flash memory card up to 32GB for storage of customer data and measurement results
    • Display of vector diagram, phase sequence, wave form oscilloscope, harmonics spectrum bar and trend charts for analysis of the mains conditions
    • User-friendly system for data input and operation of combined source and reference meter
    • The system may be used either as a stand-alone reference standard meter class 0.04 or 0.1, or together with the integrated power source, or as a stand-alone three-phase power calibrator class 0.1
    • Data readout and test system control via USB, Ethernet and Bluetooth
  • Weight and dimensions (width x height x depth)

    22kg and (550x345x200) mm

    Power supply

    85…265V / 47...63Hz / 400VA

    Safety: Isolation protection and Measurement Category

    IEC 61010-1 and 300V CAT III

    Degree of protection

    IP-30 (housing open) / IP-67 (housing closed)

    Operation / storage temperature

    -10…+50°C / -20…+60°C

    Operation / storage relative humidity

    <90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C
