電力設備測試 > 超音波檢測儀

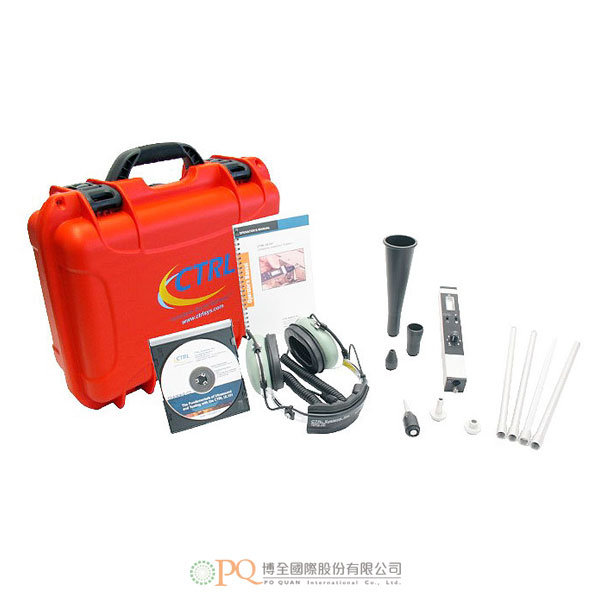

UL101 Leak Detector

UL101 Leak Detector 型號:UL101 Leak Detector
固定頻率
對所有擾流空氣、氣體或真空洩漏具有高靈敏度
容易調節的靈敏度和增益
可單手輕便操作
能夠將超聲波轉換為容易識別的聲音
無需充電的標準 9 V電池
    • 固定頻率
    • 對所有擾流空氣、氣體或真空洩漏具有高靈敏度
    • 容易調節的靈敏度和增益
    • 可單手輕便操作
    • 能夠將超聲波轉換為容易識別的聲音
    • 無需充電的標準 9 V電池

    應用

    • 洩漏檢測(壓力和真空)
    • 電氣檢查
    • 閥門和蒸汽疏水閥
  • Receiver / Transmitter Dimensions

    8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
    4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)

    Receiver / Transmitter Weight

    11.6 oz (330 g)
    6.2 oz (175 g)

    Kit Shipping Dimensions

    17″ x 8″ x 14″ (43 x 20 x 35 cm)

    Kit Shipping Weight

    10 lbs (4.5 kg)

    Housing

    Extruded Aluminum, wall thickness .09″ (2.3 mm)

    Battery

    9-Volt Alkaline (> 45 continuous hours use)

    Distance of Reception

    Up to 150 feet (45 m)

    Sensitivity Threshold

    Minimum Intensity: 10-12 W/m2 (0 dB SPL)
    Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40kHz

    Frequency Bandwidth

    1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)

    Operating Temperature Range

    -4° to +130° F (-20° to +54° C)

    Headset

    Industrial Grade/600-Ohm Impedance
    21-24 dB External Noise Attenuation

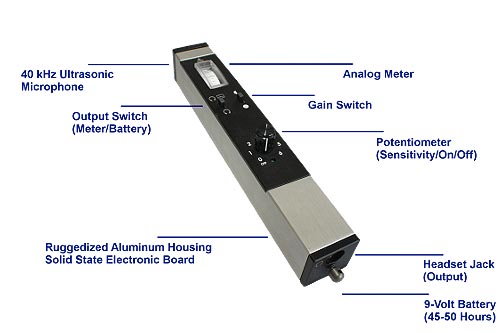

    • Fixed Frequency
    • High Sensitivity to all turbulent flow air, gas, or vacuum leaks
    • Easily adjustable sensitivity and gain
    • Lightweight, one-handed operation
    • Converts ultrasound to easily recognizable audible sounds
    • Standard 9-Volt Battery means no waiting to recharge

    Applications

    • Leak Detection (Pressure & Vacuum)
    • Electrical Inspection
    • Valves & Steam Traps
  • Receiver / Transmitter Dimensions

    8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
    4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)

    Receiver / Transmitter Weight

    11.6 oz (330 g)
    6.2 oz (175 g)

    Kit Shipping Dimensions

    17″ x 8″ x 14″ (43 x 20 x 35 cm)

    Kit Shipping Weight

    10 lbs (4.5 kg)

    Housing

    Extruded Aluminum, wall thickness .09″ (2.3 mm)

    Battery

    9-Volt Alkaline (> 45 continuous hours use)

    Distance of Reception

    Up to 150 feet (45 m)

    Sensitivity Threshold

    Minimum Intensity: 10-12 W/m2 (0 dB SPL)
    Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40kHz

    Frequency Bandwidth

    1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)

    Operating Temperature Range

    -4° to +130° F (-20° to +54° C)

    Headset

    Industrial Grade/600-Ohm Impedance
    21-24 dB External Noise Attenuation
