產品功能
-
Devanathan-Stachurski 滲透槽
DEVANATHAN-STACHURSKI PERMEATION CELL, MODEL AMODEL ATheDevanathan-Stachurski Permeation Cell is an electrochemical double-compartment, four-electrode setup. It is typically used to investigate hydrogen permeation in steels and other alloys (diffusion constants of hydrogen in materials, density of trap sites and trap energies) as well as to evaluate ion-exchange membranes (gas diffusion coefficient/crossover, gas solubility and gas permeability typically of H2, O2, CO and H2S). Moreover, this cell can be also used with Impedance Spectroscopy to measure ionic conductivity of membrane in 2- and 4-probe setup. In the former case, a current is applied between polarizing electrodes while potential is measured across separate reference electrodes. The measurement is therefore agnostic to any side reactions occurring at the polarizing electrodes. Luggin capillaries that make an ionic connection between permeated material and reference electrode, minimize the contribution from the ohmic drop in an aqueous electrolyte. Those Luggin capillaries are located closely to the studied permeable material and outside of the current path between polarizing electrodes. The cell elements are constructed with materials that are inert to the sample (PEEK and other fluorinated plastics). It well fits aqueous (FKM O-Rings and gaskets) electrolyte requirements. An organic electrolyte version is available on request. The construction is gas tight. Reference electrodes and polarizing electrodes are not included in the setup and should be added to the quotation separately.
加入諮詢加入諮詢 -
樣品支架
SAMPLE HOLDER 15 MM X 15 MM15 MM X 15 MMThe sample holder (known also as flat specimen holder) is used for holding flat, circular or square/rectangular samples. It enables contacting the sample from the front (e.g. ITO/FTO glass, Monolayer Graphene on SiC, or Boron-Doped Diamond thin film on various substrates) and from the back (e.g. metal specimen, Glassy Carbon plate, Boron-Doped Diamond plate). The nominal aperture is 0.07cm2, but other value can be provided on request. The large electrical contact with copper foil surface (not being in contact with an electrolyte) ensures optimal current collection by minimizing electrical resistance and unifying current distribution. The rod with electrical connection has a diameter of 6 mm, which makes the sample holder compatible with our voltammetry cells and jacketed cells, as long as it fits in. We may also provide an adapter to install this sample holder in openings larger than 6 mm dia.
The sample holder elements are constructed with materials that are inert to the electrochemical system (PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is well sealed which prevents the electrolyte to leak inside.加入諮詢加入諮詢 -
帶支架的鉑金塗層鈦網電極
PLATINUM COATED TITANIUM MESH ELECTRODE WITH HOLDER一套10個The metal counter (auxiliary) electrode is provided in electrochemical cell as a current sink to shunt excess current away from the reference electrode. Platinum Coated Titanium Mesh Electrode is a cheap alternative to pure Platinum Electrodes like Platinum Gauze Electrode or Metal Wire Auxiliary Electrode. Platinum coating makes this counter electrode inert under the reaction conditions and provides catalytic properties. The electrode is installed in the Basic Sample Holder (1 pcs included in the set), which allows full immersion of the electrode in the electrolyte (wet Tantalum contact). It well fits aqueous and organic solvent electrolyte requirements. Electrode size is customizable.
加入諮詢加入諮詢 -
微流體壓力感測器 - MPS
MICROFLUIDIC PRESSURE SENSOR - MPSMPS- 液體和氣體壓力監測
在您設置的任何地方測量壓力 - 壓力監測和控制
與Elveflow的感測器讀取裝置或壓力控制器搭配使用 - 寬廣的流量範圍
Elveflow 的5種感測器覆蓋了-1 bar to 7 bar的壓力範圍 - 高精確度
0.2 %的滿刻度
加入諮詢加入諮詢 - 液體和氣體壓力監測
-
微流體線上壓力感測器 - MFP
MICROFLUIDIC INLINE PRESSURE SENSOR - MFPMFP- 液體和氣體壓力監測
在您設置的任何地方測量壓力 - 壓力監測和控制
>與Elveflow的感測器讀取裝置或壓力控制器搭配使用 - 大壓力範圍
單一感測器從0到16 bar - 高精確度
高達 2 % 滿刻度
加入諮詢加入諮詢 - 液體和氣體壓力監測
-
四通道感測器讀取裝置 - MSR
MICROFLUIDIC SENSOR READER - MSRMSR- 快速和準確
5 ms的響應時間 和16 bits的信號解析度 - 同步讀取
最多可連接4個感測器 - 相容性
適用於Elveflow所有的壓力和流量感測器
加入諮詢加入諮詢 - 快速和準確
-

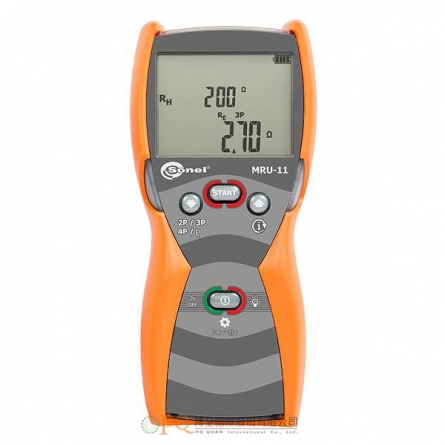

MRU-11
Earth Resistance and Soil Resistivity MeterMRU-11The Sonek MRU-11 earth resistance and soil resistivity meter is a simple meter that allows for measuring the earth resistance using the 3 pole and 4 wire method and the soil resistivity using the Wenner method. The instrument is easy to use, interference resistant and highly accurate.
MRU-11 is a basic device which, on the basis of the measurement result obtained, allows for checking the quality of the earthing system. With its ergonomic design, durable and robust casing and large, easy-to-read display, the meter is ideal for use in the field as well as in most work environments.加入諮詢加入諮詢 -
消防專用熱像儀
Thermal Camera for FirefightingGF5000GF5000 是 SATIR 最新機型的熱像儀，是專為消防行業專用而設計。
產品特色具有紅外線探測器功能，可以為最終用戶提供 384x288 像素高解析度的圖像呈現，並可對影像進行詳細的數位分析。
GF5000 有兩個溫度顯示欄位，一是靜態溫度可作為參考值；另一欄位用於顯示突然變化的溫度。
GF5000 的設計符合美國 NFPA 標準，產品設計不僅符合人體工程學，製造方式從耐熱材料，實地操作和具有 IP67 ，都代表具有防水和防塵的防護功能。加入諮詢加入諮詢 -
經濟手持式多功能熱像儀
Multi-Application Thermal ImagerMinIR- 非致冷式晶片-高品質檢測
- 50Hz影像更新率-畫面即時更新
- 可更換鏡頭設計-手動聚焦鏡頭以利更優異的圖像呈現
- 雷射點-更容易定位目標
加入諮詢加入諮詢 -

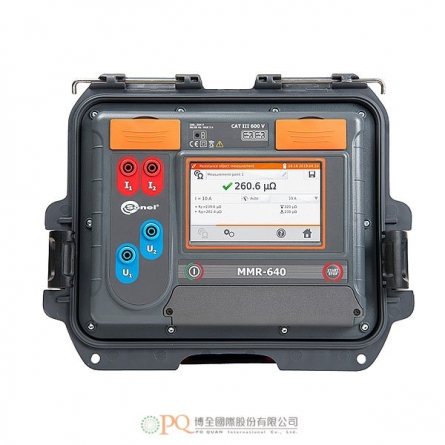

MMR-640
Low Resistance MeterMMR-640The MMR-640 meter is designed to measure very low resistance of resistive objects. This product is made to be used in
power plants, railways and maintenance companies to measure resistance of:加入諮詢加入諮詢
