斷路器開關動作時間測定器

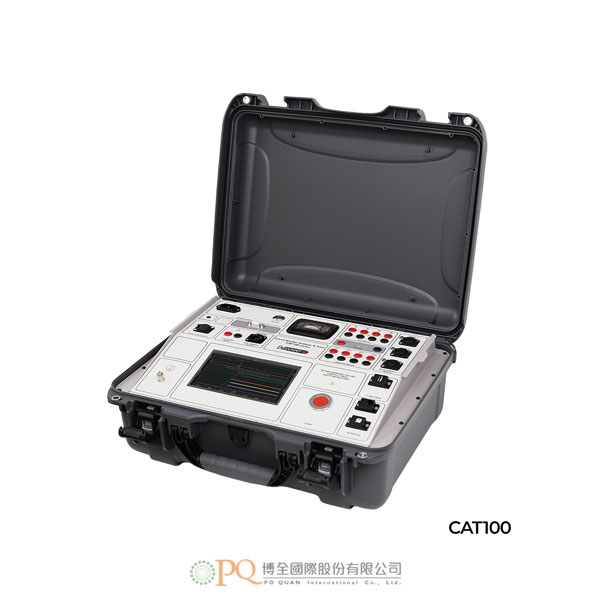

Circuit Breaker Analyzer & Timer 型號:CAT 100 Series
CAT100 系列繼承了市場領先的 CAT 標準系列的所有功能和經驗。

每台 CAT100 系列設備(3 或 6 個主接點通道)都可使用內置電池供電,可工作長達 8 小時。

CAT100 採用特有的觸控螢幕界面,可大大節省各類中壓和高壓斷路器的測試準備和結果分析時間。通過視覺式的 7" 彩色觸控螢幕,可使CAT100 以獨立設備的形式分析圖形和數字結果。
  • CAT100 系列繼承了市場領先的 CAT 標準系列的所有功能和經驗。

    每台 CAT100 系列設備(3 或 6 個主接點通道)都可使用內置電池供電,可工作長達 8 小時。

    CAT100 採用特有的觸控螢幕界面,可大大節省各類中壓和高壓斷路器的測試準備和結果分析時間。通過視覺式的 7" 彩色觸控螢幕,可使CAT100 以獨立設備的形式分析圖形和數字結果。

    CAT100 系列可以記錄:

    • 最多可同時對6 個主接點(每相 2 個斷口)的開關動作時間測量,還包括預插入電阻(如果斷路器中存在)和 4 個輔助觸點。
    • 測量預插入電阻(如果斷路器中存在)的電阻值。
    • 同時測量兩個線圈電流(跳閘和合閘)。
    • 最多可測量四個類比訊號(變電站所內電壓、馬達電壓或任何其它類型的類比訊號)。
    • 測量斷路器運動機件的位移、接觸摩擦、超程、回彈、阻尼時間和平均速度。

    測試結果以表格和圖形形式列印在 58 mm(2.28  英寸)熱感式列表機(選購配件)上。

  • Main contact inputs
    • Number of contact inputs: up to 6(3x2), 2 per phase
    • Each channel detects Main and pre-insertion
    resistor contacts.
    • Closed ≤ 10 Ω
    • Resistor contacts range 10 Ω to 5 kΩ
    • Open ≥ 5 kΩ
    Open circuit voltage: 20 V DC
    Short circuit current 50 mA
    • Each channel measures resistance of preinsertion resistors
    Coil driver
    • Number of channels: 2 (Trip and Close coil)
    • Two separate outputs for coil triggering
    • Driver characteristics: 300 V DC max, 35 A
    DC max
    • Electronic drivers provide superior timing
    control
    • Overcurrent and overvoltage protection
    • Coil supply input: 300 V DC max, 35 A DC
    max
    Auxiliary inputs
    • Number of channels: 4, galvanically isolated
    • User selectable: dry or wet
    •  Contact sensing (dry):
      Open circuit voltage 24 V DC
      Short circuit current 5 mA
    • Voltage sensing (wet):
      Working voltage 300 V DC, 250V AC
      Low activation mode ± 5V
      High activation mode ±10V
    • Overcurrent and overvoltage protection
    Current measurement
    • Current measurement for Trip and Close coil,
    2 channels, Hall-Effect sensor
    • Range ±35 A DC to 5 kHz
    • Accuracy: ± (0,5 % rdg + 0,1 % FS)
    • Graphic presentation: currents waveform is
    displayed with a resolution of 0,1 ms

    Analog inputs
    • 2 channels – Coil current measurement
    • 4 Voltage channels, each channel has four
    measurement ranges: ±1 V, ±5 V, ±60 V
    and ±300 V AC/DC
    The analog inputs are isolated with respect to all
    other circuits

    Time measurement
    Time measurement resolution:
    • 0.025 ms for 1 s test duration (sampling rate 40 kHz)
    • 0,1 ms for 2 s test duration (sampling rate 10 kHz)
    • 1 ms for 20 s test duration (sampling rate 1 kHz)
    • 10 ms for 200 s test duration (sampling rate 100 Hz)
    Time accuracy: 0,05% of the reading ± resolution

    DC output
    24 V voltage supply for current clamps

    PC Interface
    • USB
    • Ethernet

    Display
    • Touch screen color display 7 inch.
    Breaker operation
    • Close (C)
    • Open (O)
    • Close-Open (C-O)
    • Open-Close (O-C)
    • Open-Close-Open (O-C-O)
    The user can select any desired test sequence

    Mains power supply
    • Connection according to IEC/EN60320-1;
    UL498, CSA 22.2
    • Mains supply: 90 V - 264 V AC
    • Frequency: 50/60 Hz
    • Input power: 250 VA
    Printer (optional)
    • Thermal printer
    • Graphic and numeric printout
    • Paper width 58 mm (2.28 in)
    • Printer operating temperature:
    - 20 ºC - + 70 ºC / - 4 ºF - +158 ºF

    Internal battery supply (optional)
    • Built-in rechargeable battery
    • Li-Ion 14.4 V Cell – 6800 mAh 98 Wh
    Transducer input
    • Digital transducer inputs: 1
    • Analogue transducer inputs: 1

    Applicable standards
    • Installation / Overvoltage: Category II
    • Pollution: Degree 2
    • Safety: LVD 2014/35/EU (CE Conform)
     Standard EN 61010-1
    • EMC: Directive 2014/30/EU (CE Conform)
     Standard EN 61326-1
    • CAN/CSA-C22.2 No. 61010-1
    Time measurement triggers
    • External trigger: 2 channels (trigger input
    voltage: 10 V – 300 V AC/DC)
    • Coil currents: threshold level user selectable
    • Auxiliary inputs (change of contacts state)

    Dimensions and weight
    • Dimensions (W x H x D):
    o 503 mm x 406 mm x 193 mm
    19.8 in x 15.9 in x 7.6 in
    • Weight:
    o 8.5 kg / 18.7 lbs.
    Environmental conditions
    • Operating temperature:
    - 20 ºC to + 55 ºC / - 4 ºF to + 131 ºF
    • Storage & transportation:
    - 40 ºC to + 70ºC / - 40 ºF to + 158 ºF
    • Humidity 0 % - 95 % relative humidity, noncondensing
