測試治具

•

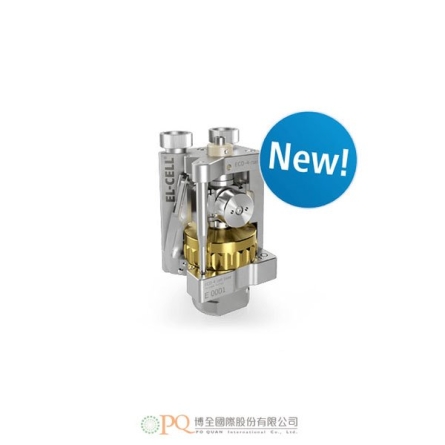

  ECD-4-nano

  ECD-4-nano

  ECD-4-nano

  Advanced Electrochemical Dilatometer for the measurement of electrode expansion with nanometer resolution.

  • Capacitive displacement sensor (range 250 μm, resolution better than 5 nm)
  • Additional gas pressure (0 to 3 bar) and temperature sensor (-20 to 80° C)
  • Cableless connection via PAT socket, with electronic cell tag (PAT-Button)
  • PRODUCT DETAILS

  加入諮詢

  加入諮詢
•

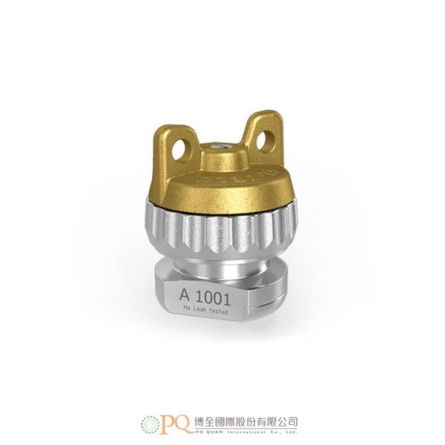

  PAT-Cell-Force

  PAT-Cell-Force

  PAT-Cell-Force

  Operando test cell for investigating battery materials under defined force, temperature and gas pressure

  • Force adjustment and measurement, up to 1500 Newton
  • Built-in temperature, force and gas pressure sensors
  • Cableless connection via PAT socket, with electronic cell tag (PAT-Button)

  加入諮詢

  加入諮詢
•

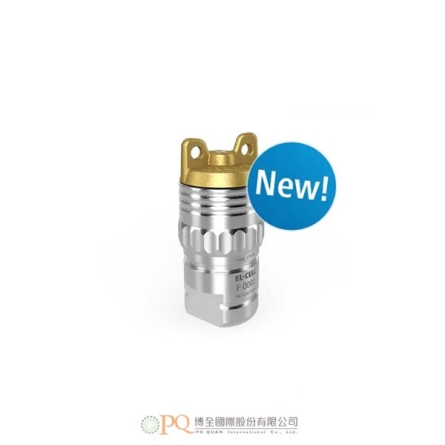

  PAT-Cell-HT

  PAT-Cell-HT

  PAT-Cell-HT

  Heat resistant PAT series test cell for up to 200°C using the innovative PAT-Core concept

  • Continuous operating temperature: up to 200°C
  • Superior corrosion resistance for next-generation battery chemistries
  • Compatible with solid state electrolyte membranes

  加入諮詢

  加入諮詢
