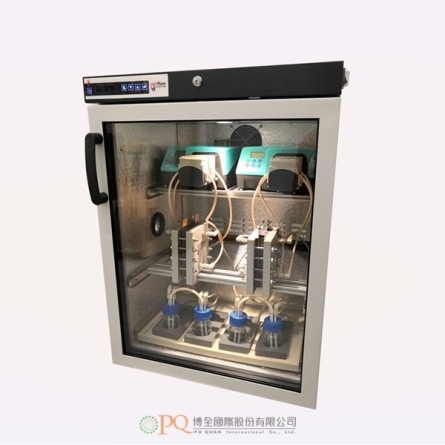

實驗室研究系統

•

  Laboratory research system

  LR-1

  The Pinflow Lab-scale test rig for RFB is a standard test equipment for testing of redox flow batteries and functional components of redox flow batteries. Product allows to test up to two flow lab-cells in one test bench depending on the configuration.

  加入諮詢

  加入諮詢
•

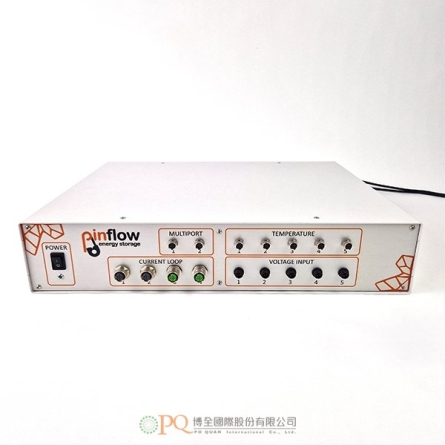

  Data acquisition module 1

  DAM-1

  Data acquisition module with four channels and 16 inputs. Inputs (per one channel): 1× current loop 4–20 mA (pressure measurement), 1× temperature (for Pt100), 1× potential ±5 V (OCV measurement).

  加入諮詢

  加入諮詢
•

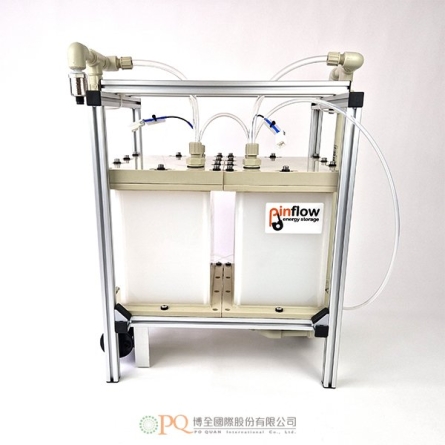

  Lab-rig extension

  LR-1-5L

  Lab-rig extension (LR-1-5L) is module tailored for testing larger cells and stacks up to 100 cm2. Lab-rig comes with System Control Module (SCM-01) capable of controlling lab-rig and collecting data from necessary sensors, such as temperature, voltage senses and more.

  加入諮詢

  加入諮詢
•

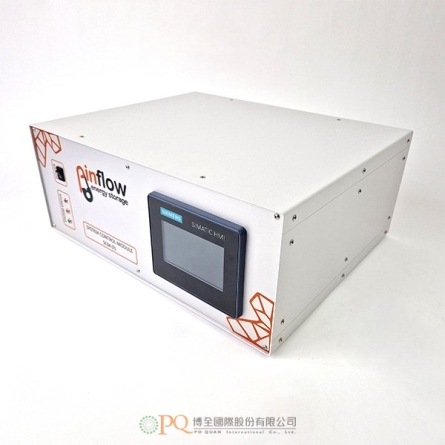

  System Control Module

  SCM-01

  System Control Module 01 (SCM-01) is designed for system control of small electrochemical laboratory units which are meant to test, confirm proof of concept or use of small-scale electrochemical methods for fast results.

  加入諮詢

  加入諮詢
