實驗室研究系統

產品說明

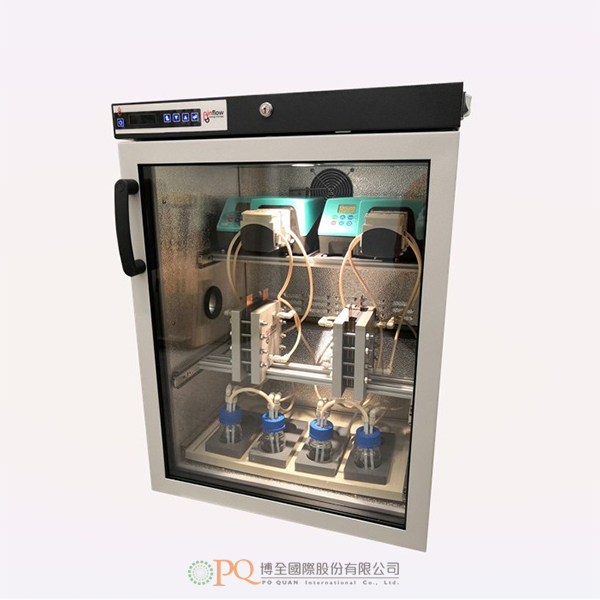

Pinflow 實驗室級液流電池（RFB）測試台，是專用於測試氧化還原液流電池及其功能性組件的標準測試設備。依據規格配置，該產品允許在單一測試工作台上同時測試多達兩個實驗室液流電池。測試台配備了恆溫箱，以確保實驗過程中維持恆定溫度，並配置蠕動泵負責將電解液輸送至液流電池中。

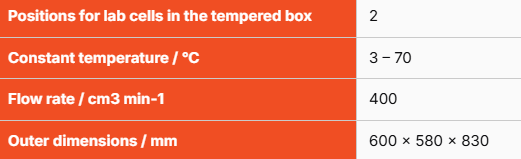

恆溫箱內液流電池的安裝槽位	2
恆溫溫度 / °C	3-70
流速 / cm3 min-1	400
外部尺寸/ mm	600X580X830

The Pinflow Lab-scale test rig for RFB is a standard test equipment for testing of redox flow batteries and functional components of redox flow batteries. Product allows to test up to two flow lab-cells in one test bench depending on the configuration. Test bench is equipped with tempered box to keep constant temperature during the experiment and with peristaltic pump for delivery of the electrolyte to the flow cells.
