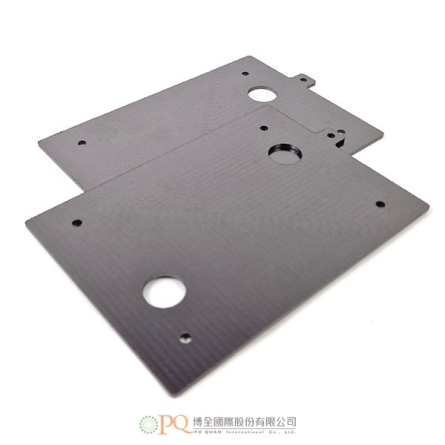

  Set of flat bipolar plates LC20

  Set of flat bipolar plates LC20

  BP-LC20-S

  The flat bipolar plate set is designed for use with PinFlow lab-scale flow cells. The plates provide a reliable current distribution and mechanical support for electrochemical experiments in redox flow batteries and related electrochemical systems. Manufactured from chemically resistant, electrically conductive materials, the bipolar plates ensure stable operation under a wide range of electrolyte chemistries and operating conditions.

  加入諮詢

  加入諮詢
•

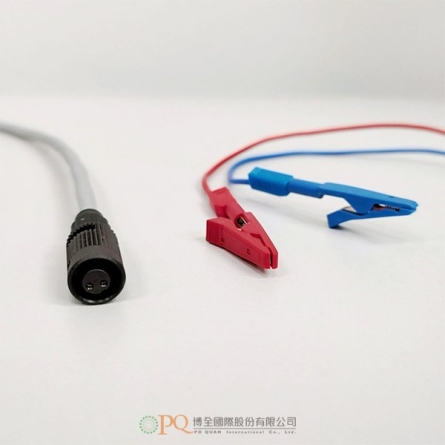

  Cable for measuring cell

  C-MC

  The Cable MC is a shielded twin cable designed for connecting a measuring cell to a data acquisition module. It features insulated copper conductors and a length of 2 meters, terminated with blue and red alligator clips on banana connectors at one end and a bayonet female connector at the other.

  加入諮詢

  加入諮詢
•

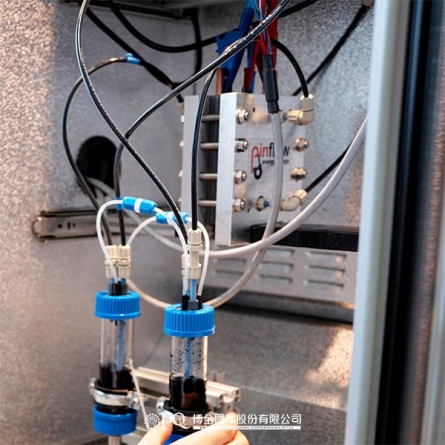

  Electrolyte tubing 1/8"

  ET-3

  Tubing for connecting cell or stack to a vessel set in a tempered box for low-volume systems. Main tubing material PFA, o.d. ⅛" (3.18 mm), i.d. 1.57 mm Replaceable segments for pumphead (two extra segments included).

  加入諮詢

  加入諮詢
•

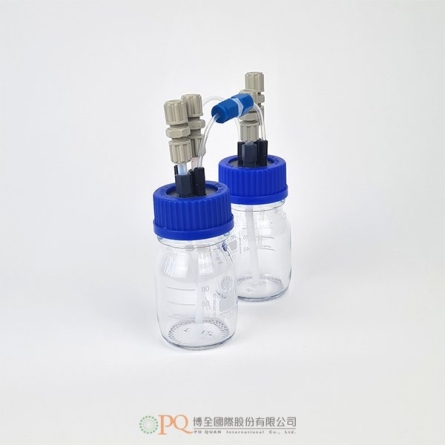

  Laboratory vessel set 100-3

  LVS-100-3

  Set of two vessels designed as electrolyte reservoirs for a lab cell (up to 50 cm²). Nominal capacity is 2 × 50 ml (2 × 100 ml max). Electrolyte and purge tubing of o.d. ⅛", i.d. 0.062" (PFA capillary).

  加入諮詢

  加入諮詢
•

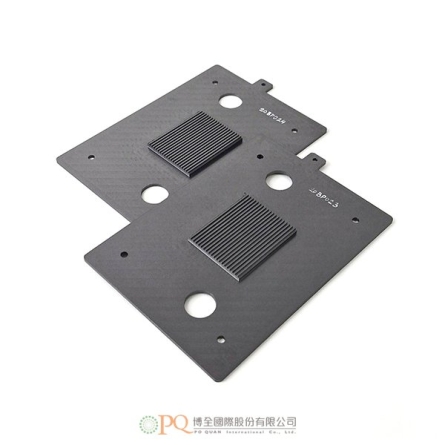

  Set of non-flat bipolar plates LC20

  BP-LC20-S-X

  Non-flat bipolar plates with protrusions for adjustable electrode gap thickness. Available with interdigitated, serpentine or fully customized flow field geometries.

  加入諮詢

  加入諮詢
•

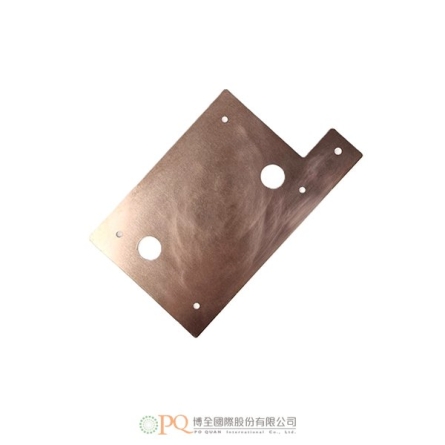

  Current collector LC20

  CC-LC20

  Copper current collector in a lab cell or stack (up to 20 cm²).

  加入諮詢

  加入諮詢
•

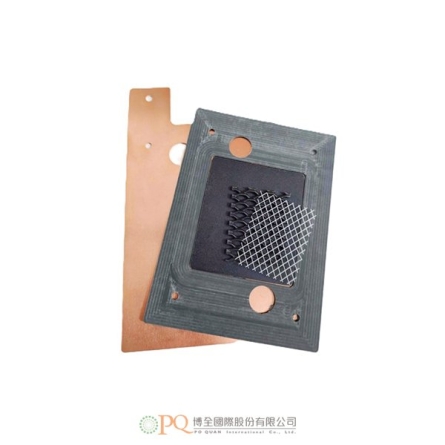

  Electrolyser collector LC20

  CC-LC20-E

  The Electrolyser collector LC20 is a high-performance current collector assembly designed for electrochemical systems with an active area of 20 cm². It includes a copper current collector, a PVC spacer, a sheet and mesh titanium anode coated with a mixed metal oxide layer, and two PVDF turbulizers.

  加入諮詢

  加入諮詢
•

  Felt cutter 20

  CUT-20

  Manual cutter for felt electrodes of area 4, 5 or 20 cm².

  加入諮詢

  加入諮詢
•

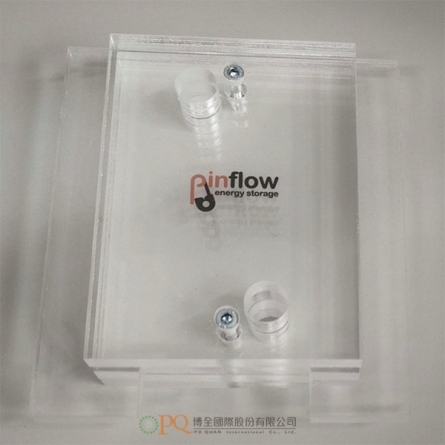

  Assembly stand 20

  MS-LC20

  Assembly stand designed for easy and stable assembly of cells or stacks with active area up to 20 cm².

  加入諮詢

  加入諮詢
•

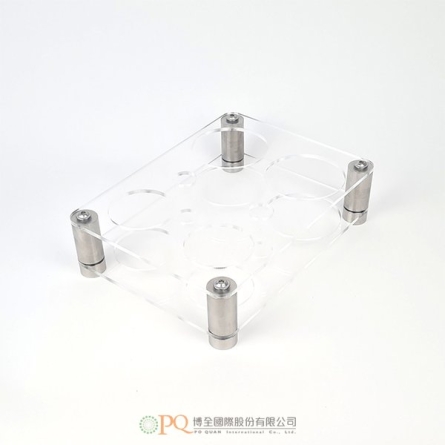

  Vessel holder

  VH-12

  Combined plastic holder for two pairs of vessels (2× 100 ml, 2× 250 ml).
