電解槽集電器 LC20

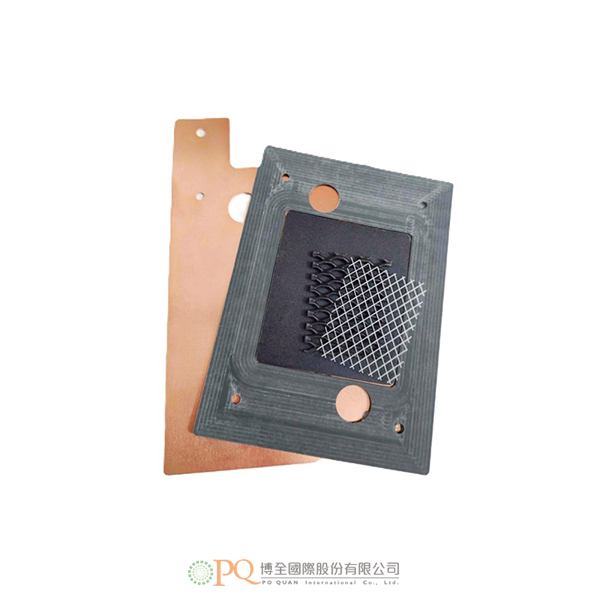

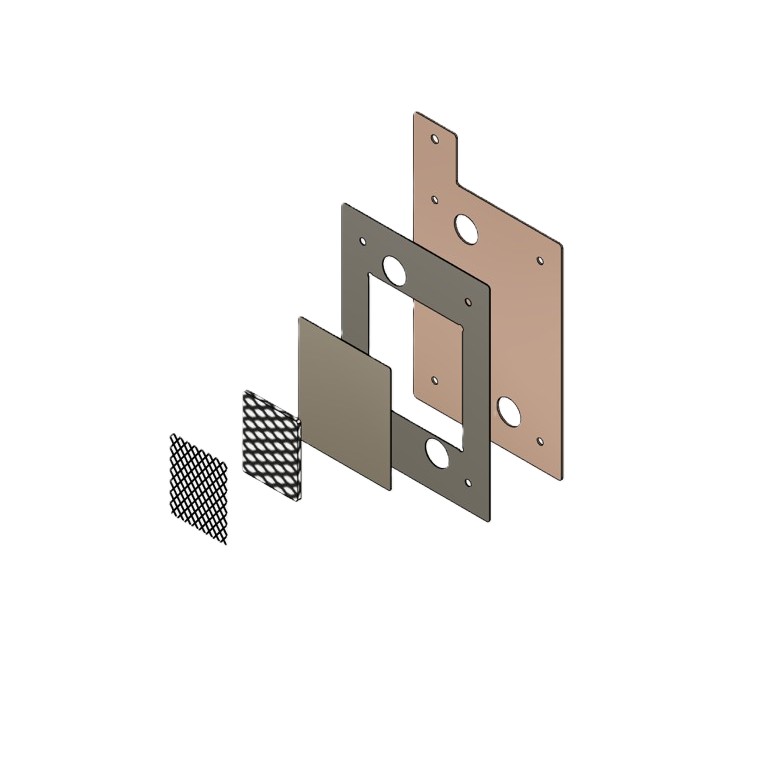

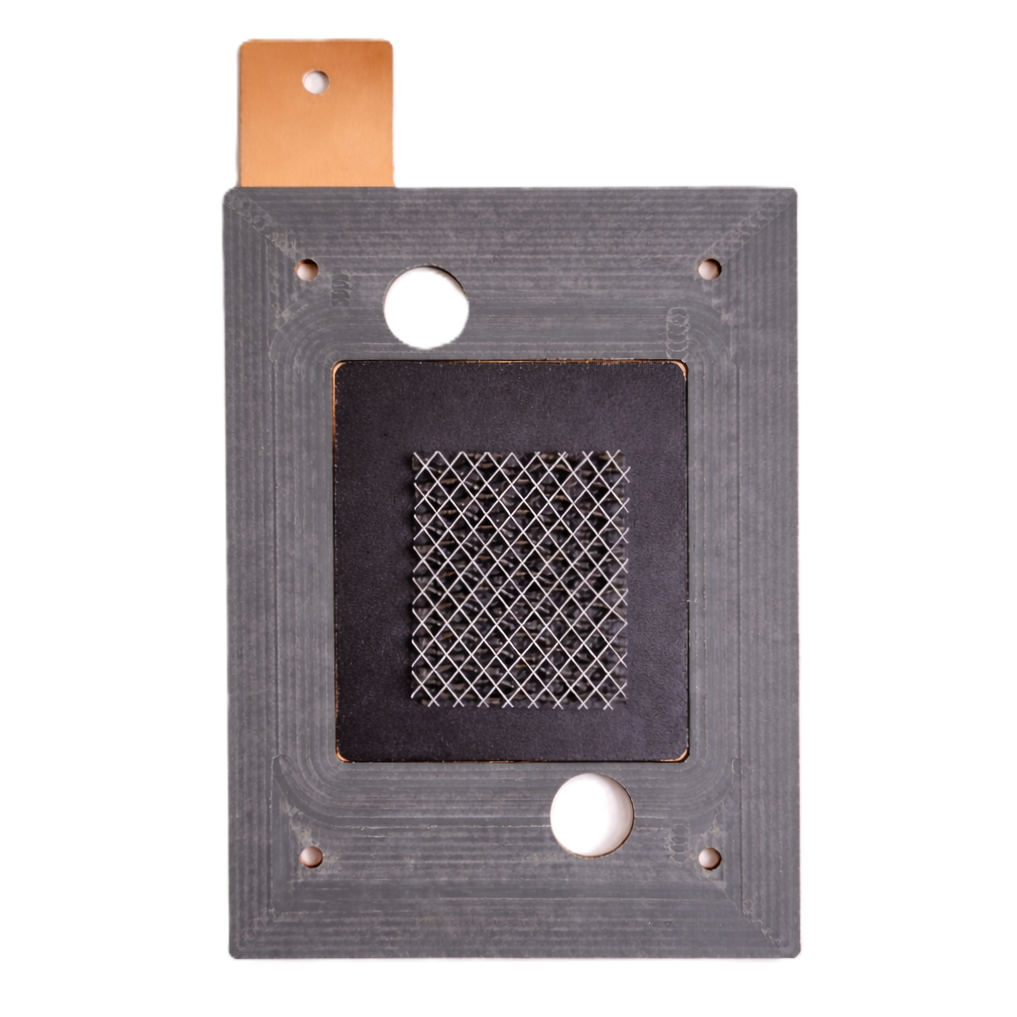

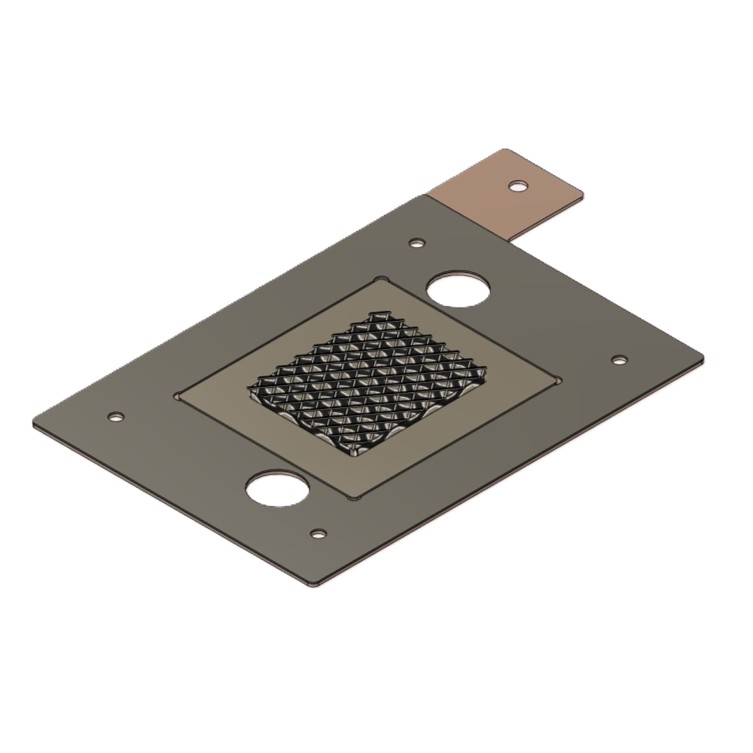

此款高性能集電體模組，專為有效面積 20 cm² 的電化學系統而設計。其組件包含銅集電體、PVC 間隔片、鍍有混合金屬氧化物層的鈦片與鈦網陽極，以及兩個 PVDF 擾流器。此配置可提升電化學效率、改善傳質效果，並保護膜免受機械應力。 網狀電極增加有效表面積，改善反應動力學；擾流器不僅優化電解液流動，亦能確保相對毡電極的均勻壓縮，並防止膜受到網狀電極尖角的損傷，可將標準實驗室電池轉換為電解槽，並與 Lab cell 20 的組件完全相容。

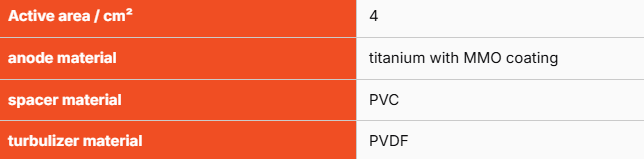

有效反應面積 / cm²	4
陽極材質	表面覆有混合金屬氧化物塗層的鈦材
間隔材質	聚氯乙烯
擾流元件材質	聚偏氟乙烯

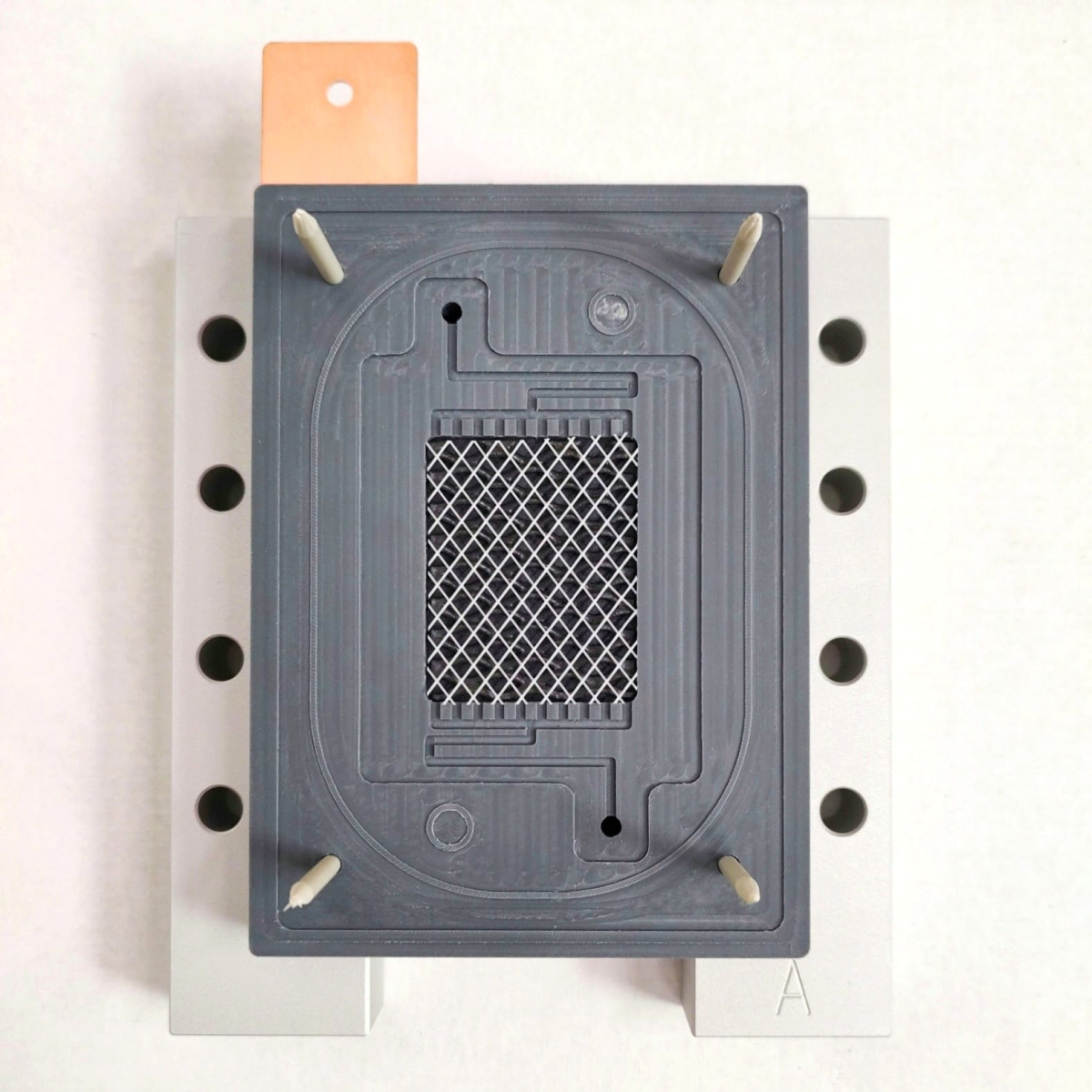

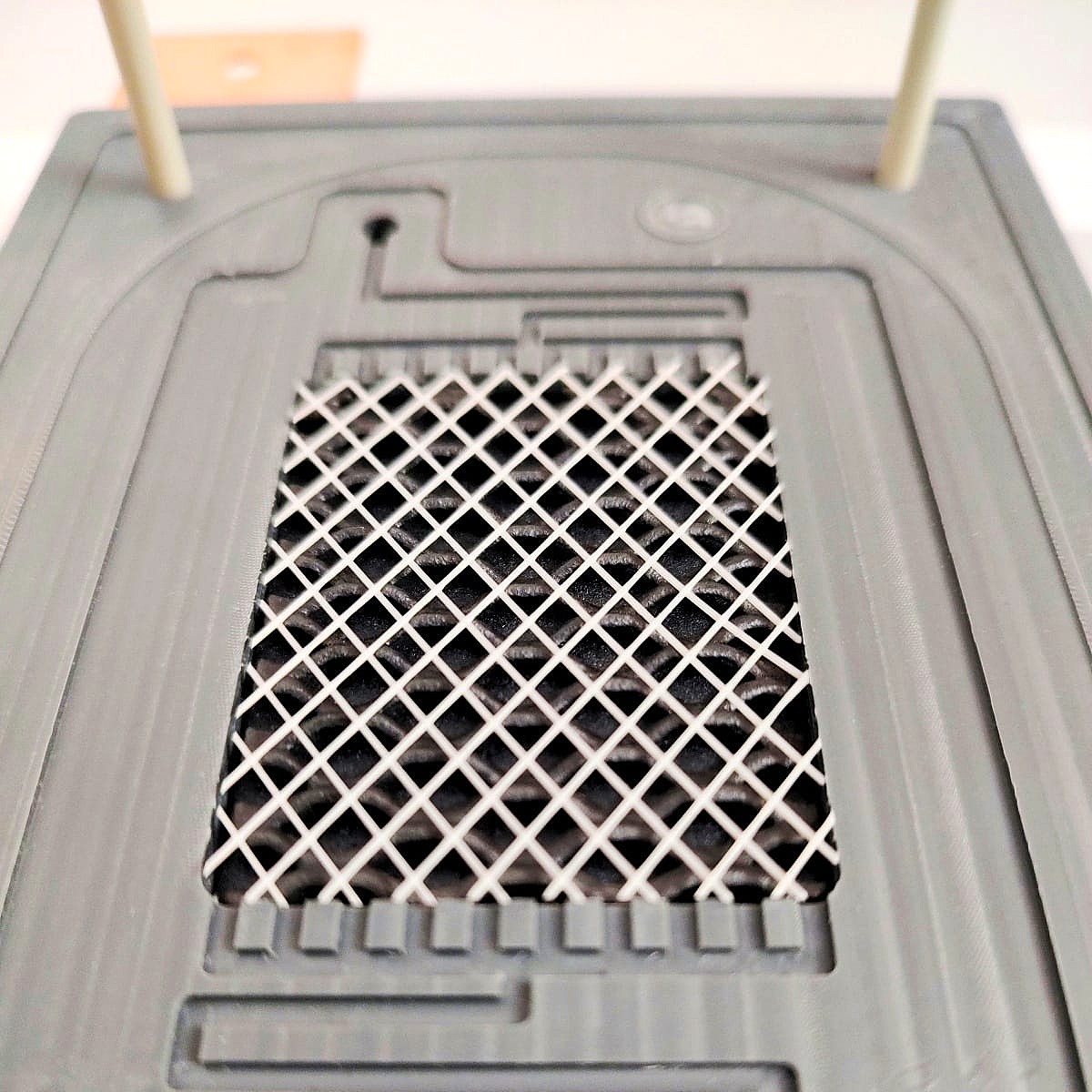

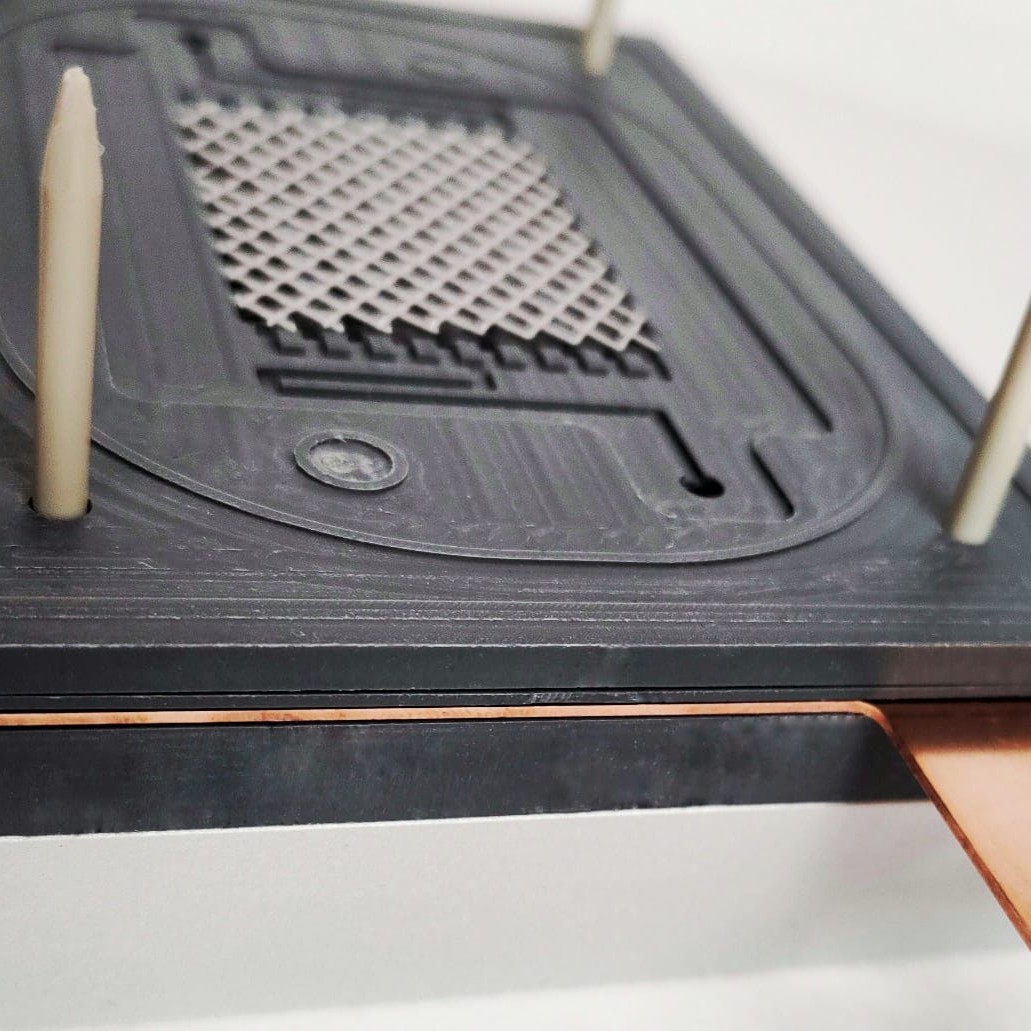

The Electrolyser collector LC20 is a high-performance current collector assembly designed for electrochemical systems with an active area of 20 cm². It includes a copper current collector, a PVC spacer, a sheet and mesh titanium anode coated with a mixed metal oxide layer, and two PVDF turbulizers. This configuration enhances electrochemical efficiency, improves mass transfer, and protects the membrane from mechanical stress. The mesh electrode increases the effective surface area, improving reaction kinetics. The turbulizers not only optimize electrolyte flow but also ensure uniform compression of the opposite felt electrode and shield the membrane from sharp edges of the mesh. The Electrolyser collector LC20 can be used to convert a standard lab cell into an electrolyser, as it is fully compatible with the components used in, for example, Lab cell 20.
