大型變壓器絕緣油再生裝置 - CMM-12R

CMM-12R OIL REGENERATION SYSTEMS 型號:CMM-12R

GlobeCore的再生工藝將已受汙染的絕緣油恢復到新油的狀態。這個過程使我們有可能用以往需要再處理的絕緣油來填充變壓器。好處是,變壓器中的絕緣油可以在變壓器的整個使用壽命內使用而無需再次更換新油,它將為您節省更多的成本。

GlobeCore CMM-R系統旨在通過恢復介質絕緣油的絕緣強度和化學成分來延長變壓器的使用壽命。

  • GlobeCore的再生工藝將已受汙染的絕緣油恢復到新油的狀態。這個過程使我們有可能用以往需要再處理的絕緣油來填充變壓器。好處是,變壓器中的絕緣油可以在變壓器的整個使用壽命內使用而無需再次更換新油,它將為您節省更多的成本。

    GlobeCore CMM-R系統旨在通過恢復介質絕緣油的絕緣強度和化學成分來延長變壓器的使用壽命。

    在絕緣油再生過程中,絕緣油裂解的產物和酸性化合物被去除,油品變得清澈,抗氧化性得到改善,同時可燃性氣體溶解度降低。

    優勢

    GlobeCore 為變壓器製造商和變壓器服務提供專業商用絕緣油再生系統。

    GlobeCore 的再生系統都裝載了一種能夠擷取所有油中裂解出的產物吸收劑。

    GlobeCore 再生系統對於第一次的吸附劑汰換都可在使用後的三年。強調無須過多頻繁地汰換消耗品和與節省更多的昂貴勞動力所著稱。

    再生系統可與脫氣裝置相結合,也可以作為獨立的系統購買。

    另一特點,GlobeCore 再生系統可以與您現有的脫氣或乾燥裝置結合使用,無須額外耗費更多的購買成本。

    每個GlobeCore 的再生系統都可以進行客製化處理,並包括許多可選購功能,如:

    • 額外的真空泵組件,用於變壓器的抽真空。

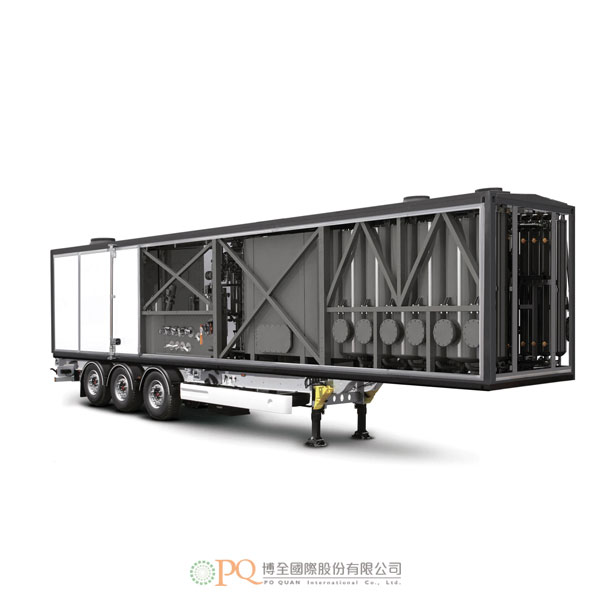

    • 安裝在拖車或聯結車上。
    • 油流的入口和/或出口濕度計。
    • 通過智慧手機或電腦進行遠端控制和過程監控。
    • 作為溫控用的人員操作間。
  • Parameter

    Value

    1 Capacity, l/h (gpm)

    1000 (4,4)

    2 Oil losses during operation, %

    2-25

    3 Maximum allowed oil temperature, оС (оF)

    90 (194)

    4 Outlet pressure, bar (psi)

    2,5 (36,25)

    5 Oil heater power, kW

    24

    6 Rated vacuum suction speed, l/h (gpm)

    280 000 (1232,8)

    7 Fuller’s Earth mass, kg (lbs)

    1600 (3527,4)

    8 Electrical power parameters
      Voltage, V

    Customizable

    Frequency, Hz
    9 Coarse filtration fineness (mesh filter), µm

    100

    10 Pre-filtration fineness, µm

    25

    11 Fine filtration fineness, µm

    5

    12 Dimensions, mm (in)
      Length

    5500(217)

    Width

    2320 (91)

    Height

    2450 (96)

    13 Weight, kg (lbs)

    6000 (13227)

    Regeneration of the oil in a transformer restores used oil to new like condition:

    Parameter Before processing After processing
    Moisture content by weight,g/t (ppm) as per IEC 733; ASTM D-1533 43 5
    ISO 4406 industrial purity class -/18/16 -/14/12
    Volumetric gas content % I.A.W.IEC 60599; ASTM D-3612 0.1
    Acid number, mg KOH/g I.A.W IEC 296; ASTM D-664 0.2 0.01
    Corrosive sulfur  I.A.W.*IEC 5662; ASTM D-1275 present absent
    Dielectric strength, kV I.A.W. IEC 156; ASTM D-18116 30 70
    Interfacial tension, N/m, at 25ºС  I.A.W.  IEC 6295; ASTM D-664 45
    Dissipation factor at 90ºС  I.A.W.IEC 247; ASTM D-924 0.095 0.001
    Oxidation stability I.A.W. IEC 74; 164 hours restored

    (*I.A.W. In Accordance With)

  • The GlobeCore regeneration process restores used oils to new like condition.  This process makes it possible to fill transformers with oil that would previously have required disposal.  The oil in the transformer can be used without replacement for the entire service life of the transformer.

    The GlobeCore CMM-R systems are designed to extend transformer service life by restoring the dielectric strength and chemical composition of dielectric insulating oil.

    In the process of oil regeneration, oil degradation products and acidic compounds are removed, the oil becomes clear, oxidation resistance is improved, while gas solubility is reduced.

    Advantages

    GlobeCore manufactures oil regeneration systems for both transformer manufacturers and for transformer service providers.

    GlobeCore units are loaded with a sorbent that captures all oil decomposition products.

    GlobeCore regeneration systems can use the same sorbent for up to 3 years before the first replacement.  No more need for consumables and costly labor related to replacement of exhausted sorbent on the job site.

    Regeneration systems can be combined with degassing units or can be purchased as stand-alone systems.

    GlobeCore regeneration systems can be used in combination with your existing degassing or drying unit.

    Each GlobeCore unit can be customized and includes a number of options:

    • An extra vacuum pump assembly for transformer vacuuming
    • Mounted on a trailer or a semi-trailer
    • Inlet and/or outlet moisture meters for the oil stream
    • Remote control and process monitoring via smartphone or PC
    • Climate Controlled Operator work room.
  • Parameter

    Value

    1 Capacity, l/h (gpm)

    1000 (4,4)

    2 Oil losses during operation, %

    2-25

    3 Maximum allowed oil temperature, оС (оF)

    90 (194)

    4 Outlet pressure, bar (psi)

    2,5 (36,25)

    5 Oil heater power, kW

    24

    6 Rated vacuum suction speed, l/h (gpm)

    280 000 (1232,8)

    7 Fuller’s Earth mass, kg (lbs)

    1600 (3527,4)

    8 Electrical power parameters
      Voltage, V

    Customizable

    Frequency, Hz
    9 Coarse filtration fineness (mesh filter), µm

    100

    10 Pre-filtration fineness, µm

    25

    11 Fine filtration fineness, µm

    5

    12 Dimensions, mm (in)
      Length

    5500(217)

    Width

    2320 (91)

    Height

    2450 (96)

    13 Weight, kg (lbs)

    6000 (13227)

    Regeneration of the oil in a transformer restores used oil to new like condition:

    Parameter Before processing After processing
    Moisture content by weight,g/t (ppm) as per IEC 733; ASTM D-1533 43 5
    ISO 4406 industrial purity class -/18/16 -/14/12
    Volumetric gas content % I.A.W.IEC 60599; ASTM D-3612 0.1
    Acid number, mg KOH/g I.A.W IEC 296; ASTM D-664 0.2 0.01
    Corrosive sulfur  I.A.W.*IEC 5662; ASTM D-1275 present absent
    Dielectric strength, kV I.A.W. IEC 156; ASTM D-18116 30 70
    Interfacial tension, N/m, at 25ºС  I.A.W.  IEC 6295; ASTM D-664 45
    Dissipation factor at 90ºС  I.A.W.IEC 247; ASTM D-924 0.095 0.001
    Oxidation stability I.A.W. IEC 74; 164 hours restored

    (*I.A.W. In Accordance With)
