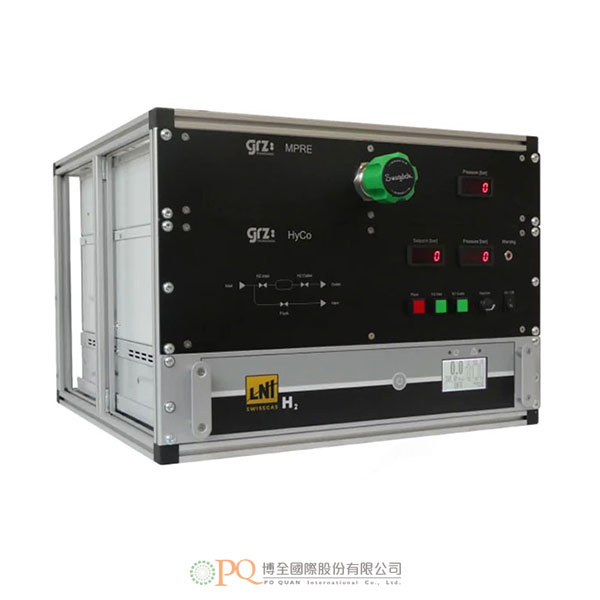

HyCo 儲氫輸送裝置

在實驗室環境中、有限的時間內現場儲存和壓縮氫氣，用以實現高壓純氫的快速儲存與輸送。
HyCo攜帶型壓縮機基於金屬氫化物的熱力學性質，由輸出壓力可變的儲氫裝置（高達90 Nl H₂的存儲量）組成。 在室溫下用低於10 bar的氫氣填充儲氣罐，並根據需要在10 bar到200 bar（2900 psi）的壓力範圍內輸送超純氫氣。
技術原理是是使氫分子與儲存材料接觸時，分子在氫原子中解離。 然後，這些原子被金屬化合物的間隙位置吸收。 此過程在接近環境壓力（低於10 bar）下發生，非常安全並且100%可逆。 在這種狀態下獲得的氫密度極高，是液態氫的兩倍，是加壓氣體的四倍。

• Near ambient pressure in idle mode
• Reaches 200 bar in less than 6 minutes
• Up to 90 Nl H₂ storage capacity (HyCo single)
• Maximal outlet flow rate: 800 Nml/min (HyCo single)
• Up to 180 Nl H₂ storage capacity (HyCo double)
• Maximal outlet flow rate: 1600 Nml/min (HyCo double)
• Variable outlet pressure from 10 up to 200 bar (145 up to 2900 psi)
• Versatile refill options such as electrolysers, low pressure hydrogen lines, or high pressure cylinders stored externally

Compact On-site H₂ Production and Compression for High Pressure H₂ Delivery in the Laboratory Environment
HyCo operates without moving parts – thus, it operates silently and requires no maintenance
HyCo is plug-and-play – no time-consuming setup is required
HyCo safely compresses hydrogen up to 200 bar (2900 psi)
HyCo delivers ultra pure H₂
HyCo is extremely safe

• Near ambient pressure in idle mode
• Reaches 200 bar in less than 6 minutes
• Up to 90 Nl H₂ storage capacity (HyCo single)
• Maximal outlet flow rate: 800 Nml/min (HyCo single)
• Up to 180 Nl H₂ storage capacity (HyCo double)
• Maximal outlet flow rate: 1600 Nml/min (HyCo double)
• Variable outlet pressure from 10 up to 200 bar (145 up to 2900 psi)
• Versatile refill options such as electrolysers, low pressure hydrogen lines, or high pressure cylinders stored externally
