Electrothermal > Melting Point Apparatus

1101D Mel-Temp

1101D Mel-Temp 型號：1101D Mel-Temp

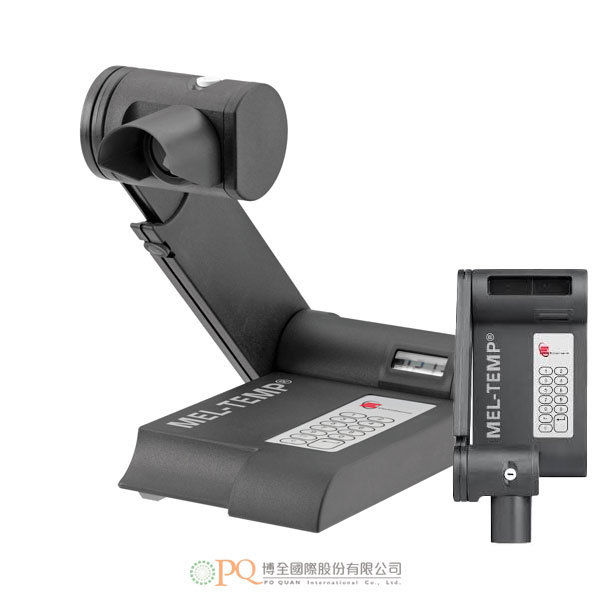

The Mel-Temp® Digital Melting Point Apparatus offers a quick and easy way to measure the melting points of samples at a budget price with a temperature resolution of ±1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification.
As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space.
Each Mel-Temp® Digital Melting Point Apparatus comes supplied with a pack of 100 capillary tubes.

加入洽詢

產品特點產品規格 Features Specifications

The Mel-Temp® Digital Melting Point Apparatus offers a quick and easy way to measure the melting points of samples at a budget price with a temperature resolution of ±1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification.

As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space.

Each Mel-Temp® Digital Melting Point Apparatus comes supplied with a pack of 100 capillary tubes.

Performance

• Membrane keypad with simple menus for intuitive use
• Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
• Digital microprocessor with ±1°C resolution provides fast warm-up and accurate temperature control
• Samples in 3 capillary tubes may be viewed simultaneously.

Safety and convenience

• 3 Audible beeps indicate that the oven temperature is stable and ready for sample
• Adjustable arm with viewing magnifier can be folded away into the unit
• Adjustable object lens for sharp focus
• Rotating viewing head and safety eye piece to protect against glare and hot zone
• Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
• Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required
• Improved calibration procedure using a calibration key

Mel-Temp® Model	1101D
Temperature range	Ambient to 400°C
Fixed temperature ramp rate	1°C per minute
Fast temperature ramp rate	10°C per minute
Temperature resolution	± 1°C
Accuracy	± 1
Temperature sensor	PT100 Platinum Resistance
40mm diameter removable lens	8X magnification with adjustable focus
Display	2 rows of 12 characters with backlit LCD
Colour	Black
Processor	32-bit processor
Keypad	13-key membrane
Capillary tubes	Accommodates 3 tubes up to 2mm OD
Tube Guide	Removal for cleaning and use of cold finger
LED	White LED illuminated oven
Melt memory	4 x 1 Melt memory capacity
Power requirements	100-240V, 50 / 60Hz, 15DC, 45W
Dimensions (d x w x h)	35.5 x 20 x 8cm
Weight	2.5kg

The Mel-Temp® Digital Melting Point Apparatus offers a quick and easy way to measure the melting points of samples at a budget price with a temperature resolution of ±1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification.

As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space.

Each Mel-Temp® Digital Melting Point Apparatus comes supplied with a pack of 100 capillary tubes.

Performance

• Membrane keypad with simple menus for intuitive use
• Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
• Digital microprocessor with ±1°C resolution provides fast warm-up and accurate temperature control
• Samples in 3 capillary tubes may be viewed simultaneously.

Safety and convenience

• 3 Audible beeps indicate that the oven temperature is stable and ready for sample
• Adjustable arm with viewing magnifier can be folded away into the unit
• Adjustable object lens for sharp focus
• Rotating viewing head and safety eye piece to protect against glare and hot zone
• Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
• Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required
• Improved calibration procedure using a calibration key

Mel-Temp® Model	1101D
Temperature range	Ambient to 400°C
Fixed temperature ramp rate	1°C per minute
Fast temperature ramp rate	10°C per minute
Temperature resolution	± 1°C
Accuracy	± 1
Temperature sensor	PT100 Platinum Resistance
40mm diameter removable lens	8X magnification with adjustable focus
Display	2 rows of 12 characters with backlit LCD
Colour	Black
Processor	32-bit processor
Keypad	13-key membrane
Capillary tubes	Accommodates 3 tubes up to 2mm OD
Tube Guide	Removal for cleaning and use of cold finger
LED	White LED illuminated oven
Melt memory	4 x 1 Melt memory capacity
Power requirements	100-240V, 50 / 60Hz, 15DC, 45W
Dimensions (d x w x h)	35.5 x 20 x 8cm
Weight	2.5kg
