固定式開關設備測試系統

ACTAS C160/C320固定式測試系統，不論驅動單元的型式為何，均可用於對各類開關設備例如斷路器、隔離開關或接地開關進行全自動的最終出廠測試、型式試驗與功能測試。系統可實時測量與評估開關性能所需的所有電氣與機械參數，而無需打開主接觸室或驅動單元。該系統配備類比與增量輸入通道，用於擷取各類類比量；同時具備二進制測量通道，可用於輔助接點與主接點的測試。標準機型可分別對每極控制3組開啟線圈電路及2組閉合線圈電路。
隨附的軟體套件可用於執行各類測試，從自主運行的測試程序，到針對開關設備的完整自動測試流程皆可涵蓋。
符合以下標準及指引︰
EN 61010-1: 2011
EN 61010-2-201: 2011
EN 61326-1: 2013
機櫃設計

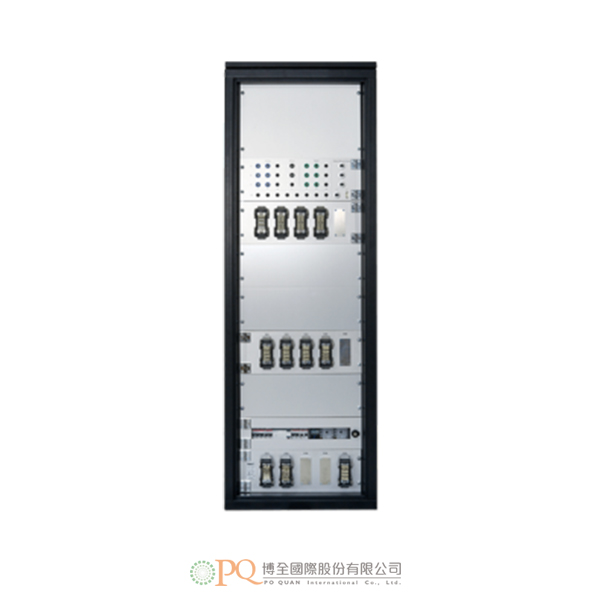

ACTAS C160/C320 採用 19 吋標準機櫃安裝。所有外部測試所需介面皆採用多極工業插頭連接器配置於標準輸入輸出連接面板上。電驛控制及外接類比與數位感測器的電源由內部電源供應單元提供。可選配整合電源，用於驅動外部致動器例如儲能馬達、釋放線圈或加熱系統；外部電源亦可透過連接面板接入。
所有電源、線圈與加熱系統均透過電驛控制，內部電源由測試系統進行調節。
測試系統的狀態及所有作用中之釋放項目，會顯示於指示面板上。
所有外部電壓可透過「緊急停止」按鈕切斷。系統內整合了安全開關裝置，用於啟動安全電路，並符合 BG、UL、cUL、CCC 及 Gost 國際認證要求，確保使用安全。此外，連接面板上另設有一個安全二進制輸入，可用於監控外部門接點。
機櫃由主電源面板供電，並使用多極工業插頭連接器，最大負載為 32 A。在緊急停止電路中還整合了一個 25 A 保險輸出端，可為外部電源提供電力。
斷路器與驅動測試系統的輸入與輸出
可用的外部輸入與輸出數量取決於額外的設備選項。例如，內部電源的控制需配置1個類比輸出作為致動信號、1個類比輸入作為回饋信號、2個二進制輸出用於釋放與交流/直流切換。


	ACTAS C160	ACTAS C320
控制輸出︰	3 x 開啟線圈控制，每組含 3 個可切換電路，並具控制電流測量功能 3 x閉合線圈控制，每組含 2 個可切換電路，並具控制電流測量功能 8 組電驛輸出 4 組類比輸出 (0...10 V) 3組 RJ45 數位輸出，用於控制外部設備	3 x 開啟線圈控制，每組含 3 個可切換電路，並具控制電流測量功能 3 x閉合線圈控制，每組含 2 個可切換電路，並具控制電流測量功能 14 組電驛輸出 6 組類比輸出 (0...10 V) 3組 RJ45 數位輸出，用於控制外部設備
類比 / 增量輸入︰	6 組用於感測器的類比輸入（±10 V） 2 組用於感測器的類比輸入（0…20 mA） 6 組用於感測器的增量輸入 2 組電壓測量通道（300 V / 500 V） 1 組電流測量通道（100 A 峰值）	9 組用於感測器的類比輸入（±10 V） 3 組用於感測器的類比輸入（0…20 mA） 9 組用於感測器的增量輸入 6 組電壓測量通道（300 V / 500 V） 3 組電流測量通道（100 A 峰值）
二進位輸入︰	3 × 4 主接點、電阻及預插入電阻接點 52 組輔助接點	3 × 6 主接點、電阻及預插入電阻接點 96 組輔助接點
包含配件︰	測試軟體 ACTAS V 2.60 資料介面軟體模組 控制與自動化軟體模組 擴展測試與分析軟體模組 統計軟體模組 擴展資料管理軟體模組	測試軟體 ACTAS V 2.60 資料介面軟體模組 控制與自動化軟體模組 擴展測試與分析軟體模組 統計軟體模組 擴展資料管理軟體模組

Stationary test system for carrying out fully automatic final factory tests, type and function tests on all kinds of switchgear devices, such as circuit breakers, disconnectors or earthing switches, regardless of the type of drive unit. All the electrical and mechanical parameters needed for the assessment of switching performance are measured in real time and evaluated without either the main contact chambers or the drive unit having to be opened. The system has analog and incremental input channels for the acquisition of analog quantities. Binary measurement channels enable measurements to be made on auxiliary contacts and main contact chambers. The standard model can control 3 opening coil circuits and 2 closing coil circuits separately per pole. The software package included in the scope of delivery can be used to carry out all kinds of tests, from test procedures which run autonomously to comprehensive, automatic tests of a switchgear device.
Compliant with standards and guidelines:
EN 61010-1: 2011
EN 61010-2-201: 2011
EN 61326-1: 2013
Cabinet design:
ACTAS C160 is mounted in a 19" standard cabinet. All externally available interfaces required for tests are provided on standard connection panels for inputs and outputs in the form of multi-pole industrial plug connectors. The internal power supply for relay control and the power supply to analog and digital sensors connected externally are provided by built-in power supply units. Integrated sources can be provided as an optional extra for powering external actuators such as spring-charging motors, release coils or heating systems. External sources can be connected via a connection panel. All sources, coils or heating systems are controlled via relays. Internal sources are regulated by the test system. The status of the test system and all active releases are shown on the indicator panel.
All external voltages can be switched off by means of an EMERGENCY STOP button. A safety switchgear device is integrated for the interruption of the safety electric circuit. It fulfills requirements for international use through certification to BG, UL, cUL, CCC and Gost. There is also an additional safety binary input on the connection panel which can be used to monitor an external door contact, for example.
The cabinet is powered via a mains supply panel and multi-pole industrial plug connectors with a maximum load of 32 A. There is an additional fused 25 A output integrated in the emergency stop circuit for supplying external sources.
Inputs and outputs of the breaker and drive test system
The number of external, freely usable inputs and outputs depends on the additional device options. For the regulation of an internal source, for example, one analog output is required for the actuating signal, one analog input is required for the feedback signals and 2 binary outputs are required for release and AC/DC switching.


	ACTAS C160	ACTAS C320
Control outputs:	3 x control for opening coils with 3 switchable circuits each, including control current measurement 3 x control for closing coils with 2 switchable circuits each, including control current measurement 8 relay outputs 4 analog outputs (0...10 V) 3 digital outputs RJ45 for controlling external devices	3 x control for opening coils with 3 switchable circuits each, including control current measurement 3 x control for closing coils with 2 switchable circuits each, including control current measurement 14 relay outputs 6 analog outputs (0...10 V) 3 digital outputs RJ45 for controlling external devices
Analog / incremental inputs:	6 analog +/-10 V inputs for sensors 2 analog 0…20 mA inputs for sensors 6 incremental inputs for sensors 2 voltage measurement channels 300 V / 500 V, 1 current measurement channel 100 A peak	9 analog +/-10 V inputs for sensors 3 analog 0…20 mA inputs for sensors 9 incremental inputs for sensors 6 voltage measurement channels 300 V / 500 V, 3 current measurement channel 100 A peak
Binary inputs:	3 x 4 main, resistive and PIR contacts, 52 auxiliary contacts	3 x 6 main, resistive and PIR contacts, 96 auxiliary contacts
Scope of delivery:	Testing software ACTAS V 2.60 SW module Data Interfaces SW module Control & Automation SW module Extended Testing & Analysis SW module Statistics SW module Extended Data Management	Testing software ACTAS V 2.60 SW module Data Interfaces SW module Control & Automation SW module Extended Testing & Analysis SW module Statistics SW module Extended Data Management
