固定式開關設備測試系統

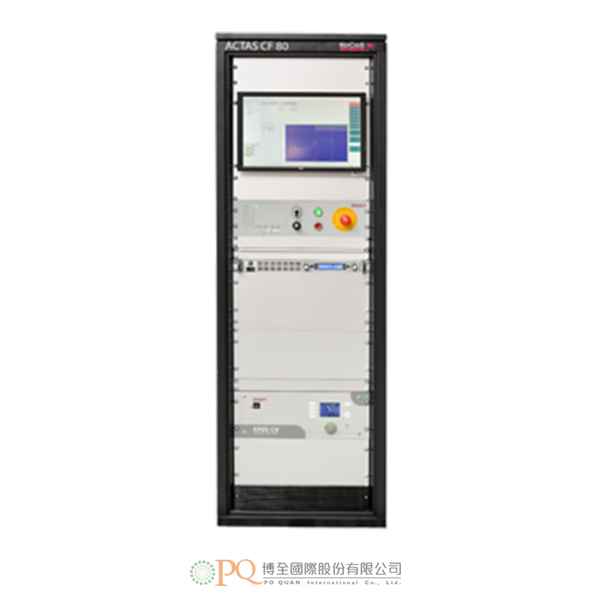

ACTAS CF80固定式測試系統，用於最多 8 組驅動裝置的連續最終出廠測試與功能測試。該驅動測試系統由 ACTAS 操作軟體進行操作與控制，並透過多工方式選擇測試位置。測試系統可藉由邏輯模組模擬驅動控制，即使在無控制單元的情況下，也能對任意驅動裝置進行測試。
符合以下標準及指引︰
EN 61010-1: 2011
EN 61010-2-201: 2011
EN 61326-1: 2013
機櫃設計：
ACTAS CF80 採用 38U 標準機櫃安裝。所有用於連接待測驅動裝置的介面，均以多接點插頭形式設於標準連接面板上。驅動裝置可透過遙控器手動開啟與關閉。前面板上的 LED 指示燈面板會顯示所有驅動裝置的當前狀態。
所有外部電壓可透過「緊急停止」按鈕切斷。系統內整合了安全開關裝置，用於啟動安全電路，並符合 BG、UL、cUL、CCC 及 Gost 國際認證要求，確保使用安全。此外，連接面板上另設有一個安全二進制輸入，可用於監控外部接點。
機櫃由主電源面板供電，並使用多極工業插頭連接器，最大負載為 32 A。在緊急停止電路中還整合了一個 25 A 保險輸出端，可為外部電源提供電力。

	ACTAS CF80
控制輸出︰	1 x開啟線圈控制 1 x閉合線圈控制 2 組類比輸出 (0...10 V) 1組 RJ45 數位輸出，用於控制外部設備
類比 / 增量輸入︰	2 組電壓測量通道（300 V / 500 V） 1 組電流測量通道（100 A）
二進位輸入︰	3 × 2 電阻主接點及預插入電阻接點
每個驅動位置額外輸入與輸出︰	14組輔助接點 1 x 增量式輸入
包含配件︰	測試軟體 ACTAS V 2.60 資料介面軟體模組 控制與自動化軟體模組 擴展測試與分析軟體模組 統計軟體模組 擴展資料管理軟體模組 緊湊開關測試軟體模組

Stationary test system for sequential final factory tests and function tests on up to 8 drives. The drive test system is operated and controlled with the ACTAS operating software. The test position is selected using the multiplex method. The test system can reproduce drive control with the aid of a logic module. This makes it possible to test any drive even if there is no control unit.
Compliant with standards and guidelines:
EN 61010-1: 2011
EN 61010-2-201: 2011
EN 61326-1: 2013
Cabinet design:
ACTAS CF80 is mounted in a 38 U standard cabinet. All the interfaces for connecting the drives to be tested are provided on standard connection panels in the form of multi-contact plugs. The drive can be switched on and off manually using a remote control. LED indicator panels on the front panel display the current status of all the drives.
All external voltages can be switched off by means of an EMERGENCY STOP button. A safety switchgear device is integrated for the interruption of the safety electric circuit. It fulfills requirements for international use through certification to BG, UL, cUL, CCC and Gost. There is also an additional safety binary input on the connection panel which can be used to monitor an external door contact, for example.
The cabinet is powered via a mains supply panel and multi-pole industrial plug connectors with a maximum load of 32 A. There is an additional fused 25 A output integrated in the emergency stop circuit for supplying external sources.


	ACTAS CF80
Control outputs:	1 x control for OPEN coils 1 x control for CLOSE coils 2 analog outputs (0...10 V) 1 digital outputs RJ45 for controlling external devices
Analog / incremental inputs:	2 voltage measurement channels 300 V / 500 V, 1 current measurement channel 100 A
Binary inputs:	3 x 2 main resistive and PIR contacts
Additional inputs and outputs per drive position:	14 auxiliary contacts 1 x incremental input
Scope of delivery:	Testing software ACTAS V 2.60 SW module Data Interfaces SW module Control & Automation SW module Extended Testing & Analysis SW module Statistics SW module Extended Data Management SW module Compact Switchgear Testing
