固定式開關設備測試系統

高精度測試系統，用於針對各類開關設備（包括斷路器、隔離開關或接地開關）進行功能測試，不論其驅動單元型式皆適用。該系統的輸入與輸出可透過端子排靈活連接，使其特別適合應用於研發與實驗室環境，亦可用於生產製造環境。

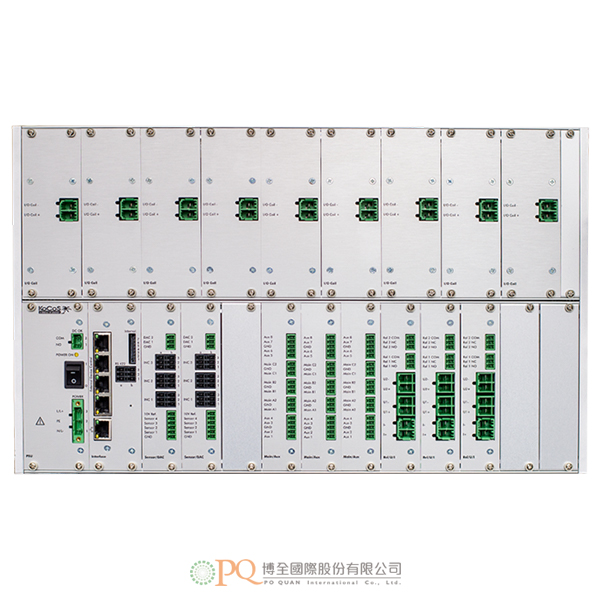

19 吋機架式外殼設計，既可獨立運作，也可安裝於系統機櫃中。
在不需打開主接點室或驅動單元的情況下，系統即可實時測量評估開關性能所需的所有電氣與機械參數。系統輸入端可支援測量類比、增量式及二進位訊號。主接點與輔助接點卡上共設有 14 (ACTAS L260) / 28 (ACTAS L360) 個測量通道，可同時測量 8 (ACTAS L260) / 16 (ACTAS L360) 組輔助接點、6 (ACTAS L260) / 12 (ACTAS L360) 組電阻接點及6 (ACTAS L260) / 12 (ACTAS L360) 組主接點。
ACTAS L260 / L360具備單相 (ACTAS L260) / 三相 (ACTAS L360) 控制操作線圈，其中1 (ACTAS L260) / 3 (ACTAS L360) 組控制輸出用於閉合線圈及2 (ACTAS L260) / 6 (ACTAS L360) 組控制輸出用於開啟線圈，可用於中壓與高壓斷路器的測試。若搭配 PROMET 電阻測試系統，可於每極最多四個斷弧單元（interrupter units）上進行三極動態接觸電阻測量。此外，系統具備數位與類比控制輸出，可自動控制電壓或電流源，從而實現全自動化測試。

測試系統使用ACTAS 2.60測試軟體控制

	ACTAS L260	ACTAS L360
控制輸出︰	2 x 開啟線圈 1 x 閉合線圈 3 x 外置歐姆計 1 x 外置擴展箱 / 電壓源 2 x 類比控制輸出0…10 V 2 x 電驛	6 x Relay 6 x 開啟線圈 3 x 閉合線圈 3 x 外置歐姆計 1 x 外置擴展箱 / 電壓源 4 x 類比控制輸出0…10 V 6 x 電驛
類比 / 二進位輸入︰	3 x 線圈電流 2 x 線圈/變電站/馬達電壓 1 x 經分流器的馬達電流 3 x 外置感測器 (10 V) 1 x外置感測器 (20 mA) 3 x外置感測器 (數位/增量式) 3 x 2 預插入電阻與主接點 2 x 4 輔助接點	9 x 線圈電流 6 x 線圈/變電站/馬達電壓 3 x 經分流器的馬達電流 6 x 外置感測器 (10 V) 2 x外置感測器 (20 mA) 6 x外置感測器 (數位/增量式) 9 x 2 預插入電阻與主接點 4 x 4 輔助接點
包含配件︰	2.5米電源線 乙太網電纜 測試軟體 ACTAS V 2.60 資料介面軟體模組 控制與自動化軟體模組 擴展測試與分析軟體模組 統計軟體模組 擴展資料管理軟體模組 ACTAS x60通訊軟體模組	2.5米電源線 乙太網電纜 測試軟體 ACTAS V 2.60 資料介面軟體模組 控制與自動化軟體模組 擴展測試與分析軟體模組 統計軟體模組 擴展資料管理軟體模組 ACTAS x60通訊軟體模組



High-precision test system for function tests on various types of switchgear device, including circuit breakers, disconnectors or earthing switches, regardless of the type of drive unit. The inputs and outputs are connected flexibly via a terminal strip, making the test system particularly suitable for use in development and laboratory environments as well as in production environments.
The 19" housing allows both stand-alone operation and installation in a system cabinet.
All the electrical and mechanical parameters needed for the assessment of switching performance are measured in real time without either the main contact chamber or the drive unit having to be opened. Inputs are provided for measuring analog, incremental and binary signals. The 14 measurement channels on the main and auxiliary contact cards allow simultaneous measurement on 8 auxiliary contacts, 6 resistive and 6 main contacts.
With single-phase control of the operating coils with 1 control output for closing coils and 2 control outputs for opening coils, ACTAS L260 can be used to test medium- and high-voltage breakers. In combination with PROMET, three-pole dynamic resistance measurements can be carried out on up to four interrupter units per pole. Digital and analog control outputs enable voltage or current sources to be controlled automatically, allowing fully automatic tests.
All the electrical and mechanical parameters needed for the assessment of switching performance are measured in real time without either the main contact chamber or the drive unit having to be opened. Inputs are provided for measuring analog, incremental and binary signals. The 28 measurement channels on the main and auxiliary contact cards allow simultaneous measurement on 16 auxiliary contacts, 12 resistive and 12 main contacts.
With three-phase control of the operating coils with 3 control outputs for closing coils and 6 control outputs for opening coils, ACTAS L360 can be used to test all medium- and high-voltage breakers. In combination with PROMET, three-pole dynamic resistance measurements can be carried out on up to four interrupter units per pole. Digital and analog control outputs enable voltage or current sources to be controlled automatically, allowing fully automatic tests.


The test system is controlled using the ACTAS 2.60 testing software.

	ACTAS L260	ACTAS L360
Control outputs:	2 x Opening coil 1 x Closing coil 3 x External ohm meter 1 x External extension box/voltage source 2 x Analog control output 0…10 V 2 x Relay	6 x Opening coil 3 x Closing coil 3 x External ohm meter 1 x External extension box/voltage source 4 x Analog control output 0…10 V 6 x Relay
Analog / binary inputs:	3 x coil current 2 x Coil/station/motor voltage 1 x Motor current via shunt 3 x External sensor (10 V) 1 x External sensor (20 mA) 3 x External sensor (dig./inc.) 3 x 2 Main and PIR contacts 2 x 4 Auxiliary contacts	9 x Coil current 6 x Coil/station/motor voltage 3 x Motor current via shunt 6 x External sensor (10 V) 2 x External sensor (20 mA) 6 x External sensor (dig./inc.) 9 x 2 Main and PIR contacts 4 x 4 Auxiliary contacts
Scope of delivery:	Power cord, 2.5 m Ethernet cable Testing software ACTAS V 2.60 SW module Data Interfaces SW module Control & Automation SW module Extended Testing & Analysis SW module Statistics SW module Extended Data Management SW module ACTAS x60 Communication	Power cord, 2.5 m Ethernet cable Testing software ACTAS V 2.60 SW module Data Interfaces SW module Control & Automation SW module Extended Testing & Analysis SW module Statistics SW module Extended Data Management SW module ACTAS x60 Communication
