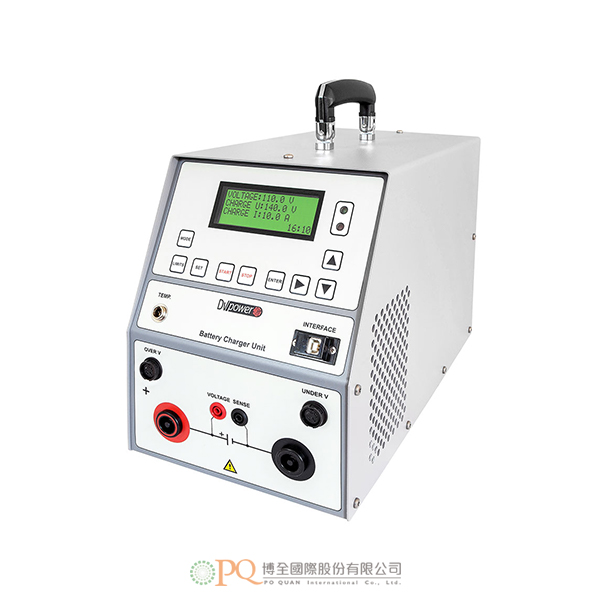

電池充電器 BAC 系列

BAC 系列電池充電器是一款可攜式萬用電池充電解決方案。它主要用於為鉛酸、鎳鎘和鋰離子電池充電，充電電壓範圍為 1 V 直流至 300 V 直流。

然而，該設備可以通過以下其中一種充電模式為任何類型的電池串充電：

• IU（恒定電流 + 恒定電壓）
• UU（恒定電壓 + 恒定電壓帶電流限制）

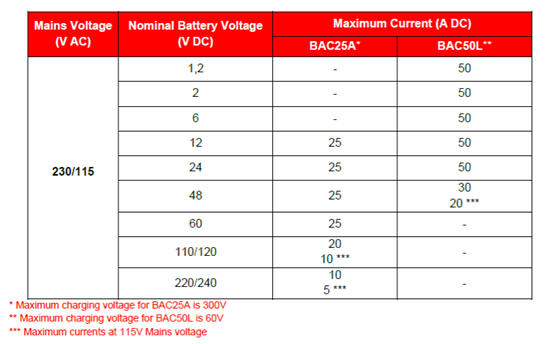

充電模式可安全調節充電過程，實現速充電和降低過充風險。下表列出了 BAC25A 和 BAC50L 型號在各種電池電壓下的最大充電電流。

實施了多種保護措施，例如熱保護、過電流保護、欠電壓保護和過電壓保護，以確保充電過程對電池和儀器本身都是安全的。

使用者無需關閉主充電器即可使用 BAC 系列充電器。相反，BAC 系列充電器應支援主充電器以加快充電過程。

另一種使用方式是在放電測試後快速為電池充電。

提供的顯示器讓使用戶能夠在充電過程中監控所有相關資訊，並即時調整充電參數和限制。

該儀器在市場上擁有最佳的功率 / 重量比，重量僅為 10 kg / 22 lbs，最大輸出功率為 2,7 kW。

各種電池電壓下鉛酸、鎳鎘和鋰離子電池的最大充電電流在產品手冊中列出。

Battery charger BAC series is a portable and universal battery charging solution. It is primarily intended for charging Lead-Acid, Ni-Cd, and Li-ion batteries from 1 V DC to 300V DC level. However, the unit can charge the string of any battery type by one of the available charge modes:

• IU (constant current + constant voltage)
• UU (constant voltage + constant voltage with a current limit)

Charging modes provide a safe regulation of charging procedure and achieves fast recharge and low risk of overcharge.

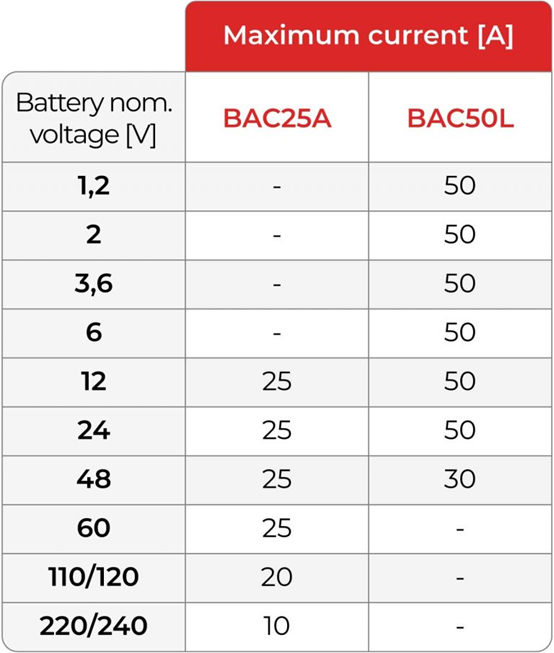

An overview of the maximum charging current for BAC25A and BAC50L models for various battery voltage levels can be found in the table below.

A variety of implemented protections, such as thermal, overcurrent, undervoltage, and overvoltage, assure the charging process will be safe for the battery and the instrument itself.

A user doesn’t have to switch off the main charger in order to use BAC series charger. Just the opposite, the BAC series charger should support the main charger to speed up the process. An alternative use is to quickly recharge a battery following a discharge test.

The provided display enables users to monitor all relevant information during the charging process and to adjust charging parameters and limits in real-time.

The instrument offers the best power-to-weight ratio in the market, weighing only 10 kg / 22 lbs with a maximum output power of 2,7 kW.

The maximum charging currents for lead-acid, Ni-Cd, and Li-ion batteries, at various battery voltages, are presented in the brochure.
