電池接地故障檢測器

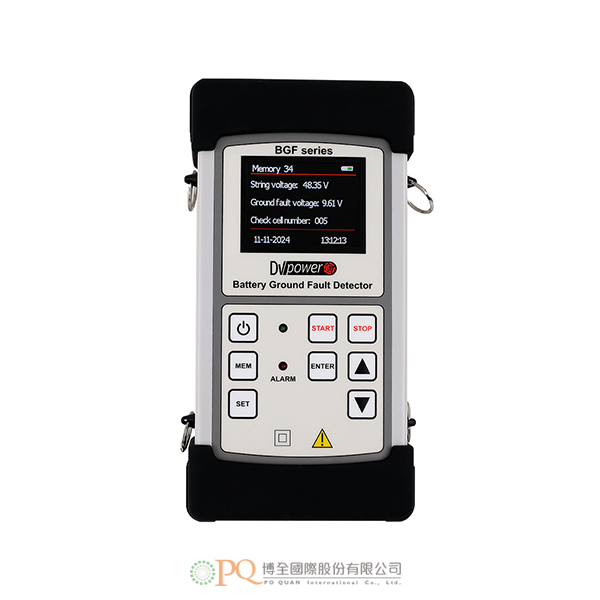

DV Power 推出的 BGF 電池接地故障檢測器是一款輕便手持式設備，專為可靠檢測和定位電池組中的電池到地短路而設計。

電池系統中的接地故障可能構成安全風險，尤其是在高電壓的多電池串中。BGF 系列提供了一種快速有效的故障識別方法，提升了安全性和運營效率。

BGF 支持最高 600 V 直流電壓的電池系統，可對電池串電壓和接地電位進行持續監測，快速準確地檢測任何異常情況。

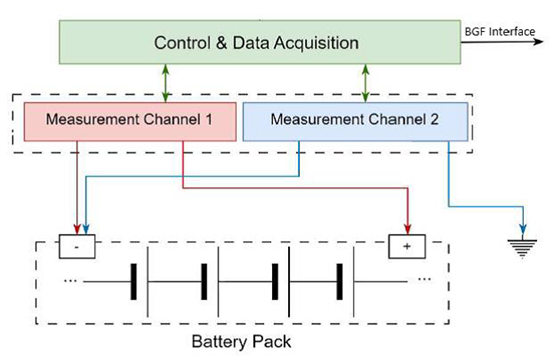

如上圖所述的測量和系統結構，通過使用兩個電壓通道和演算法，該設備可以輕鬆檢測並定位電池串中發生接地故障的電池。

The BGF Battery Ground Fault Detector by DV Power is a lightweight, handheld device designed for the reliable detection and localization of cell-to-ground short circuits in battery packs. Ground faults in battery systems can pose safety risks, particularly in multi-cell battery strings with high voltage levels. The BGF series provides a quick and effective method to identify these faults, enhancing both safety and operational efficiency.

Capable of operating on battery systems up to 600 V DC, the BGF performs continuous monitoring of the battery string voltage and ground potential to detect any irregularities quickly and accurately.

As shown in the diagram above, through the use of two voltage channels and dedicated algorithms, the device can easily detect and locate the battery in the string where a ground fault has occurred.
