電池容量測試儀 / 放電測試儀 BLU-C系列

電池容量測試儀BLU-C是DV Power推出的最新解決方案，用於進行全面的電池容量測試。

這款萬用型儀器適用於任何類型的電池組，包括鉛酸電池、鋰離子電池、鎳鎘電池等，支援直流電壓高達800 V。

此外，當與零電壓放電模組ZVD80配合使用時，BLU-C可實現電池完全放電至0 V，放電電流最高可達60 A，這是電池回收前所需的必要步驟。

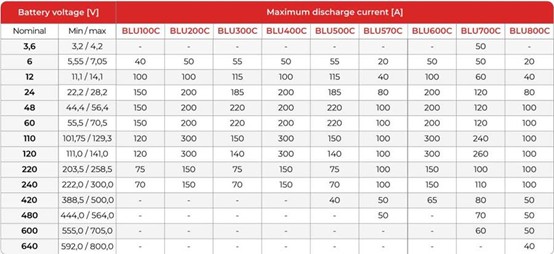

BLU-C 型號在不同電池電壓範圍內的最大測試電流概述如下表所示。

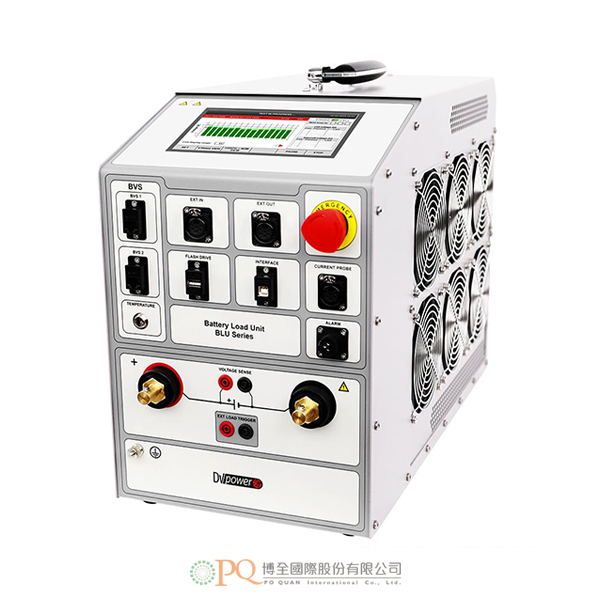

BLU-C 測試儀透過多種方式簡化電池測試流程。該儀器可在7英寸觸控螢幕上實時顯示放電參數（圖形和數值形式）。

此外，該儀器還支持測量和監控電池參數（電壓/電池間電壓/溫度），使其成為一個完整的獨立放電測試系統。

容量測試儀與DV-B Win軟體相容。因此，使用者可以查看關鍵參數的詳細數值和圖形展示，並以多種格式生成報告。

容量測試按照電池測試標準以用戶友好的方式進行：IEEE 450-2010、IEEE 1188-2005、IEEE 1106-2015、IEC 60896-11/22 及其他相關標準。

電池容量測試儀支持設置放電電流最高達300 A，解析度為0.1 A。如需更高電流，可將BLU-C單元並聯連接，或使用BXL附加負載單元。

使用者可以選擇以下四種放電模式之一：

• 恒定電流
• 恒定功率
• 恒定電阻
• 恒定電壓​

此外，還可以使用用戶可選的放電曲線模擬不同的電池工作週期。測試可以在不將電池從供電設備上斷開的情況下進行。

電池容量測試影片

Battery capacity tester BLU-C is the latest solution from DV Power for conducting a comprehensive battery capacity test. This universal instrument is applicable to any battery string, such as lead-acid, Li-Ion, Ni-Cd, and others, with voltages up to 800 V DC. Additionally, when combined with Zero Voltage Discharge Module ZVD80, BLU-C enables full battery discharge down to 0 V with up to 60 A, required before battery recycling.

An overview of the maximum test currents for BLU-C models for various battery voltage ranges can be found in the table below.

BLU-C tester simplifies battery testing in multiple ways. The instrument provides monitoring of discharge parameters (graphically and numerically) in real-time on a 7-inch touch-screen display. The instrument also enables the measurement and monitoring of cell parameters (voltage/intercell voltage/temperature), which makes it a complete stand-alone discharge test system.

The capacity tester is compatible with DV-B Win software. Because of that, the user can view detailed numerical and graphical presentations of key parameters, and create reports in various formats.

The capacity test is performed in a user-friendly way according to battery testing standards: IEEE 450-2010, IEEE 1188-2005, IEEE 1106-2015, IEC 60896-11/22, and others.

The battery capacity tester enables setting the discharge current up to 300 A, with 0,1 A resolution. If higher currents are required, BLU-C units can be connected in parallel, or BXL additional load units can be used.

A user can select one of four discharge modes:

• Constant current
• Constant power
• Constant resistance
• Constant voltage

Additionally, different battery duty cycles can be simulated using user-selectable discharge profiles.

Testing can be carried out without disconnecting the battery from the equipment it supplies.
