電池電芯放電器 BRC16 系列

BRC16 電池放電器專為高效率、具安全性同時對多達 16 個方形鋰離子電池進行深度放電而設計。它非常適合需要可靠且嚴格的電池管理解決方案的工業環境。

• 獨立放電通道: 16 個通道均獨立執行，可對每個電池的放電過程進行精確控制，最大直流電流可達 150A。
• 使用者友善介面:10 吋彩色觸控螢幕讓操作人員可設定放電參數、監控即時數據，並依需求調整限制值。
• 先進安全措施：BRC16 配備內建攝像頭和感測器進行熱監測，確保電池保持在安全溫度範圍內。如果發生過熱，將自動啟動緊急水浴降温裝置，為電池降温。
• 即時監控與數據記錄：系統提供各電池的放電參數（包括電壓、電流、容量和溫度）的圖形和數值顯示。放電結果會自動保存以供進一步分析。
• 可調整放電參數：操作人員可自訂電壓、溫度及電流的放電閥值，以符合特定電池需求。亦提供預設放電曲線，以簡化重複性任務。

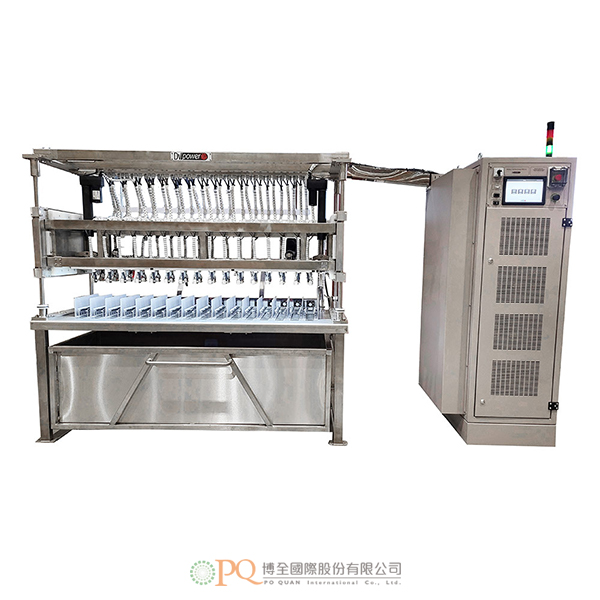

The BRC16 Battery Cell Discharger is engineered for the efficient and safe deep discharge of up to 16 prismatic Li-ion cells simultaneously. It is ideal for industrial environments that demand reliable and rigorous battery management solutions.

• Independent Discharge Channels: Each of the 16 channels operates independently, allowing precise control over the discharge process for each cell with up to 100A DC.
• User-Friendly Interface: A 10-inch color touchscreen enables operators to set discharge parameters, monitor real-time data, and adjust limits as needed.
• Advanced Safety Measures: Equipped with thermal monitoring through built-in cameras and sensors, the BRC16 ensures cells remain within safe temperature ranges. In case of overheating, an automated emergency water basin drop is activated to cool the cells.
• Real-Time Monitoring and Data Logging: The system provides graphical and numerical displays of discharge parameters, including voltage, current, capacity, and temperature for each cell. Discharge results are automatically saved for further analysis.
• Adjustable Discharge Parameters: Operators can customize discharge limits for voltage, temperature, and current to meet specific battery requirements. Predefined discharge profiles are also available to streamline recurring tasks.
