DG+ 精密型工業用內視鏡
Danatronics DG+ series 型號：DG+Danatronics DG+為精密型內視鏡，擁有2, 4, 6 mm直徑和1M~3M長的光纖鏡頭管線，主機和鏡頭為分開的兩部件，同時具有360度四方向鉸接鏡頭控制（2mm直徑只有2方向鉸接），最高44萬畫素且搭配IP64/67之防護規格，提供最清晰視野和最便利的操作
-
Danatronics DG+為精密型內視鏡，擁有2, 4, 6 mm直徑和1M~3M長的光纖鏡頭管線，主機和鏡頭為分開的兩部件，同時具有360度四方向鉸接鏡頭控制（2mm直徑只有2方向鉸接），最高44萬畫素且搭配IP64/67之防護規格，提供最清晰視野和最便利的操作
-
綜合
LCD螢幕
5”
語言
14種（含中文）
工作溫度
-10~50度C
相機
直徑
2.8mm
4.5mm
6.2mm/6.4mm
材質
不鏽鋼
鈦合金
鈦合金
防護等級
IP64
IP64/ IP67
IP64/ IP67
感測器
CMOS
CMOS
CMOS
FNO
5
4
4.5
光源
High Intensity LED
High Intensity LED
High Intensity LED
畫素
10萬
40萬
44萬
FOV
120度
80度
120度
DOF
5mm~30mm
10mm~100mm
10mm-無限遠
光纖管線
長度
1M
2M, 3M
2M, 3M
材質
不鏽鋼
鎢
鎢
鉸接（關節）
解度
>90度 （兩方向）
360度（四方向）
360度（四方向）
尺寸
5”
5”
5”
解析度
800*480
800*480
800*480
對比
500:1
500:1
500:1
亮度
350 CD/m2
350 CD/m2
350 CD/m2
電源供應
電池
3.7V/ 600mAh 鋰電池
工作時間
大約四小時
充電時間
五小時
AC 輸入
AC 100~240V, 50/60 Hz, 0.35A
AC 輸出
5V/2A
-

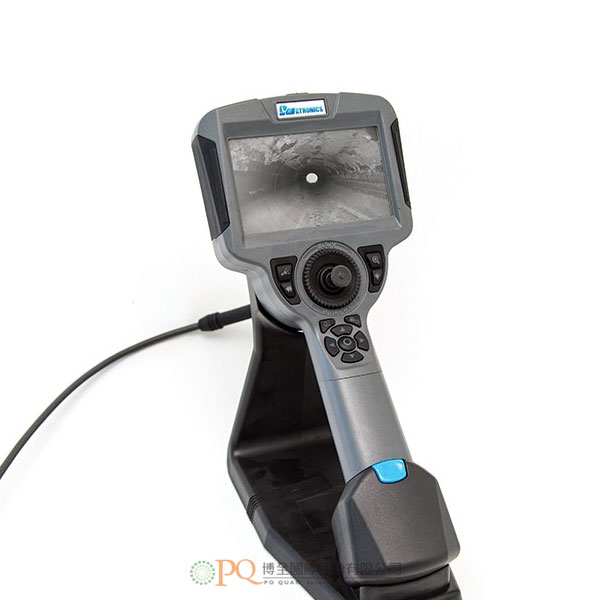

Danatronics DG+ series is the ideal video inspection tool for your most challenging applications.
Danatronics DG+ Series of affordable hand-held videoscopes with interchangeable camera cables is in 2mm (2-way articulating), 4mm and 6mm options. The 4mm and 6mm options have full, joystick controlled, 360 degree articulation providing the user with full control over where they’re steering the camera or looking. In an effort to provide the user even more control over their inspection, the DG+ also has interchangeable camera cables. Using one display you can use both a 1M long 2.8mm diameter scope for your smallest applications and a 6mm scope for your more standard applications.
Features:
- 5" High Resolution TFT LCD Display
- 360 degree full articulation
- Interchangeable Camera Cables
- Rechargeable Li-Ion Battery
- Rear auxiliary light source for Dark Environments
- 3X digital zoom
- Easy one-hand operation
Typical Applications:
- Machinery
- Casting
- Jet Engine Inspection (on or off-wing)
- Airframes
- Heat Exchangers
- Boiler Tubes
- Gas Turbines
- Gear Boxes
- Fuse Boxes Re-circulator pumps
-
Camera
Diameter
2.8 mm
4.5 mm
6.2 mm/6.4 mm (IP67)
Material
Stainless Steel
Titanium Alloys
Titanium Alloys
Ingress Protection
IP64
IP64/IP67*
IP64/IP67*
Image Sensor
CMOS
CMOS
CMOS
FNO
5
4
4.5
Illumination
High Intensity LED
High Intensity LED
High Intensity LED
Camera Length
10 mm
15 mm
15 mm
Pixels
100,000
400,000
440,000
Field of View
120°
80°
120°
Depth of Field
5 mm–30 mm
10 mm–100 mm
10 mm – ∞
Insertion Cable
Length
1 M
2 M, 3 M
2 M, 3 M
Material
Stainless Steel
Tungsten
Tungsten
Articulation
Angle
>90° (2-way)
>90° (360°)
>90° (360°)
Operation
Manual Joystick
Manual Joystick
Manual Joystick
Probe Interchangeability
Available
Available
Available
Display Size
5 inch
5 inch
5 inch
Housing material
ABS
ABS
ABS
Resolution
800*480
800*480
800*480
Contrast
500:1
500:1
500:1
Brightness
350 CD/m2
350 CD/m2
350 CD/m2
Power Supply
Battery
3.7V/6000MAH Li-ion Battery
Operation Time
4 hours +
Charging Time
5 Hours
AC Input
AC 100-240 V 50/60 Hz 0.35A
AC Output
5V/2A
