電力品質分析儀

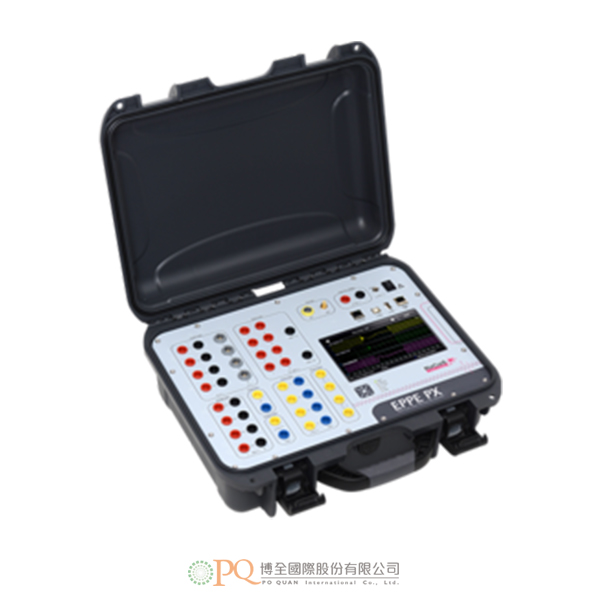

攜帶箱式可攜型電力品質解決方案
EPPE PX 為行動量測與設備安裝監測而特別開發。感測器輸入、電流直接量測輸入，以及電氣隔離的電壓輸入，使本裝置在使用上具備極高的彈性，並可依使用者的需求與應用進行個別化設定。堅固耐用的攜帶箱即使在嚴苛的環境條件下，也能有效保護量測設備。
本裝置具備 4 組電壓輸入、4 組電流輸入、4 組電流鉗、8 組數位輸入、5 組額外感測器輸入，以及 1 組類比控制輸出，使其在應用上極為靈活。
應用範例

太陽光電（PV）電廠

風力發電廠
EPPE 優勢
透過高精度量測、可靠的軟體與最高等級的安全標準，優化您的能源品質。我們的解決方案可協助您識別干擾來源、降低能源成本，並確保符合國際標準——彈性、操作友善且具備未來相容性。


The portable power quality solution in a carrying case
EPPE PX has been specially developed for mobile measurements and installation monitoring. Sensor inputs, direct inputs for current measurement and galvanically isolated voltage inputs make the device extremely flexible to use and allow individual adaptation to the needs and requirements of the user. The rugged carrying case protects the measuring device even in harsh environmental conditions.
Measurement inputs for 4 voltages, 4 currents, 4 current clamps, 8 digital inputs as well as 5 additional sensor inputs and an analog control output make the device extremely flexible to use.
Examples of applications

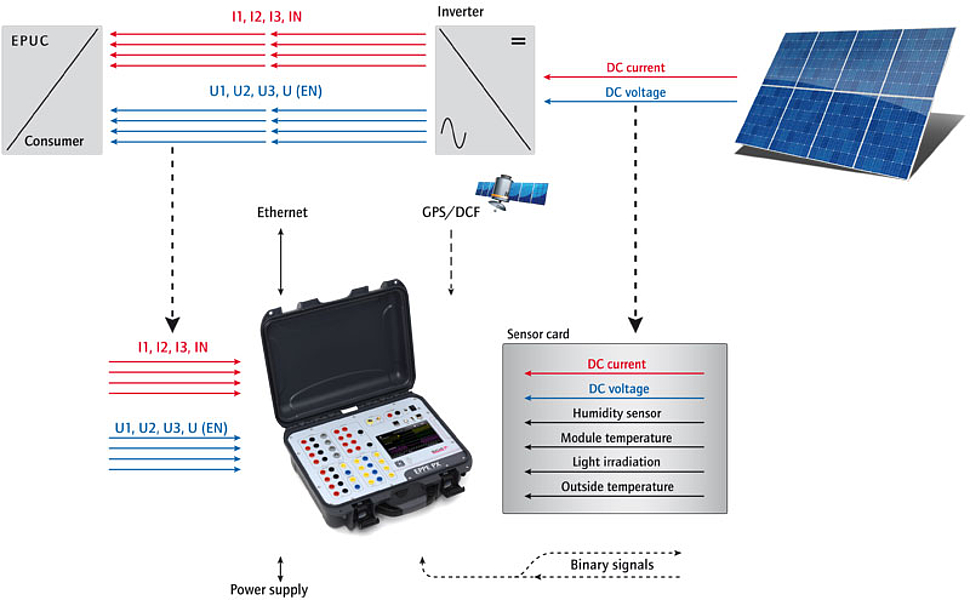

PV plant

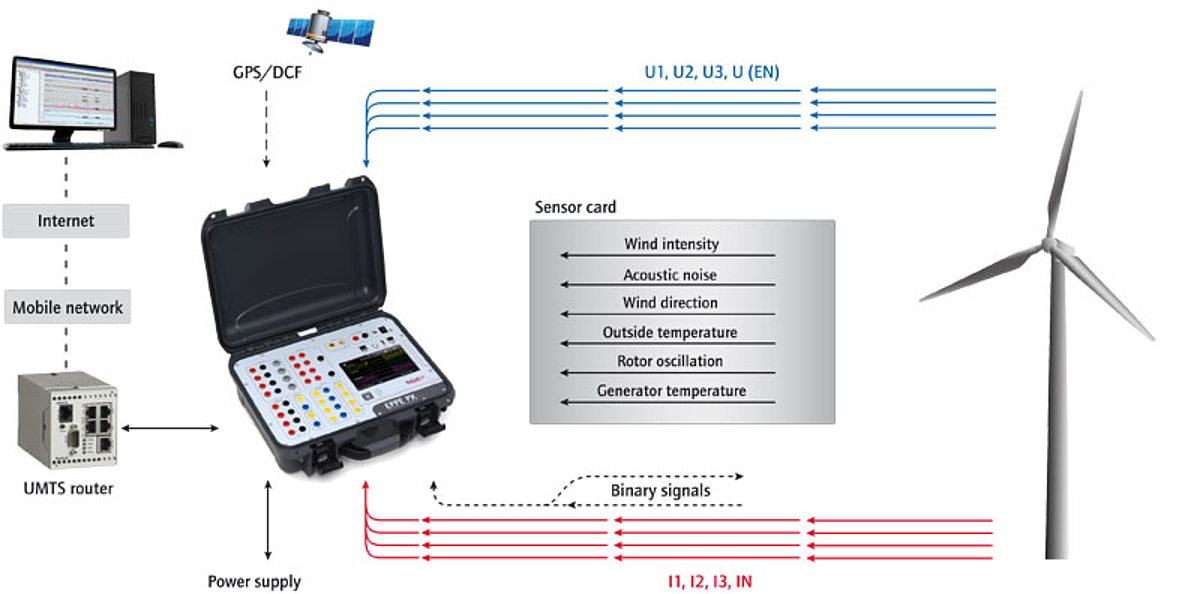

Wind power plant
EPPE Benefits
Optimize your energy quality with precise measurements, reliable software and the highest safety standards. Our solutions help you to identify sources of interference, reduce energy costs and ensure compliance with international standards - flexible, user-friendly and future-proof.
