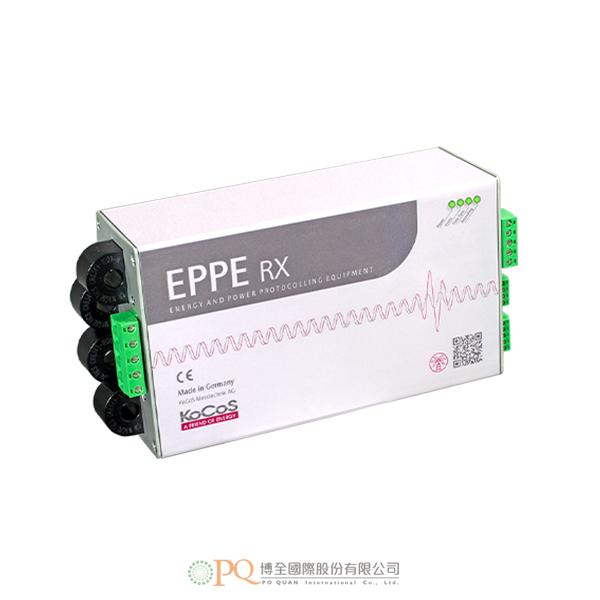

EPPE RX－適用於 DIN 導軌安裝的電力品質分析儀與故障記錄器
整合式電力品質儀表、電力計、電力品質資料記錄器與故障記錄器

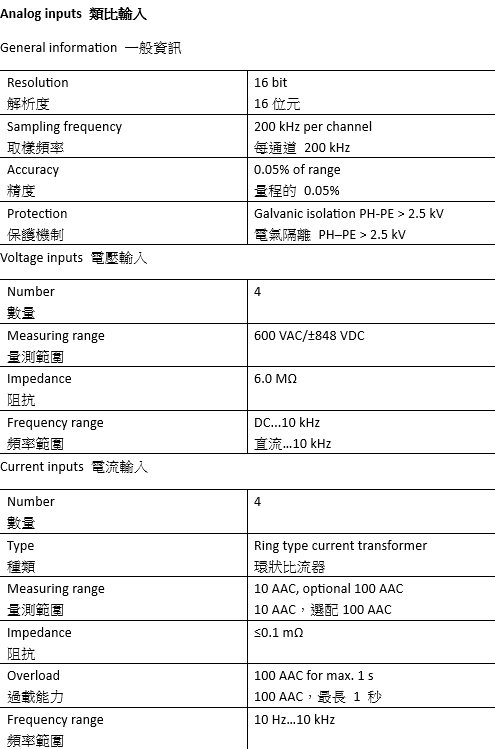

EPPE RX 是一款結構緊湊且功能強大的 Class A 電力品質分析儀，同時可作為電力計、電力品質資料記錄器以及故障記錄器使用。其具備 8 通道量測功能，可量測 4 組電壓（最高 1000 V，線對線 L-L）與 4 組電流（最高 10 / 100 A），並具備 200 kHz 的高速取樣率與 0.05% 的卓越精度。
電流量測透過穿心式比流器（Through-type CT）進行，使裝置能夠快速且容易地安裝於既有電路中，無需額外的端子連接點。
EPPE 優勢
透過精準的量測、可靠的軟體與最高等級的安全標準來最佳化您的電能品質。我們的解決方案可協助您辨識干擾來源、降低能源成本，並確保符合國際標準——彈性、操作友善且具備未來相容性。
符合 VDE 規範，適用於中高壓電網中的 EEG 系統
EPPE RX 符合 VDE-AR-N-4110 與 VDE-AR-N-4120 標準，因此特別適合用於中壓與高壓電網中 EEG 系統的監測與合規性監控。
EPPE RX 的應用範例：

1. 依據 EN 50160 進行電能品質監測
2. 能源資料與負載曲線記錄
3. 能源消耗最佳化
4. 作為暫態記錄器進行詳細故障分析
5. 電網振盪的偵測與記錄
6. 合閘與分閘過程的記錄
7. 閃變（Flicker）與諧波量測
8. 再生能源發電系統的監測與分析
9. 電網最佳化
10. 故障定位
11. 關鍵負載的監控

EPPE RX 產品簡介
EPPE RX 是一款高精度電力品質分析儀，能全面監測各項網路參數，以確保其符合現行的品質標準。
快速故障定位： 藉由內建的瞬態（Transient）與均方根（RMS）故障記錄器，能快速且可靠地找出系統干擾與擾動的原因。
強大的儲存能力： 配備 32 GB 內部記憶體，支援長時間的複雜量測任務。
卓越的處理效能： 強大的處理器可提供每通道高達 200 kHz 的採樣率。
高度靈活性： 所有功能與記錄參數皆可透過軟體進行自由配置與設定。



EPPE RX - Power Quality Analyzer and fault recorder for DIN rail mounting
All-in-one power quality meter, power meter, power quality data logger and fault recorder
The EPPE RX is a compact and powerful class A power quality analyzer that also serves as a power meter, power quality logger and fault recorder. With its 8-channel measuring function, it measures 4 voltages up to 1000 V (L-L) and 4 currents up to 10/100 A with a fast sampling rate of 200 kHz and an outstanding precision of 0.05%.
The current measurement is carried out via through-type transformers, which allow the device to be installed quickly and easily in existing circuits without additional terminal points.
EPPE Benefits
Optimize your energy quality with precise measurements, reliable software and the highest safety standards. Our solutions help you to identify sources of interference, reduce energy costs and ensure compliance with international standards - flexible, user-friendly and future-proof.
VDE-compliant and ideal for EEG systems in the medium and high-voltage grid
The EPPE RX conforms to VDE-AR-N-4110 and VDE-AR-N-4120, which makes it ideal for monitoring and compliance monitoring of EEG systems in the medium and high-voltage grid.
Application examples for EPPE RX:

1. Energy quality monitoring in accordance with EN 50160
2. Recording of energy data and load profiles
3. Energy consumption optimization
4. Transient recorder for detailed fault analyses
5. Detection and recording of grid oscillations
6. Recording of switch-on and switch-off processes
7. Measurement of flicker and harmonics
8. Monitoring and analysis of renewable generation plants
9. Grid optimization
10. Fault localization
11. Monitoring of critical loads

General description
EPPE RX is a high-accuracy power quality analyser which comprehensively monitors network parameters for compliance with valid quality standards. With the built-in transient and RMS fault recorders the causes of system disturbances and perturbations can be localised quickly and reliably. The 32 GB internal data memory also allows complex measurements over long periods of time. The powerful processors can provide a sampling rate of 200 kHz per channel. All functions and recording parameters are freely configurable in the software.
