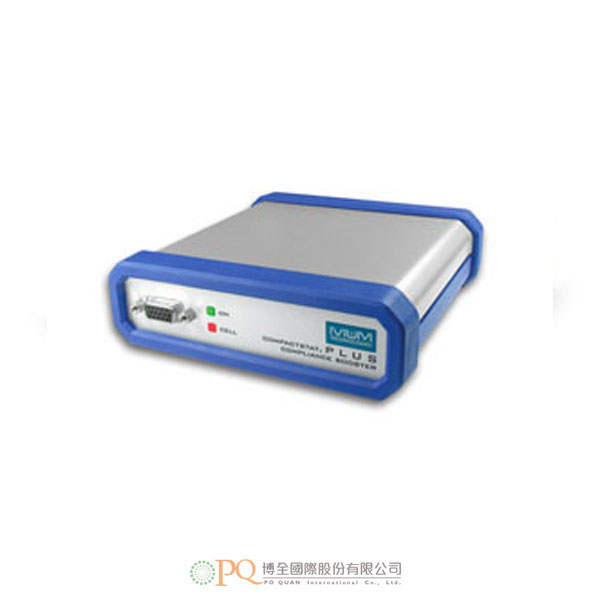

外接式 CompactStat 增幅器

External CompactStat boosters 型號:Plus module / Plus II module
  • Plus II module (±800mA/±10V)
  • Plus module (±250mA/±20V)
  • 產品說明

    Plus 系列模組可增加 CompactStat 的功率。只需連接電纜至 CompactStat 前方即可。當CompactStat電化學工作站和 Plus 模組的組合,即構成了 CompactStat Plus。
    請注意 : Plus 模組,僅適用於CompactStat 機型。

    Plus 模組有兩種型號:
    • Plus: ±250mA@±20V
    • Plus II:±800mA@±8V/±500mA@±10V
    Plus 模組是一個獨立的模組,專門用來提升 CompactStat 可用功率。不過,Plus / Plus II的模組化設計仍可讓 CompactStat 獨立操作,因此不會失去任何可攜式意義!
    不過,基於其功率需求,CompactStat Plus 需要連接一般市電電源。

    還有一個重點,CompactStat Plus 具備獨立 CompactStat 的所有功能和精確度,但增加了 100 mA 的電流範圍。

    型號比較
    系統性能 Plus 模組 (±250mA/±20V)   Plus II 模組 (±800mA/±10V)
    合規電流 ±250mA  ±800mA
    最大合規電壓 ±20V   ±10V
    最大施加電壓   ±20V  ±10V
    電流範圍 ±10nA ~ ±100mA  ±10nA至 ±1A


  • The Plus range of modules increase the power of the CompactStat. The simply connect in front of the CompactStat in-line with the cell cable. The combination of the potentiostat and a Plus module form the CompactStatPlus. In order to operate a Plus-module, a CompactStat is required.

    The Plus-module is available in two models:
    • Plus: ±250mA@±20V
    • Plus II: ±800mA@±8V/±500mA@±10V
    The Plus-module is a separate module that is designed to increase the power capacity of the CompactStat. This will allow the CompactStat to be used with full potentiostat power. The modularity of the Plus-module still allows the CompactStat to be used separately, thus not losing any of its portable applications! Because of its power requirements the CompactStatPlus needs a power adapter that connects to the grid.

    The CompactStatPlus has all the same features and accuracy of the separate CompactStat, but adds the 100 mA current range.

    Model comparison
    System performance Plus module (±250mA/±20V)   Plus II module (±800mA/±10V)
    Current compliance ±250mA  ±800mA
    Maximum compliance voltage ±20V   ±10V
    Maximum applied voltage ±20V  ±10V
    Current ranges ±10nA ~ ±100mA  ±10nA至 ±1A
