窯爐高溫紅外線探測器
Furnace inspection IR solution 型號：Calcifir RXF-
Calcifir RXF 技術以紅外熱像儀為基礎，可通過火焰精確測量溫度。
在火勢猛烈的情況下，當看不到火焰內的任何東西時，Calcifir RXF 能夠忽略火焰的光譜範圍，穿過火焰並提供準確的溫度測量值。
Calcifir RXF 的組成包括一個特殊外殼，可通過壓縮空氣承受高溫，且無需裝置任何其它外部組件，例如熱電偶。這種解決方案在熱影像技術方面處於領先地位。
Redlook 相機 即時警報 整合 防爆認證 人工智慧分析 Modbus, OPC, Hot Relay Rest API, Cloud Services, IoT II 3G Ex ec IIC T4 Gc 認證：
EMC EN 61326:2013 Ingress Protection IP66 (EN 60529) ATEX II 3G Ex ec IIC T4 Gc EN 60079-0:2012 + A11:2013; EN 60079-7:2015
Calcifir RXF 的性能使 RedLook 能夠進行詳盡的監控和即時警報。
它具有高度的通用性，可以在需要監控的區域內配置多個感興趣區域 (RoI)。
RedLook 可以為每個已配置的 RoI 指定功能，對各項設施進行全面、安全的監控。 -
FPA 320 x 256 px Pixel Pitch 17 μm NETD <50mK @ +30ºC Lenses Boroscopic Lens Zoom Digital Zoom Accuracy ± 20ºC or 4% WIG (from 400ºC to 1500ºC) Data Protocol GigE 9 Hz / 25 Hz Power <3 watts; PoE (power over ethernet) 9v-48v Weight 4,5 kg Size 177 x 179 x 370 mm Operating Temp. Range -10ºC to +50ºC Storage Temp. Range -40ºC to +71ºC -

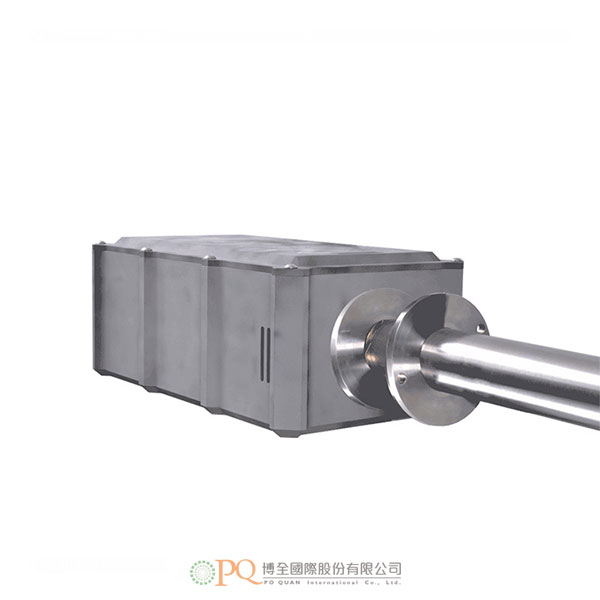

Calcifir RXF technology is based on an infrared camera prepared to accurately measure temperatures through flames.
In situations of intense fire, when nothing beyond the flames can be seen, Calcifir RXF is able to ignore the spectral range of the flame, passing through and providing an accurate temperature measurement.
Calcifir RXF’s assembly consists on a housing prepared to withstand high temperatures using compressed air. This solution is leading edge on thermography technology. No need of any external equipment such as thermocouples.
Redlook Camera Real Time Alarms Integration ATEX Certification AI Analytics Modbus, OPC, Hot Relay Rest API, Cloud Services, IoT II 3G Ex ec IIC T4 Gc Calcifir RXF Certifications
EMC EN 61326:2013 ATEX IP66 (EN 60529) IECEX II 3G Ex ec IIC T4 Gc EN 60079-0:2012 + A11:2013; EN 60079-7:2015 Calcifir RXF performance lets RedLook enable exhaustive monitoring and real-time alerting.
It is highly versatile, allowing to configure several Regions of Interest (RoI) within the area to be monitored.
RedLook can assign a functionality to each configured RoI, granting a total and safe surveillance of the installation. -
FPA 320 x 256 px Pixel Pitch 17 μm NETD <50mK @ +30ºC Lenses Boroscopic Lens Zoom Digital Zoom Accuracy ± 20ºC or 4% WIG (from 400ºC to 1500ºC) Data Protocol GigE 9 Hz / 25 Hz Power <3 watts; PoE (power over ethernet) 9v-48v Weight 4,5 kg Size 177 x 179 x 370 mm Operating Temp. Range -10ºC to +50ºC Storage Temp. Range -40ºC to +71ºC
