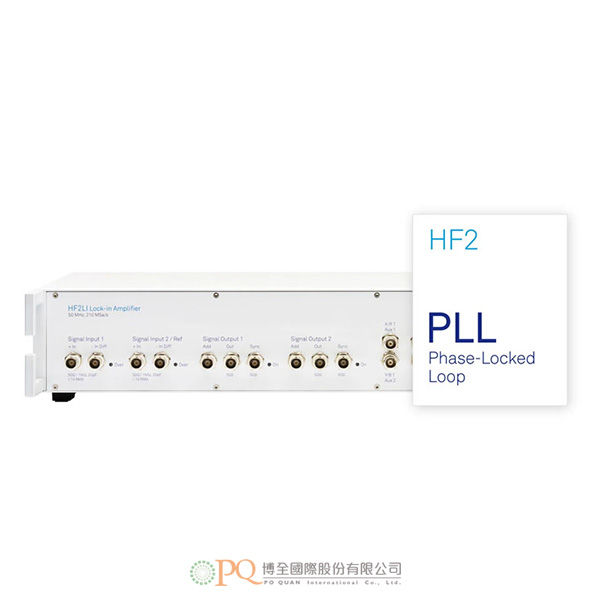

50 MHz 鎖相放大器—可配置2 個鎖相環

簡介
這款功能強大的儀器整合了兩個50 MHz 的鎖相環和兩個獨立的50 MHz 鎖相放大器單元。參數可完全配置的PLL 能準確地追蹤頻率，而鎖相放大器則提供了一流的信號檢測。
HF2PLL 鎖相環是包含以下儀器和選配件

• HF2LI 鎖相放大器
• HF2LI-PLL 升級選配件
• HF2LI-PID 升級選配件

應用

• 原子力顯微鏡(AFM)
• 掃描隧道顯微鏡(STM)
• 近場掃描光學顯微鏡(SNOM、NSOM)
• 微機電系統(MEMS)
• 諧振器/磁力計
• 頻率梳：定義時間基準
• 半導體表徵與測試

PLL 工作模式

HF 模擬信號輸入

HF 模擬信號輸出

解調器和參考信號

一般規格

Introduction
This powerful product integrates two 50 MHz phase-locked loops (PLLs) with two independent 50 MHz lock-in amplifiers. The PLLs offer fully configurable support for accurate frequency tracking, whereas the lock-in amplifiers provide best-in-class signal recovery.

The HF2PLL Phased-Locked Loop is a bundle consisting of the following products:

• HF2LI Lock-in Amplifier
• HF2LI-PLL option
• HF2LI-PID option

Applications

• Atomic force microscopy (AFM)
• Scanning tunneling microscopy (STM)
• Near-field scanning optical microscopy (SNOM, NSOM)
• Micro-electromechanical systems (MEMS)
• Resonators and magnetometers
• Frequency combs: time reference definition
• Semiconductor characterization and testing
