SENSIA > 手持式光學氣體成像（OGI）相機

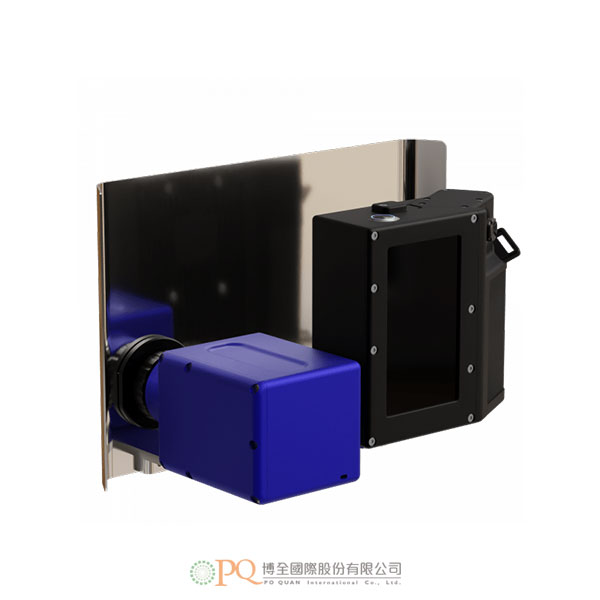

Caroline-RX_PQ

高溫紅外線熱影像檢測相機

High-Temp IR inspection 型號：Calcifir RX
Calcifir RX Ex 技術以手持式紅外線熱像儀為基礎，可通過火焰精確測量溫度。該相機是監控各種加熱器、熔爐、鍋爐和許多其它公用事業的理想之選。通過整合 Redlook Handheld功能，使得Calcifir RX 成為業界內性能最佳和提高效率的指標性工具。
加入洽詢
產品特點 產品規格 Features Specifications

  • Calcifir RX Ex technology is based on an hand held infrared camera prepared to accurately measure temperatures through flames. This cameras is ideal for monitoring all kinds of heaters, furnaces, boilers, and many other utility industries. With Redlook Handheld integrated, Calcifir RX becomes key a tool for performance optimisation and efficiency in the industry.



    Calcifir RX for furnaces inspection



    Calcifir RX  Certifications



    EMC EN 61326：2013
    Ingress Protection IP65 （EN 60529：2018）
    ATEX ATEX Zone II (EN 60079:2013)
  • FPA Cooled 320 x 256 px
    Pixel Pitch 30 μm
    NETD <15mK @ +30ºC
    Lenses Under demand. From 5 mm to 150 mm
    Accuracy
    ± 1ºC or 1% WIG (from 50ºC to 500ºC)
    ± 2ºC or 2% WIG (from 500ºC to 1500ºC)
    Memory Storage SD card up to 256 GB
    Autonomy 3 x 3 hr
    Display TFT LCD panel 5” HD
    Weight 3,4 kg
    Size 220 x 150 x 170 mm
    Operating Temp. Range -10ºC to +50ºC
    Storage Temp. Range -40ºC to +71ºC
