高功率增幅器

High power boosters 型號:High power boosters
  • 可提供高達 100A的電流。
  • 可提供高達 100V 的電壓。

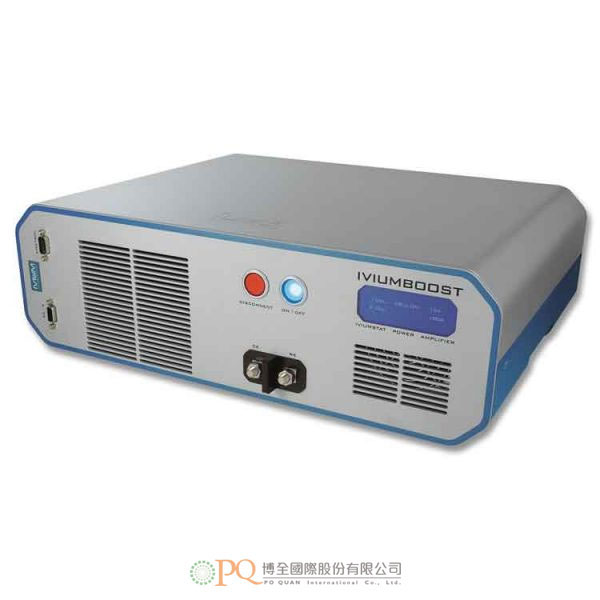

  • IviumBoost 系列儀器是功率增幅器,旨在增加 Ivium 恒電位/恆電流/ZRA 的電位和/或電流。增幅器與電纜相互連接在 P/G 前面。操作設定完全整合於 IviumSoft 中。

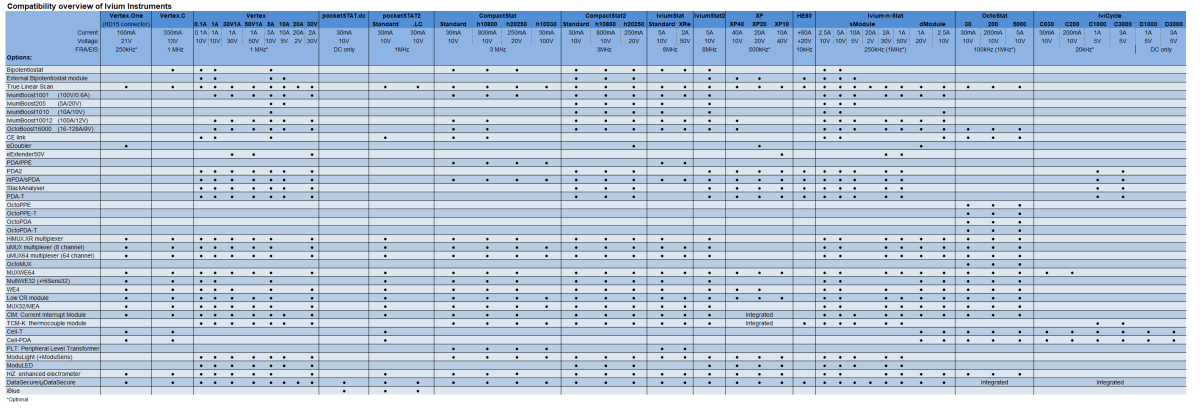

    若要檢查特定 IviumBoost 是否與您指定的儀器相容,請查看我們以下的相容性表。

    IviumBoost 是一個單獨的外部裝置,具有完整的恆電位/恒電流/ZRA分析儀的功能。它可以在 Ivium 恒電位儀的初始訂單中購買,但當然也可以在以後訂購。例如,當您的研究重點轉向更高的功率要求時,IviumBoost 將是增強 Ivium 恒電位儀功能的理想選擇。
  • 系統性能 IviumBoost10012
    (100A/12V)
    IviumBoost1010
    (10V/10A)
     IviumBoost205
     (20V/5A)
    IviumBoost1001
    (100V/0.6A)
    電流合規性  ±100A  ±10A  ±5A  ±0.6A
    最大合規電壓 ±12V  ±10V  ±20V ±100V
    最大施加電壓  ±10V ±10V  ±20V ±100V
    恒電位儀
    電流範圍 ±10A和 ±100A 透過控制恒電位器來定義 透過控制恒電位器來定義 透過控制恒電位器來定義
    環境
    電源要求 100-240V, 50-60Hz, 1500W - - -
     尺寸(寬 x 深 x 高)  47 x 36 x 14cm  26 x 33 x 12cm 26 x 33 x 12cm 26 x 33 x 12cm
    重量 13kg 5.7kg 5.7kg 5.7kg
  • The IviumBoost series of instruments are power boosters that have been designed to increase the potential and/or current of Ivium potentiostat/galvanostat/ZRAs. The booster is connected in front of the P/G in-line with the cell cable. The operation is fully integrated in the IviumSoft.

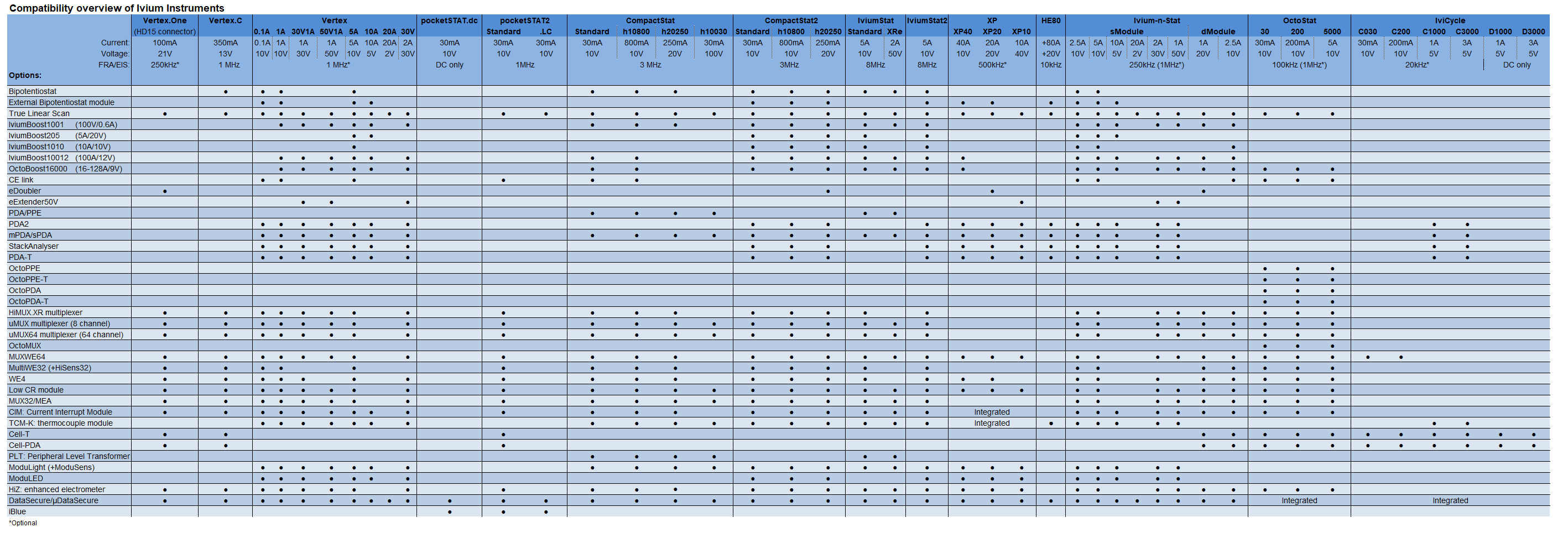

    To check if a particular IviumBoost is compatible with your designated instrument, check the compatibility table on our Support page.

    The IviumBoost is a separate external instrument and has full potentiostat-galvanostat-ZRA capability. It can be purchased at the initial order of your Ivium potentiostat, but can of course also be ordered at a later time. For example when the emphasis of your research shifts to higher power requirements, an IviumBoost will be ideal to enhance the capability of your Ivium potentiostat.


  • System performance IviumBoost10012
    (100A/12V)
    IviumBoost1010
    (10V/10A)
     IviumBoost205
     (20V/5A)
    IviumBoost1001
    (100V/0.6A)
    Current compliance  ±100A  ±10A  ±5A  ±0.6A
    Maximum compliance voltage ±12V  ±10V  ±20V ±100V
    Maximum applied voltage ±10V ±10V  ±20V ±100V
    Potentiostat
    Current ranges ±10A and ±100A Defined by controlling potentiostat Defined by controlling potentiostat Defined by controlling potentiostat
    Environment
    Power requirements 100-240V, 50-60Hz, 1500W - - -
     Size (w x d x h)  47 x 36 x 14cm  26 x 33 x 12cm 26 x 33 x 12cm 26 x 33 x 12cm
    Weight 13kg 5.7kg 5.7kg 5.7kg
