電阻量測

斷路器電阻量測

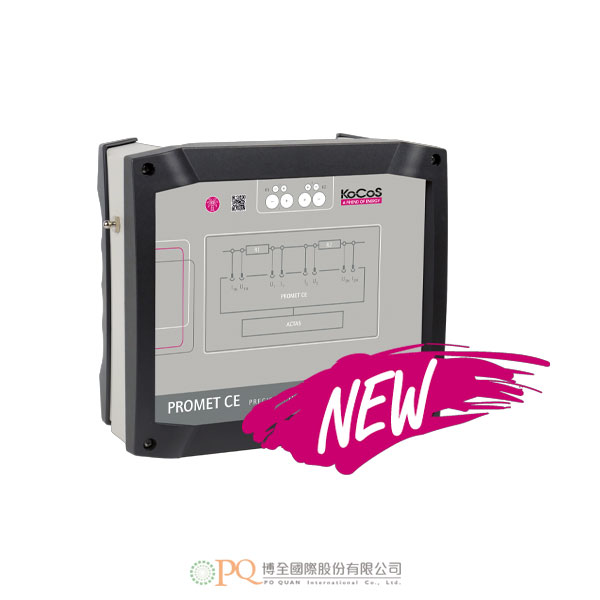

PROMET CE 為 ACTAS C 開關設備測試系統的延伸模組，結合了最高等級的量測精度與自動化測試序列的整合能力。
PROMET CE 可提供最高達 200 A 的恆定測試電流，可在接近實際運轉條件下，精確量測電氣電阻，並可靠地評估接點行為。

 整合於開關設備測試系統中的電阻量測
PROMET CE 由 ACTAS 系統直接供電並控制，確保操作簡單，無需額外的控制元件或外接電源。所有測試參數皆於 ACTAS 測試軟體中設定，量測結果則會自動傳送至測試報告中。

• 整合於 ACTAS C 開關設備測試系統
• 最高 200 A 的恆定測試電流，用於精確量測電阻並準確評估接點性能
• 單次測試可同時量測最多 12 個主接點
• 單一測試序列即可完成完整的開關設備測試，無需重新接線
• 透過 ACTAS 軟體執行自動化測試序列，並完成完整文件化
• 透過系統直接供電，提高測試效率
• 微歐姆與毫歐姆量測範圍內的高精度

應用領域－在接近實際運轉條件下量測電阻
PROMET CE 具備最高 200 A 的可變測試電流，涵蓋廣泛的應用範圍。高度穩定的電流源可確保恆定的量測條件，即使在微歐姆與毫歐姆範圍內，也能可靠地進行電阻量測，為診斷分析提供高精度的電阻數據。
在動態開關測試中，PROMET CE 的優勢尤為明顯：
可在接近實際運轉條件下，精確量測並比較接點電阻，這是評估現代開關設備狀態的重要基礎。

透過接點電阻量測進行斷路器狀態評估
高精度的接點電阻量測是評估開關設備狀態的重要指標。PROMET CE 可用於偵測接點行為中的關鍵變化。

型式測試與出廠驗收測試－可靠的電阻量測數據
PROMET CE 可在開關設備的研發與生產階段中，提供型式測試與工廠最終檢驗所需的量測數據，確保所有元件符合品質與安全標準。


一般說明
高精度歐姆計，具備最高 200 A 的可變測試電流。兩組電流輸出與兩組電壓量測輸入，可於兩個量測點同時進行電阻量測。搭配 ACTAS 測試系統，可針對每極 2 個主接點室進行靜態與動態主接點電阻量測。


電流源
輸出數量	2
測試電流	5…200 ADC
輸出電壓	2,5 VDC
可調整步進值	1 A
電壓量測
輸入數量	2
量測範圍
電流	100 A, 200 A
電壓	20 mV, 200 mV, 2 V
電阻
量測範圍	最高 250 mΩ
精度	0.2%
電源供應
供電電壓	透過混合纜線，經由「接點電阻量測」連接面板供電（含電源供應）
大電流連接
大電流插座	9 mm
安全插座	4 mm
外殼
手持式外殼	塑膠
Dimensions 尺寸
（寬 × 高 × 深）	(200 x 178 x 100) mm
重量	1.5 kg
顯示	無
LED 狀態指示	2顆
操作方式	透過 ACTAS 軟體
介面	M12（混合型）
環境條件
操作溫度	-10°C…50°C
儲存溫度	-20…60°C
相對濕度	5…95%，不凝結
防護等級	IP54
安全	DIN EN 61010-1 300 V~CAT II
產品標準	DIN EN 61326-1

量測功能
搭配 ACTAS 系統進行靜態與動態電阻量測（每極 2 個主接點）

Measure Resistance in a Circuit Breaker
Developed as an extension for the ACTAS C switchgear testing systems, it combines maximum measurement accuracy with integration into automated test sequences. The PROMET CE delivers constant test currents of up to 200 A, enabling a precise measure of electrical resistance and reliable assessment of contact behavior under realistic conditions.

Resistance measurement integrated into switchgear testing systems
The PROMET CE is powered and controlled directly via the ACTAS system. This guarantees uncomplicated handling without additional control elements or power supplies. All test parameters are set in the ACTAS test software and the results are transferred to the test reports.

• Integration into ACTAS C switchgear testing systems
• Constant test currents up to 200 A for a precise measure of resistance and accurate evaluation of contact performance
• Parallel testing of up to 12 main contacts in a single pass
• Complete switchgear testing without reconnecting in one test sequence
• Automated test sequences with complete documentation in the ACTAS software
• High efficiency thanks to direct system power supply
• Precision for reliable results in the micro- and milliohm range

Areas of Application – Measure Resistance Under Realistic Conditions
With a variably adjustable test current of up to 200 A, PROMET CE covers a wide range of applications. The highly stable current source enables constant measurement conditions, so that even resistances in the micro- and milliohm range can be reliably measured, providing a highly accurate resistance measure for diagnostic purposes.
PROMET CE really shows its strength when used with dynamic switching tests: Contact resistances can be precisely measured and compared under realistic operating conditions. This is an essential basis for assessing the condition of modern switching devices.

Condition Assessment of Circuit Breakers by Measuring Contact Resistance
The accurate measurement of contact resistances is a key indicator of the condition of switchgear. PROMET CE can be used to detect critical changes in contact behavior.

Type Testing and Factory Acceptance Tests – Reliable Measure of Resistance Data
PROMET CE provides measurement data for type testing and final inspection at the factory during the development and production of switchgear. This ensures that all components meet quality and safety standards.


General description
High-precision ohm meter with a variably adjustable test current of up to 200 A. Two current outputs and two voltage measuring inputs enable simultaneous resistance measurement at two measuring points. In combination with an ACTAS test system, static and dynamic determination of the main contact resistances at 2 main contact chambers per pole is possible.


Current source
Outputs, number	2
Test current	5…200 ADC
Output voltage	2,5 VDC
Adjustable step value	1 A
Voltage measurement
Inputs	2
Measuring ranges
Current	100 A, 200 A
Voltage	20 mV, 200 mV, 2 V
Resistance
Range	up to 250 mΩ
Accuracy	0.2%
Power supply
Supply voltage	Via hybrid cable via “contact resistance measurement” connection panel including power supply
High-current connections
High-current sockets	9 mm
Safety sockets	4 mm
Housing
Hand-held housing	Plastic
Dimensions
(W x H x D)	(200 x 178 x 100) mm
Weight	1.5 kg
Screen	No
LED, status	2
Operation	Via ACTAS-Software
Interfaces	M12 (Hybrid)
Environment
Operating temperature	-10°C…50°C
Storage temperature	-20…60°C
Relative humidity	5…95%, non-condensing
Degree of protection	IP54
Safety	DIN EN 61010-1 300 V~CAT II
Product standard	DIN EN 61326-1

Measurement functions
Static and dynamic resistance measurement with ACTAS systems (2 main contacts per pole)
