電池監控系統

DV Power 的電池監控系統 MB100 是一款專為24小時全天候監控固定電池系統而設計的電池監控系統。

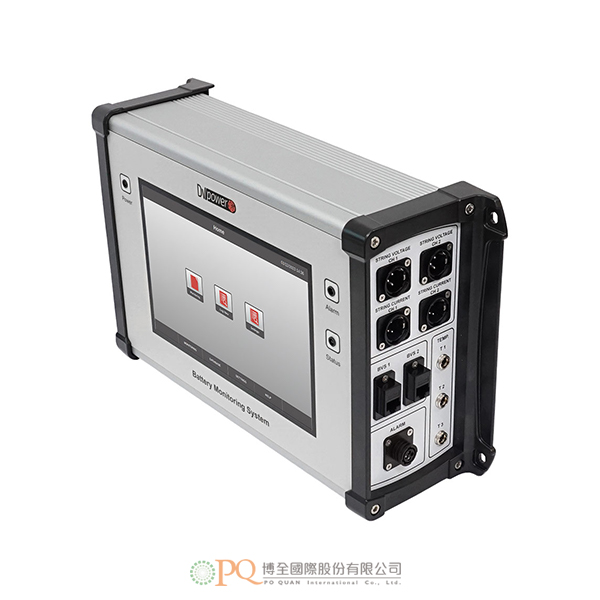

該系統由一個壁掛式控制單元和安裝在電池單元上的模組組成。根據所使用的模組類型，連接方式為 1 個模組連接 1 個電池單元或 1 個模組連接 4 個電池單元。

可同時監控兩組並聯電池組。即時數據可在控制單元上的 10 英寸顯示器上查看。電池監控系統允許用戶使用提供的軟體應用程式將測量數據下載到 PC。下載的數據可保存到數據庫中。

每個監測參數之設定可透過控制單元上的顯示器或 PC 軟體進行配置。用戶可為每個測量參數輸入警報閥值。若任何測量值超過限值，系統將透過用戶在設定中輸入的電子郵件地址向用戶發送通知。

MB100 可測量以下參數：

• 串聯電壓
• 串聯電流
• 電池電壓
• 電池電流
• 電池溫度
• 環境溫度
• 電池間連接電壓 – 使用 CVM 模組時

DV Power’s Battery Monitoring System MB100 is a battery monitoring system designed for 24/7 monitoring of stationary battery systems.

The system consists of a wall-mounted control unit and modules which are mounted on the battery cells. Depending on the type of modules used, the connection is 1 module per one cell or 1 module per 4 cells.

Two parallel battery strings can be monitored at the same time. Real time data can be viewed on the 10′ monitor on the control unit. The Battery Monitoring System enables the user to download the measured data to a PC using the provided software application. The downloaded data can be saved  in a database.

The settings for each monitoring session can be set up using either the display on the control unit or using the PC software. The user can enter alarm values for each of the measured parameters. If any of the measurements exceed the limits values the user wil be notified via email which they have entered in the settings.

MB100 can measure the following parameters:

• String voltage
• String current
• Cell voltage
• Cell current
• Cell temperature
• Ambient temperature
• Intercell connection voltage – when using CVM modules
