手持式安規測試儀

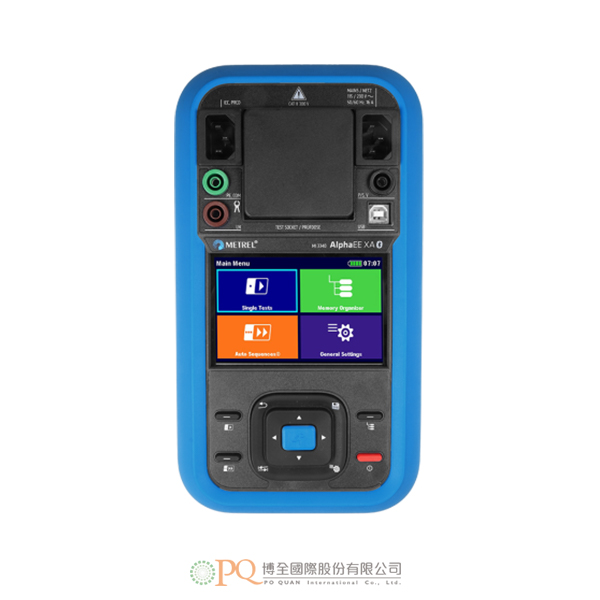

MI3340 AlphaEE XA手持式安規測試儀新的尖端AlphaEE XA採用創新的外殼設計，重新定義了電氣設備測試的便利性和舒適性。

該儀器專為強大性能和完美平衡而設計，確保了輕鬆的單手操作，使其成為專業人士在旅途中的不可或缺的工具。

用戶友好的界面提供了觸控螢幕或功能鍵的靈活性，以滿足您首選的操作方法。這種雙重選擇增強了可用性，無論是進行常規檢查還是詳細診斷，都能確保無縫體驗。

AlphaEE XA的設計考慮到了服務組織，擁有專門的測量功能，可滿足廣泛的應用需求。它提供定期測試和維修後測試，具有預定義的自動序列和現場維修的單次測量，提供無與倫比的多功能性。

AlphaEE XA以其無與倫比的便利性、先進的功能和卓越的性能，推動了電氣設備測試的未來，所有這些都封裝在一個時尚的、以用戶為中心的設計中。

測量功能：

• EN50678/EN50699。
• 目視檢查。
• 自動測試（連續性+絕緣電阻+替代洩漏）。
• 保護接地連續性200mA。
• 絕緣電阻（Riso、Riso-S）50V、100V，250V、500V。
• 保護導體電流（直接、剩餘、替代）。
• 接觸漏電流（直接、替代）。
• 浮動輸入產生的漏電流，PE電流（直接、剩餘）。
• 浮動輸入產生的漏電流，觸摸電流（直接）。
• 洩漏和功率（P、S、Q、PF、THDu、THDi、CosØ、I、U）。
• 點對點漏電流（直接）。
• 功率（P、S、Q、PF、THDu、THDi、CosØ、I、U）。
• PRCD測試，（2極、3極、K/Di（變阻器）、S（3-極），S+。
• PRCD測試（PE導線、開路導線、PE探頭）。
• RCD測試（A、AC、B、B+、F型）。
• IC-CPD測試（EV-RCD、PE導線）。
• 電壓，SELV/PELV。
• 插座測試。
• 極性/有源極性測試。

主要特點：

• 符合人體工學的外殼：我們的人體工學外殼專為單手操作而設計，為您帶來極致便利。
• 鋰離子電池：可實現長時間使用和快速充電。
• 預定義的AUTOSEQUENCE®：根據：EN 50678、EN 50699、EV電纜、P-RCD、帶浮動輸入的設備、音頻/視頻、信息和通信技術EN 62368-1。
• 絕緣電阻測試（50V、100V）：較低的測試電壓可保護敏感電子設備或裝置。
• IC-CPD：借助支持的兼容轉接器，輕鬆測試模式2和模式3電動汽車電纜。
• 有源極性測試：通過我們的有源極性檢測確保功能完美無瑕，該檢測旨在驗證需要電源電壓才能運行的設備，包括P-RCD開關、智能延長線和電動汽車充電電纜。
• 彩色觸控螢幕：為用戶提供快速概覽和輕鬆的參數調整，提高效率和用戶體驗。
• 自動連續性：自動啟動功能可快速有效地評估需要檢查的金屬部件數量較多的設備。
• 插座測試：插座測試功能使用戶能夠有效地對連接點進行故障排除。通過此功能，您可以驗證電源電壓和“L/N/PE”接線的完整性，確保可靠和準確的確認。
• 備用電源：備用電源測試（Commission regulation No 2023/826）。
• 支持PRCD測試：支持所有類型的PRCD，包括2極、3極、K/Di（變阻器）、S（3極）和PE探頭測試。
• BlackBox協議：BlackBox協議的主要目的是通過遠程應用程序執行單次測試和自動序列。
• PC SW Meter ES Manager：支持創建測試結構、用戶定義的AUTOSEQUENCE®、專業測試報告和數據傳輸以供存檔。
• aMESM Android軟件：支持二維碼掃描，並上傳預先準備好的用戶自定義AUTOSEQUENCE®。
• EVSE診斷測試。
• 鉗位電流（須加選A1472）。
• 功能檢查。

適用標準

低壓電氣設備安裝工程

• IEC/EN 61557 低壓配電系統（AC不超過 1,000 V，DC不超過 1,500 V）的電氣安全 - 保護措施的測試、測量或監測設備 - 系列。
• IEC/EN 61557 低壓配電系統（AC不超過 1,000 V，DC不超過 1,500 V）的電氣安全 - 保護措施的測試、測量或監測設備 - 相關部件。
• AS / NZ 3017 電氣安裝 – 驗證指南。

可攜式電器安全

• PAT 能力：便攜式電器安全測試。
• N 50699 電氣設備重複測試。
• EN 50678 電氣設備維修後防護措施有效性驗證的一般程序。
• AS / NZ 3760 電氣設備在用安全檢查和測試。
• VDE 0701 電氣設備維修、改裝後的檢查 - 定期。
• VDE 0702 電氣設備檢查 - 電氣安全的一般要求。
• NEN 3140 安全作業指南。
• IEC 62368-1:2023 音頻/視頻、信息和通信技術設備 - 第 1 部分：安全要求。
• IET COP 第 5 版，電氣設備在用檢查和測試。

對用戶的儀器安全

• IEC/EN 61010 測量、控制和實驗室用電氣設備的安全要求。

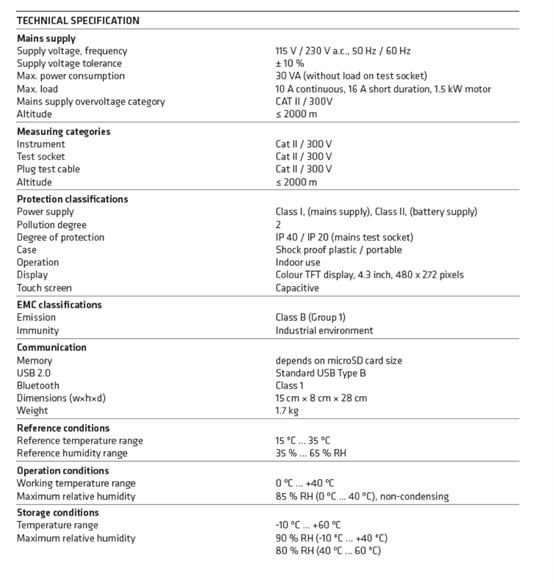

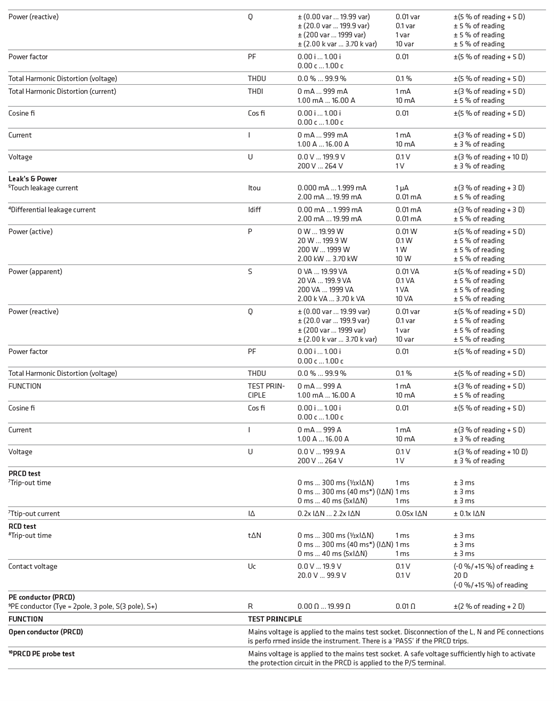

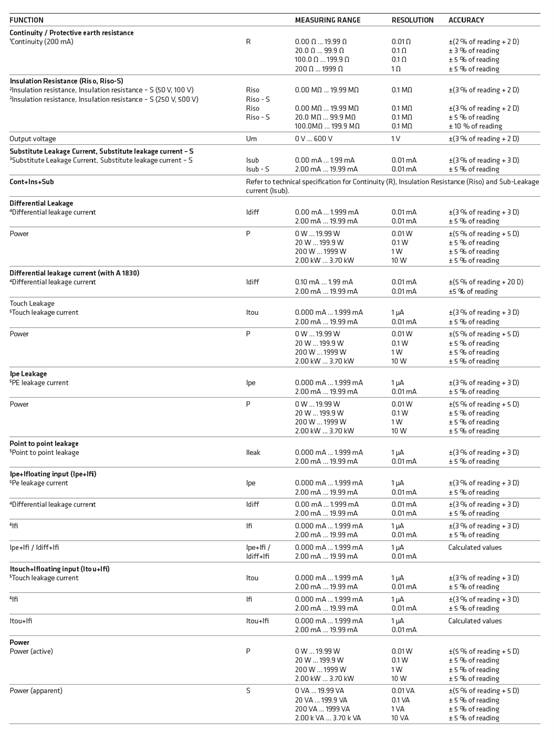

技術規格  ( 請擷取附件目錄 ) ， 中/英版本共用

The new cutting-edge AlphaEE XA, is designed with an innovative housing that redefines the ease and comfort of electrical equipment testing. The instrument is engineered for robust performance and perfect balance, the AlphaEE XA ensures effortless one-handed operation, making it an indispensable tool for professionals on the go. The user-friendly interface provides the flexibility of a touch screen or function keys catering to your preferred method of operation. This dual option enhances usability, ensuring a seamless experience whether you're conducting routine checks or detailed diagnostics.Designed with service organizations in mind, the AlphaEE XA boasts specialized measuring functions that cater to a wide range of applications. It offers both periodic testing and testing after repair with pre-defined AutoSequences and single measurements for on-the-spot servicing, providing unparalleled versatility. AlphaEE XA boosts the future of electrical equipment testing, with its unparalleled convenience, advanced

Measuring functions

• EN 50678 / EN 50699
• Visual inspections;
• Auto test (Continuity + Insulation resistance + Alternative leakage)
• Continuity of protective earth 200mA;
• Insulation Resistance (Riso, Riso-S) 50V, 100V, 250V, 500V;
• Protective conductor current (Direct, Residual, Alternative);
• Touch leakage current (Direct, Alternative);
• Leakage current produced by a floating input, PE current (Direct, Residual);
• Leakage current produced by a floating input, Touch current (Direct);
• Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U);
• Point to Point Leakage current (Direct)
• Power (P, S, Q, PF, THDu, THDi, CosØ, I, U);
• PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole)), S+;
• PRCD test (PE conductor, Open conductor, PE probe);
• RCD test (type A, AC, B, B+, F);
• IC-CPD test (EV-RCD, PE conductor);
• Voltage, SELV/PELV;
• Socket test;
• Polarity / Active polarity test;
• EVSE Diagnostic test;
• Clamp current;*( With optional A 1472 )
• Functional inspections.

Key features

• Ergonomic housing: Experience ultimate convenience with our ergonomic housing, designed for effortless single-handed operation.
• Li-Ion battery: Enjoy extended use and rapid recharging with Li-Ion battery, leveraging advanced Li-Ion technology for longer operation times and quicker charge cycles.
• Pre-defined AUTOSEQUENCE®s: According to: EN 50678, EN 50699, EV-Cables, P-RCDs, Devices with Floating inputs, Audio/video, information and communication technology EN 62368-1.
• Insulation resistance test (50V, 100V): Lower test voltages at insulation resistance tests make it easy to safely evaluate charging stations for e-bikes and other electric transportation devices.
• IC-CPD: Easily test Mode 2 and Mode 3 EV cables with the help of supported compatible adapters.
• Active polarity test: Ensure flawless functionality with our active polarity test, designed to verify devices requiring mains voltage for operation, including P-RCD switches, smart extension leads, and electric vehicle charging cables.
• Colour touch screen: Offers users a quick overview and effortless parameter adjustment, enhancing both efficiency and user experience.
• Auto Continuity: The Auto start feature enables a rapid and efficient assessment of devices with a larger number of metal parts that require inspection.
• Socket test: a socket test function empowers users to troubleshoot connection points effectively. With this feature, you can verify mains voltage, and the integrity of "L / N / PE" wiring, ensuring reliable and accurate confirmation.
• Standby power: Testing of Standby power (Commission regulation No 2023/826).
• Support for PRCD testing: Support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
• BlackBox protocol: The primary purpose of the Black Box protocol is to enable execution of Single tests and AutoSequences via remote applications.
• PC SW Metrel ES Manager: Enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
• aMESM Android SW: Enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.

Building LV Installation

• IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
• IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts
• AS / NZ 3017 Electrical installations – Verification guidelines

Portable appliances safety

• PAT Competences: Portable Appliances Safety Testing
• EN 50699 Recurrent Test of Electrical Equipment
• EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
• AS / NZ 3760 In-service safety inspection and testing of electrical equipment
• VDE 0701 Inspection after repair, modification of electrical appliances - periodic
• VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
• NEN 3140 Guidelines for safe working practices
• IEC 62368-1:2023 Audio/video, information and communication technology equipment - Part 1: Safety requirements
• IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment
