多通道功率增幅器

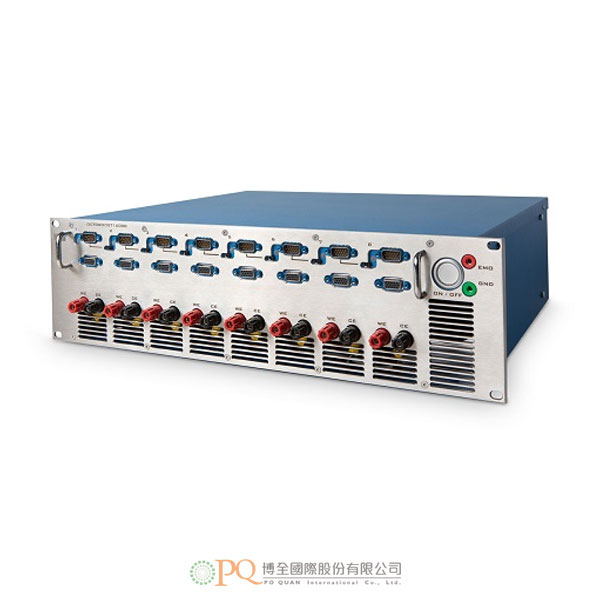

Multi-channel booster 型號:Multi-channel booster

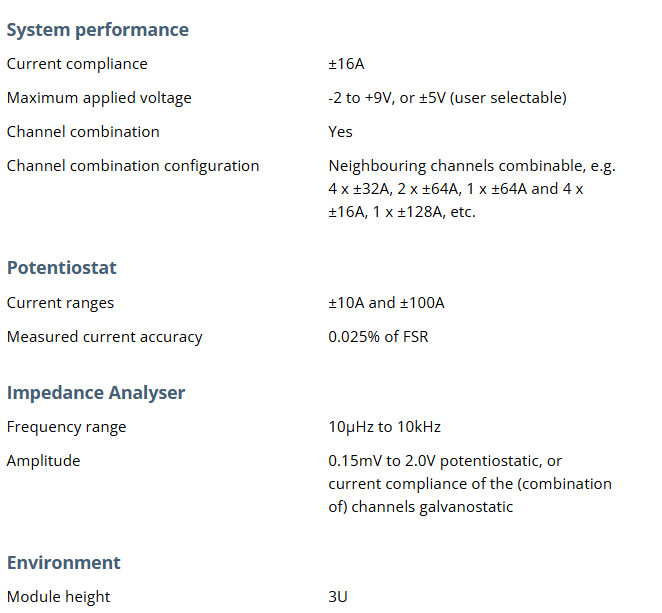

  • 每個通道:±16A/±5V(或-2~ +9V);FRA/EIS:10μHz~10kHz。
  • 增幅器可提供電流高達 ±128A(通道並聯使用)。
  • 19”機架安裝外殼。
  • 經濟實惠的高規格電化學測試系統。
  • 完整的解決方案
    OctoBoost16000 為 OctoStats 或 Ivium 單通道恒電位/恒電流儀提供靈活的大電流解決方案。 與 OctoStat 相結合,增幅器上的 16A 通道可以組合(只要通道相鄰),
    從而獲得最高 128A 的可變最大電流(例如 8 x ±16A、4 x ±32A、2 x ±64A、1 x ±64A 和 4 x ±16A、1 x 128A 等)。 多台單通道儀器也可進行此組態。與單通道儀器結合
    時,OctoBoost16000 可發揮增幅器的功能,電流最高可達 128A。

    安全性
    儀器的最大電流或電位可由操作者自定義。因此可以保護珍貴的樣品,防止不安全的情況發生。

    硬體
    電流範圍: 10A ~ 100A。

    軟體
    OctoStat/OctoBoost16000 可透過 Ivium 的軟體IviumSoft 控制。這款功能多樣且直觀的軟體可進行儀器控制、資料管理和分析等。OctoStat 也可以由 LabVIEWTM、C++、Delphi 等軟體控制。
    每台儀器的標準配備包括全套軟體。
    • 單獨控制各個通道。
    • 同時控制所有通道。
    • 同步啟動。
    • 不同頻道的數據可單獨或以單一圖表繪製。
  • Product description
    Complete solution

    The OctoBoost16000 offers a flexible high current solution for both the OctoStats or Ivium single channel instruments. In combination with an OctoStat, the 16A channels on the booster can be combined (as long as the channels are neighbouring) to give a variable max current up to 128A (e.g. 8 x ±16A, 4 x ±32A, 2 x ±64A, 1 x ±64A and 4 x ±16A, 1 x 128A, etc.). This configuration is also possible with multiple single-channel instruments. In combination with a single channel instrument, the OctoBoost16000 functions as a booster for currents up to 128A.

    Safety
    The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

    Hardware
    • Current range: 10A and 100A

    Software
    The OctoStat/OctoBoost16000 is controlled via Ivium’s own software, IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. The OctoStat can also be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of software is included as standard with each instrument.
    • Control of separate channels individually
    • All channels simultaneously
    • Synchronous start
    • Data from different channels plotted individually or in 1 single graph
