RDE-2 旋轉電極

RDE-2 Cell Stand 是一套旋轉電極實驗的旋轉系統。它的轉速可達 50-10,000 rpm，並具有可手動或遠端控制的整合式氣體吹掃功能。旋轉裝置可輕易升降至溶液中進行電化學實驗。

• 由 BASi® PC 控制的恒電位儀遠端控制攪拌和氣體吹掃
• 與其它恒電位儀搭配使用時可手動控制
• 小樣品容量 (10 - 15 mL)
• 可選的水套樣品槽
• 標準附加連接埠
• "快速連接”輸入氣體管路接頭
• 安裝式樣品槽頂部與 BASi® 固定式伏安電極相容
• 可輕鬆快速更換電極
• 低噪音電極接觸
• 優異的旋轉速度、加速和減速

• 旋轉速度：50-10,000 RPM
• 精確度： <1% (>1,000 RPM), <2% (<1,000 RPM)
• 進氣壓力： 5 psi
• 電源：100-240 VAC，50/60 Hz
• 尺寸：42 cm (16.5”) 高 x 18 cm (7”) 寬 x 23 cm (9”) 深
• 重量： 12  lbs

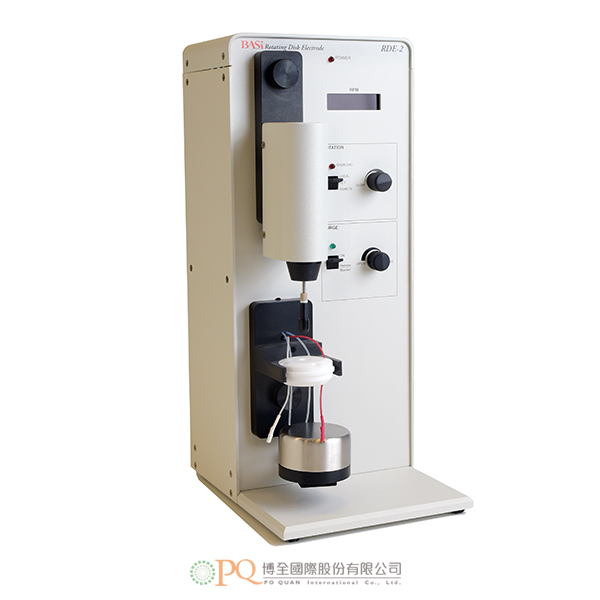

The RDE-2 Cell Stand is a rotator system for rotating disk electrode experiments. It is capable of 50-10,000 rpm rotation rates and has an integrated gas purge function that can be controlled manually or remotely. The rotator unit is easily raised and lowered into the solution for electrochemistry experiments.

• Remote control of stirring and gas purging by BASi® PC-controlled potentiostats
• Manual control when used with other potentiostats
• Small sample volume (10 - 15 mL)
• Optional water-jacketed cell vials
• Standard addition port
• "Quick-connect" input gas line connector
• Mounted cell top compatible with BASi® stationary voltammetry electrodes
• Easy and rapid exchange of electrodes
• Low-noise electrode contact
• Excellent rotation speed, acceleration and deceleration

• Rotation Range: 50-10,000 RPM
• Accuracy: <1% at >1,000 RPM, <2% at <1,000 RPM
• Inlet Gas Pressure: 5 psi
• Power: 100-240 VAC, 50/60 Hz
• Dimensions: 42 cm (16.5”) height x 18 cm (7”) width x 23 cm (9”) depth
• Weight: 12 lbs
